| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_048T07_9000004188_29183cztM0_level2.evt | modeM0/AS1A10_048T07_9000004188_29183cztM0_level2_quad_clean.evt |
| Size (bytes) | 362,378,880 | 71,686,080 |
| Size | 345.6 MB | 68.4 MB |
| Events in quadrant A | 2,327,273 | 471,521 |
| Events in quadrant B | 2,372,884 | 485,634 |
| Events in quadrant C | 2,759,977 | 465,200 |
| Events in quadrant D | 3,219,263 | 443,021 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 88 | 0 |
| B | 0 | 88 | 0 |
| C | 0 | 88 | 0 |
| D | 0 | 88 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9635 | 2 |
| B | 0 | 9795 | 1 |
| C | 0 | 11258 | 1 |
| D | 0 | 12500 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4343 | 81 | 1.865070% |
| B | 4343 | 112 | 2.578863% |
| C | 4343 | 118 | 2.717016% |
| D | 4343 | 237 | 5.457057% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

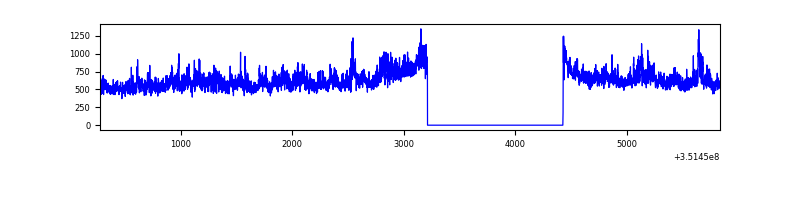

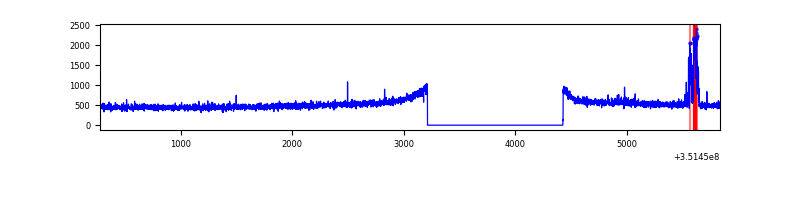

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 5558 | 4344 | 15 | 15 | 0.27% | 0.35% |  |
| B | 5558 | 4344 | 11 | 11 | 0.20% | 0.25% |  |
| C | 5558 | 4344 | 0 | 0 | 0.00% | 0.00% |  |
| D | 5558 | 4344 | 139 | 139 | 2.50% | 3.20% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 103332 | 880.0 | 576 | 565 | 116.8 |
| A | 13 | 254 | 8406 | 67.14 | 576 | 565 | 116.8 |
| A | 3 | 137 | 5628 | 43.35 | 576 | 565 | 116.8 |
| B | 0 | 183 | 79695 | 718.95 | 574 | 561 | 110.1 |
| B | 12 | 111 | 13430 | 116.92 | 574 | 561 | 110.1 |
| B | 5 | 255 | 13317 | 115.89 | 574 | 561 | 110.1 |
| C | 3 | 233 | 480215 | 3657.35 | 560 | 566 | 131.1 |
| C | 14 | 238 | 88273 | 668.77 | 560 | 566 | 131.1 |
| C | 2 | 114 | 10443 | 75.31 | 560 | 566 | 131.1 |
| D | 1 | 52 | 708083 | 5323.99 | 552 | 538 | 132.9 |
| D | 8 | 195 | 225727 | 1694.46 | 552 | 538 | 132.9 |
| D | 13 | 153 | 62712 | 467.83 | 552 | 538 | 132.9 |

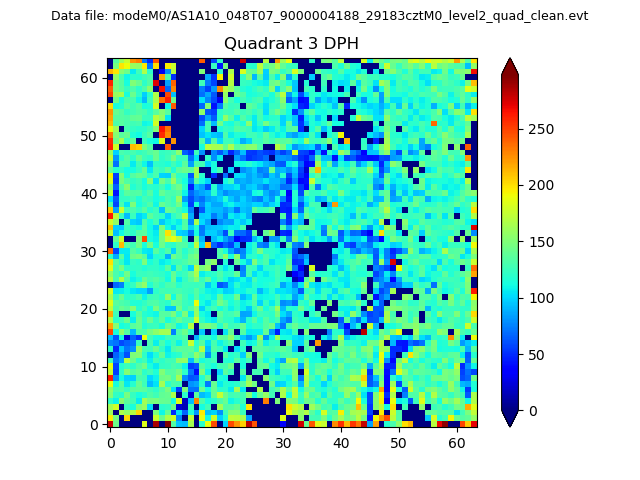

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

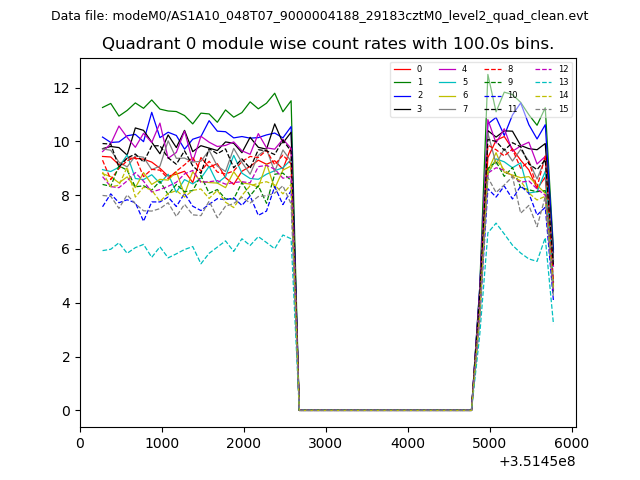

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

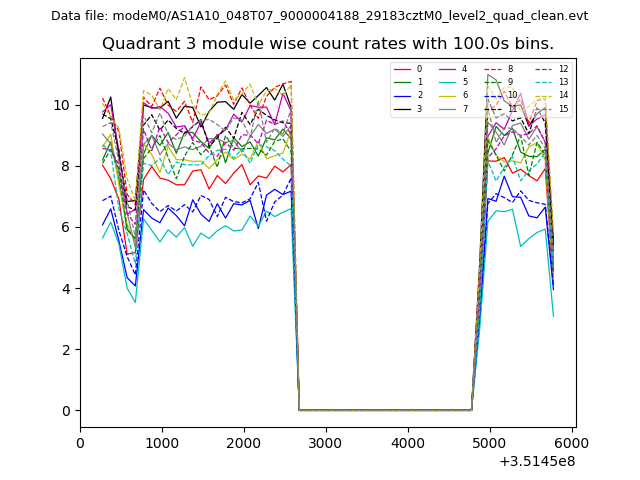

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

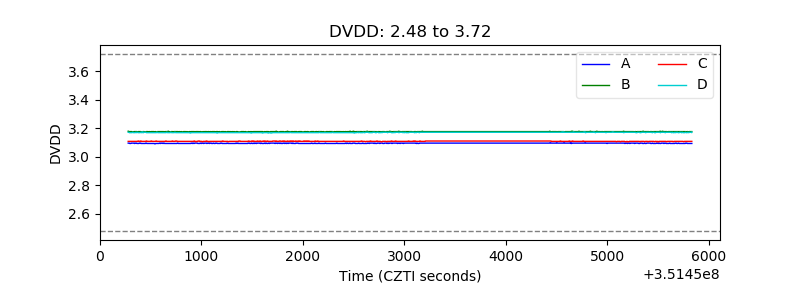

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

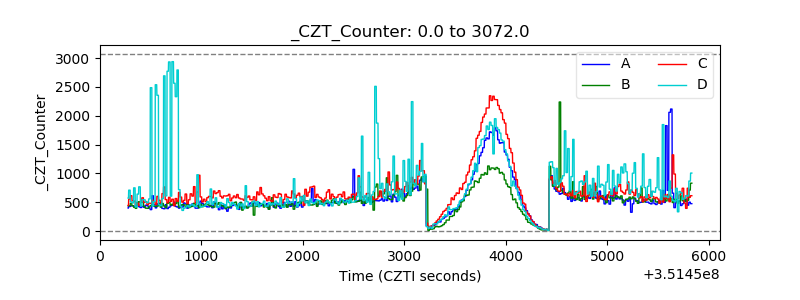

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

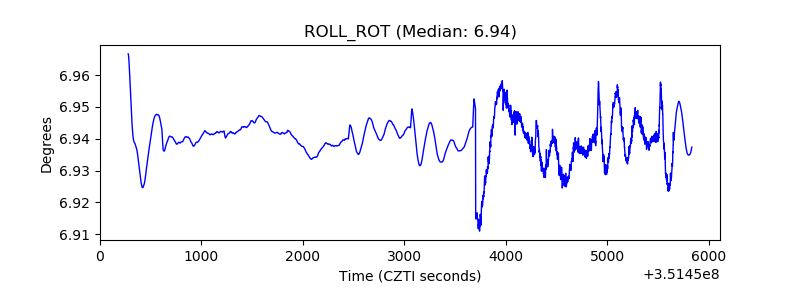

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
