| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_048T07_9000004188_29184cztM0_level2.evt | modeM0/AS1A10_048T07_9000004188_29184cztM0_level2_quad_clean.evt |
| Size (bytes) | 611,700,480 | 101,041,920 |
| Size | 583.4 MB | 96.4 MB |
| Events in quadrant A | 3,432,747 | 657,659 |
| Events in quadrant B | 3,550,814 | 678,597 |
| Events in quadrant C | 5,802,057 | 639,377 |
| Events in quadrant D | 5,289,206 | 619,820 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21 | 0 |
| B | 0 | 22 | 0 |
| C | 0 | 22 | 0 |
| D | 0 | 22 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14392 | 2 |
| B | 0 | 14737 | 2 |
| C | 0 | 22016 | 2 |
| D | 0 | 20316 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6666 | 80 | 1.200120% |
| B | 6666 | 143 | 2.145215% |
| C | 6666 | 438 | 6.570657% |
| D | 6665 | 330 | 4.951238% |

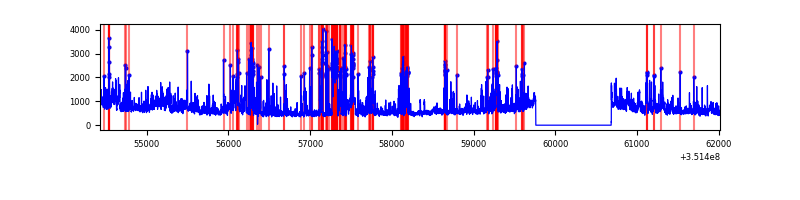

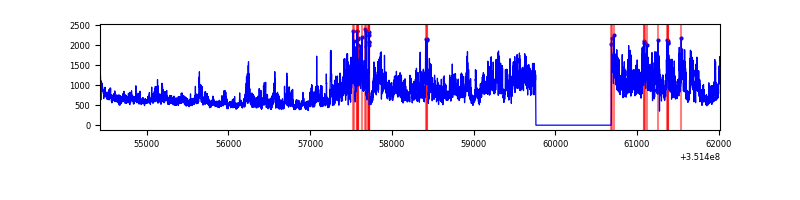

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7591 | 6667 | 15 | 15 | 0.20% | 0.22% |  |
| B | 7591 | 6667 | 12 | 12 | 0.16% | 0.18% |  |
| C | 7591 | 6667 | 32 | 32 | 0.42% | 0.48% |  |
| D | 7590 | 6666 | 235 | 235 | 3.10% | 3.53% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 120388 | 687.52 | 858 | 840 | 173.9 |
| A | 13 | 254 | 12235 | 65.53 | 858 | 840 | 173.9 |
| A | 3 | 137 | 8386 | 43.4 | 858 | 840 | 173.9 |
| B | 0 | 183 | 108437 | 657.12 | 859 | 841 | 163.7 |
| B | 5 | 255 | 27087 | 160.29 | 859 | 841 | 163.7 |
| B | 12 | 111 | 20298 | 118.83 | 859 | 841 | 163.7 |
| C | 3 | 233 | 2447531 | 12737.02 | 823 | 830 | 192.1 |
| C | 14 | 238 | 130613 | 675.62 | 823 | 830 | 192.1 |
| C | 2 | 114 | 15505 | 76.4 | 823 | 830 | 192.1 |
| D | 1 | 52 | 834173 | 4218.48 | 826 | 805 | 197.6 |
| D | 13 | 153 | 589038 | 2977.61 | 826 | 805 | 197.6 |
| D | 8 | 195 | 586090 | 2962.69 | 826 | 805 | 197.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

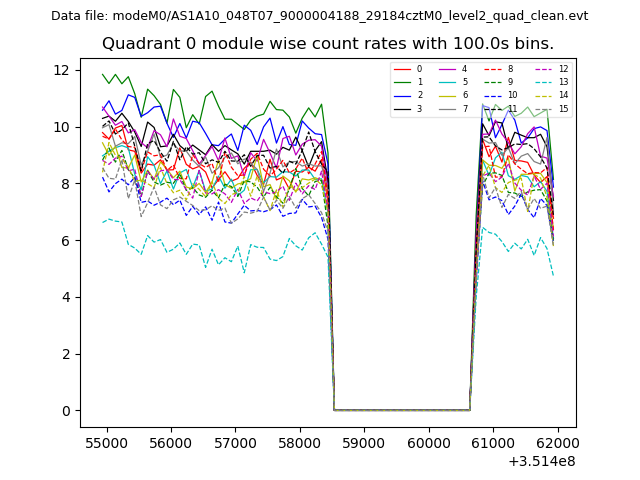

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

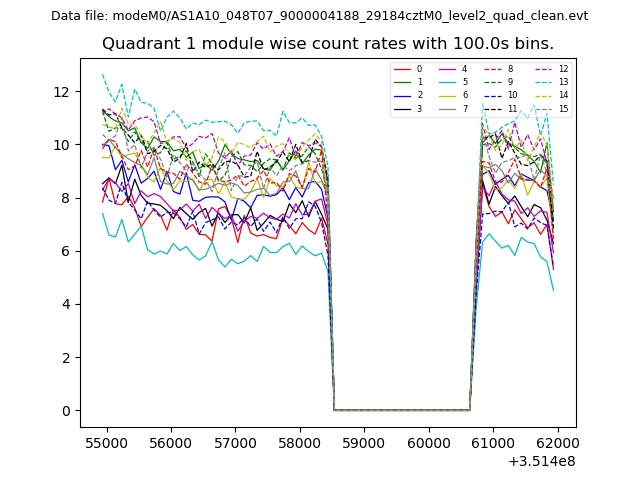

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

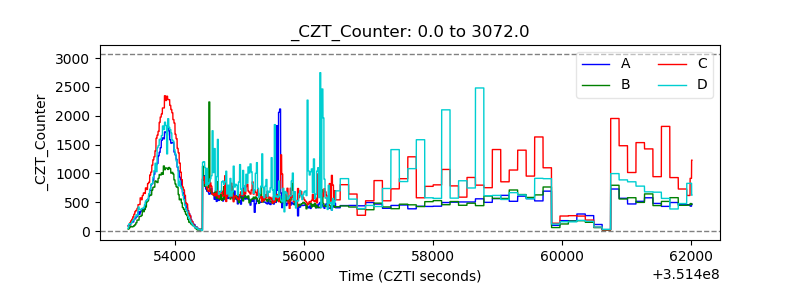

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

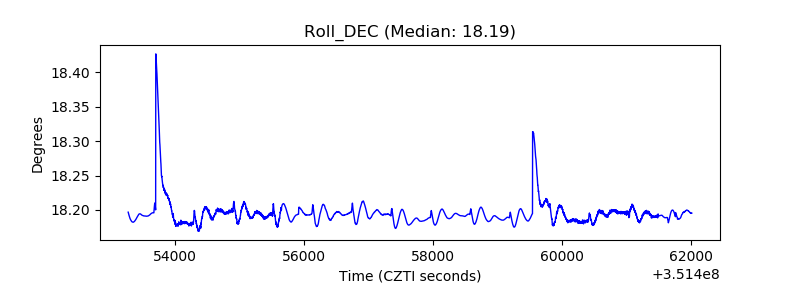

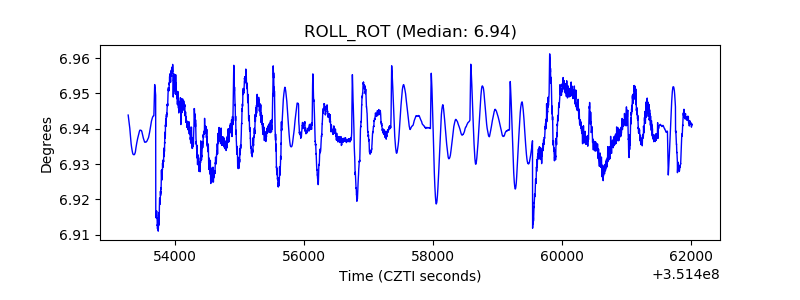

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

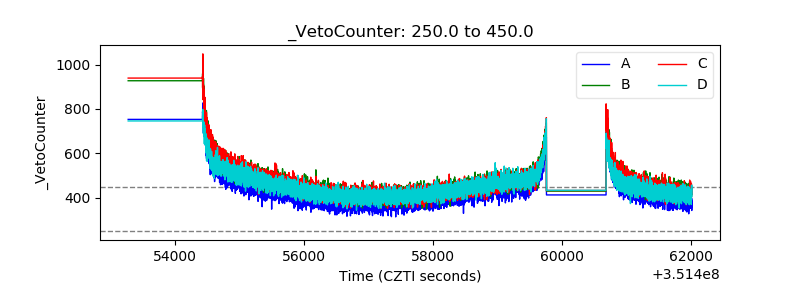

| Veto Counter |  |
