| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_048T07_9000004188_29194cztM0_level2.evt | modeM0/AS1A10_048T07_9000004188_29194cztM0_level2_quad_clean.evt |
| Size (bytes) | 660,003,840 | 65,194,560 |
| Size | 629.4 MB | 62.2 MB |
| Events in quadrant A | 3,481,338 | 398,410 |
| Events in quadrant B | 3,626,248 | 402,096 |
| Events in quadrant C | 7,001,972 | 368,822 |
| Events in quadrant D | 5,447,170 | 358,197 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14514 | 1 |
| B | 0 | 14935 | 1 |
| C | 0 | 25327 | 1 |
| D | 0 | 20847 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6392 | 60 | 0.938673% |
| B | 6392 | 66 | 1.032541% |
| C | 6393 | 732 | 11.450023% |
| D | 6393 | 450 | 7.038949% |

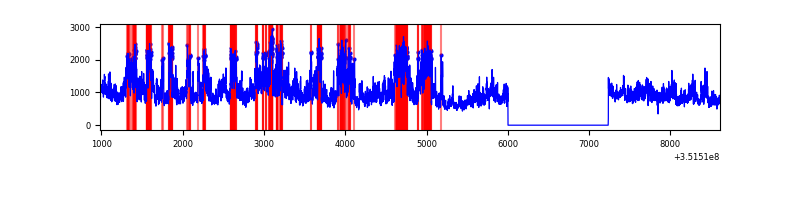

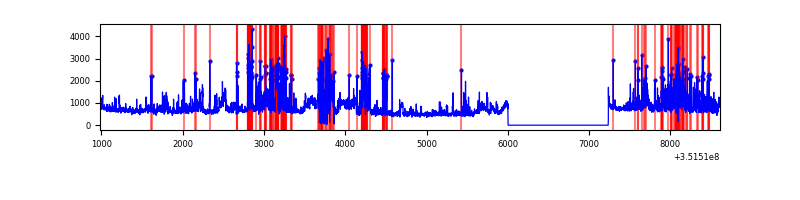

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7627 | 6393 | 1 | 1 | 0.01% | 0.02% |  |
| B | 7627 | 6393 | 6 | 6 | 0.08% | 0.09% |  |
| C | 7628 | 6394 | 328 | 328 | 4.30% | 5.13% |  |
| D | 7628 | 6394 | 252 | 252 | 3.30% | 3.94% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 12243 | 63.99 | 902 | 886 | 177.5 |
| A | 3 | 137 | 8151 | 40.94 | 902 | 886 | 177.5 |
| A | 0 | 226 | 7651 | 38.12 | 902 | 886 | 177.5 |
| B | 0 | 183 | 88408 | 524.88 | 887 | 869 | 166.8 |
| B | 0 | 229 | 36507 | 213.68 | 887 | 869 | 166.8 |
| B | 12 | 111 | 20002 | 114.72 | 887 | 869 | 166.8 |
| C | 3 | 233 | 3550165 | 18262.94 | 845 | 851 | 194.3 |
| C | 14 | 238 | 139358 | 712.69 | 845 | 851 | 194.3 |
| C | 2 | 114 | 14874 | 72.16 | 845 | 851 | 194.3 |
| D | 1 | 52 | 1355646 | 6714.84 | 849 | 829 | 201.8 |
| D | 8 | 195 | 609486 | 3016.67 | 849 | 829 | 201.8 |
| D | 13 | 153 | 133397 | 657.04 | 849 | 829 | 201.8 |

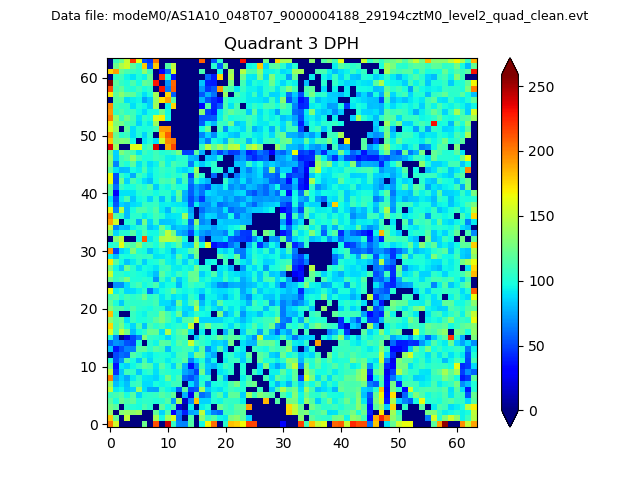

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

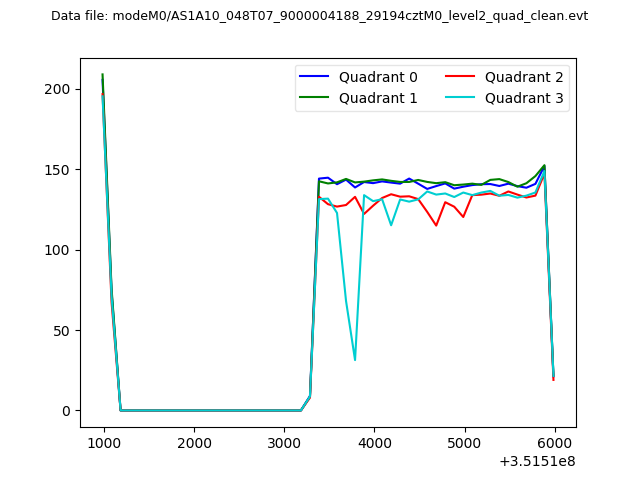

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |

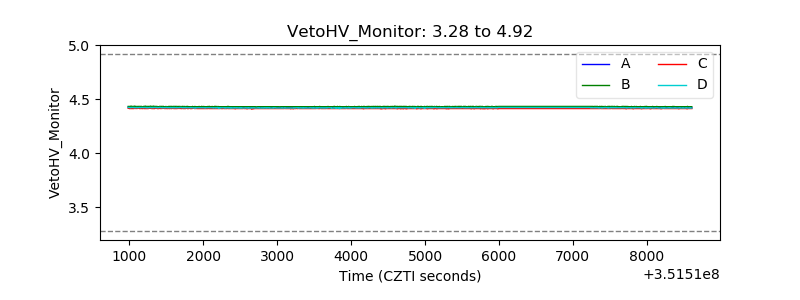

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

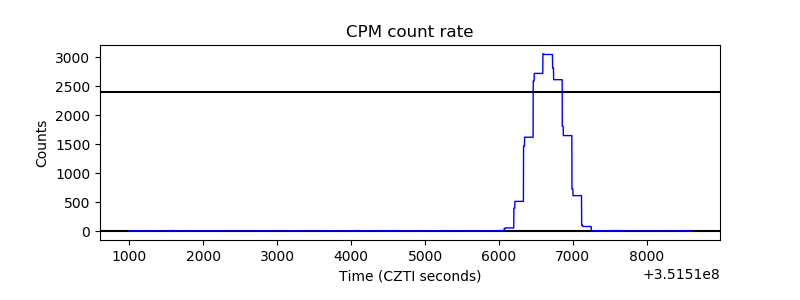

| _CPM_Rate |  |

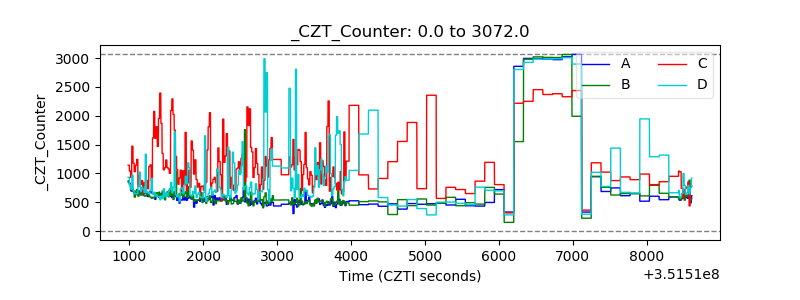

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
