| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_053T34_9000004192_29204cztM0_level2.evt | modeM0/AS1A10_053T34_9000004192_29204cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,505,790,720 | 157,037,760 |
| Size | 1.4 GB | 149.8 MB |
| Events in quadrant A | 6,683,888 | 1,004,482 |
| Events in quadrant B | 7,586,621 | 1,001,610 |
| Events in quadrant C | 18,361,069 | 868,307 |
| Events in quadrant D | 12,021,620 | 904,615 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9 | 0 |
| B | 0 | 9 | 0 |
| C | 0 | 9 | 0 |
| D | 0 | 9 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 286 | 0 |
| B | 0 | 286 | 0 |
| C | 0 | 286 | 0 |
| D | 0 | 286 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 28881 | 2 |
| B | 0 | 31415 | 2 |
| C | 0 | 64440 | 2 |
| D | 0 | 45179 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 14124 | 127 | 0.899179% |
| B | 14124 | 229 | 1.621354% |
| C | 14124 | 3168 | 22.429907% |
| D | 14124 | 1130 | 8.000566% |

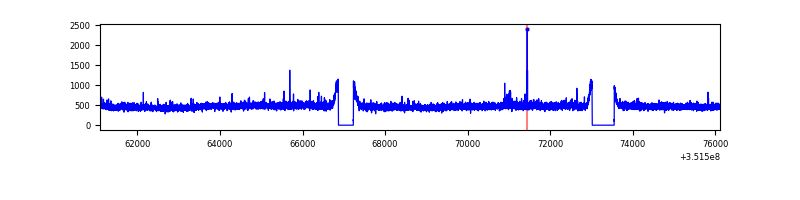

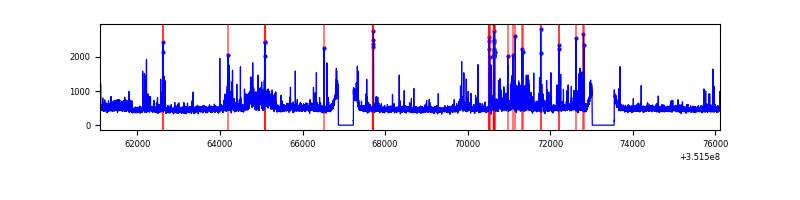

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 15024 | 14126 | 1 | 1 | 0.01% | 0.01% |  |
| B | 15024 | 14126 | 39 | 39 | 0.26% | 0.28% |  |
| C | 15024 | 14126 | 2013 | 2013 | 13.40% | 14.25% |  |
| D | 15024 | 14126 | 1059 | 1059 | 7.05% | 7.50% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 169 | 30244 | 82.39 | 1720 | 1684 | 346.6 |
| A | 13 | 254 | 28986 | 78.77 | 1720 | 1684 | 346.6 |
| A | 0 | 13 | 19311 | 50.85 | 1720 | 1684 | 346.6 |
| B | 0 | 183 | 343693 | 1044.11 | 1705 | 1661 | 327.6 |
| B | 10 | 245 | 247581 | 750.72 | 1705 | 1661 | 327.6 |
| B | 0 | 229 | 153867 | 464.64 | 1705 | 1661 | 327.6 |
| C | 3 | 233 | 11958107 | 32533.95 | 1567 | 1582 | 367.5 |
| C | 14 | 238 | 249049 | 673.36 | 1567 | 1582 | 367.5 |
| C | 2 | 114 | 32904 | 85.23 | 1567 | 1582 | 367.5 |
| D | 1 | 52 | 3935075 | 10074.24 | 1622 | 1580 | 390.5 |
| D | 8 | 195 | 1198693 | 3065.98 | 1622 | 1580 | 390.5 |
| D | 2 | 250 | 312030 | 795.11 | 1622 | 1580 | 390.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

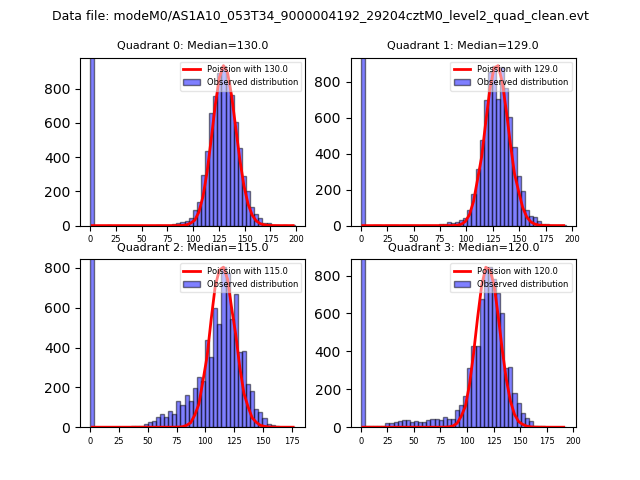

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

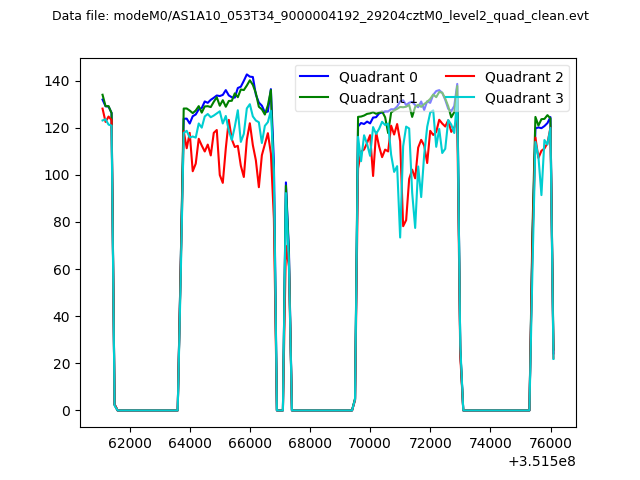

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

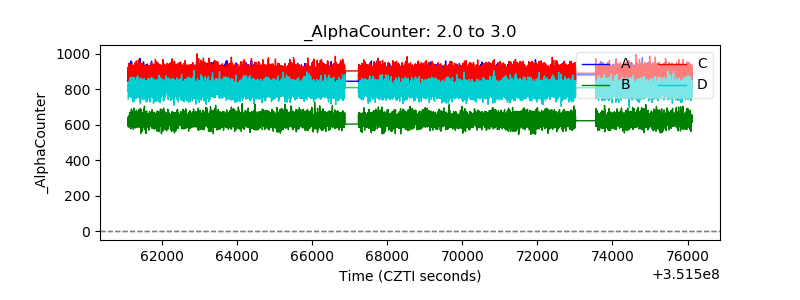

| Alpha Counter |  |

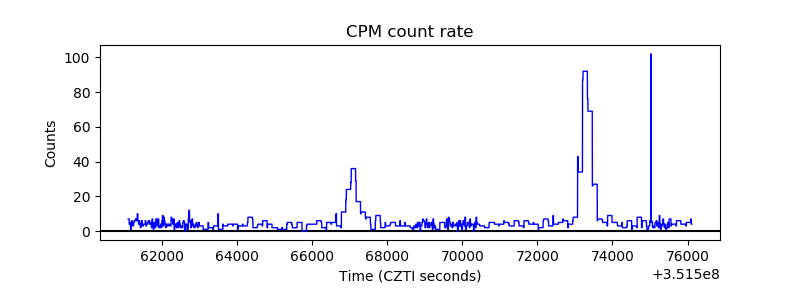

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

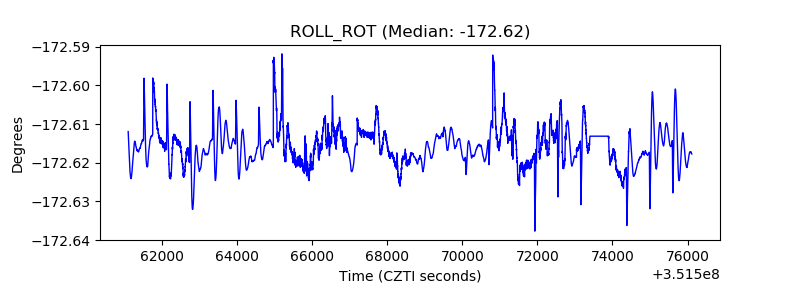

| _ROLL_ROT |  |

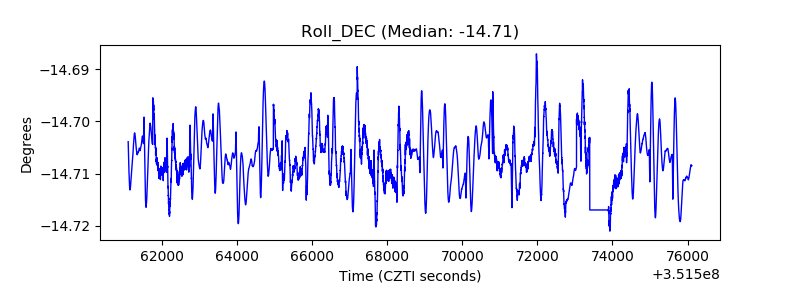

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
