| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_115T03_9000004202_29237cztM0_level2.evt | modeM0/AS1A10_115T03_9000004202_29237cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,371,672,000 | 228,231,360 |
| Size | 1.3 GB | 217.7 MB |
| Events in quadrant A | 8,199,012 | 1,453,926 |
| Events in quadrant B | 9,317,207 | 1,471,877 |
| Events in quadrant C | 10,682,342 | 1,406,795 |
| Events in quadrant D | 12,157,362 | 1,369,145 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 358 | 0 |
| B | 0 | 358 | 0 |
| C | 0 | 358 | 0 |
| D | 0 | 358 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 36184 | 3 |
| B | 0 | 39482 | 3 |
| C | 0 | 43188 | 3 |
| D | 0 | 48390 | 3 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 17554 | 131 | 0.746269% |
| B | 17554 | 357 | 2.033725% |
| C | 17554 | 718 | 4.090236% |
| D | 17554 | 823 | 4.688390% |

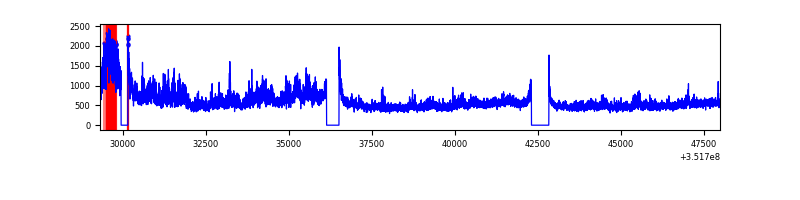

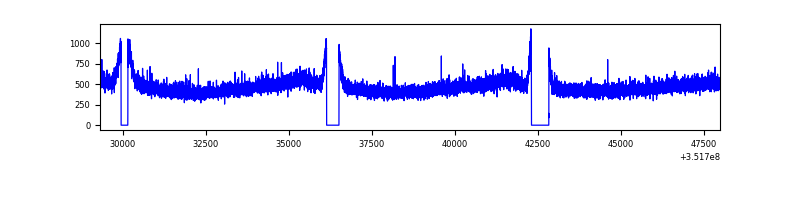

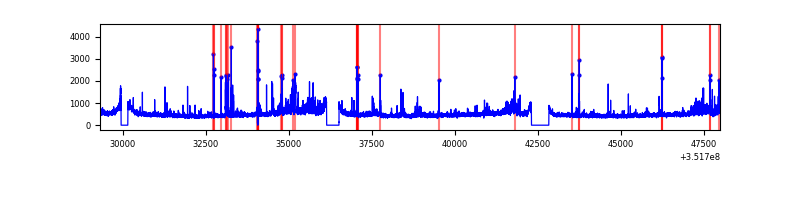

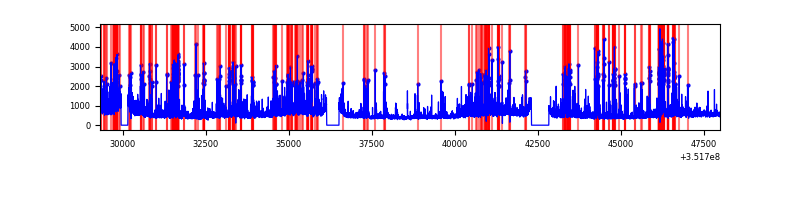

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 18659 | 17557 | 0 | 0 | 0.00% | 0.00% |  |
| B | 18659 | 17556 | 38 | 38 | 0.20% | 0.22% |  |
| C | 18659 | 17557 | 67 | 67 | 0.36% | 0.38% |  |
| D | 18659 | 17557 | 505 | 505 | 2.71% | 2.88% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 13 | 41798 | 93.54 | 2115 | 2071 | 424.7 |
| A | 13 | 254 | 32659 | 72.02 | 2115 | 2071 | 424.7 |
| A | 3 | 137 | 21855 | 46.58 | 2115 | 2071 | 424.7 |
| B | 0 | 183 | 517221 | 1284.23 | 2093 | 2035 | 401.2 |
| B | 10 | 245 | 444090 | 1101.93 | 2093 | 2035 | 401.2 |
| B | 0 | 189 | 63131 | 152.3 | 2093 | 2035 | 401.2 |
| C | 3 | 233 | 2463165 | 5194.1 | 2016 | 2029 | 473.8 |
| C | 14 | 238 | 324291 | 680.12 | 2016 | 2029 | 473.8 |
| C | 2 | 114 | 40686 | 81.58 | 2016 | 2029 | 473.8 |
| D | 1 | 52 | 3249637 | 6729.8 | 2017 | 1961 | 482.6 |
| D | 8 | 195 | 607590 | 1254.98 | 2017 | 1961 | 482.6 |
| D | 13 | 153 | 346557 | 714.07 | 2017 | 1961 | 482.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

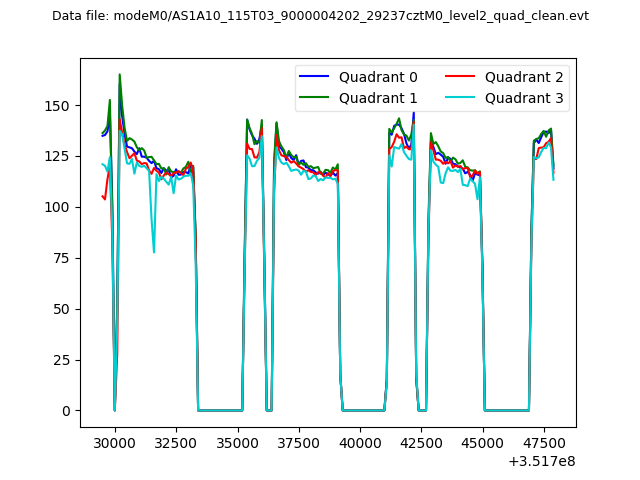

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

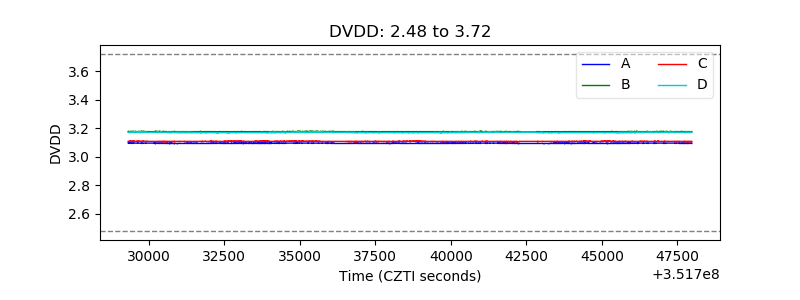

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

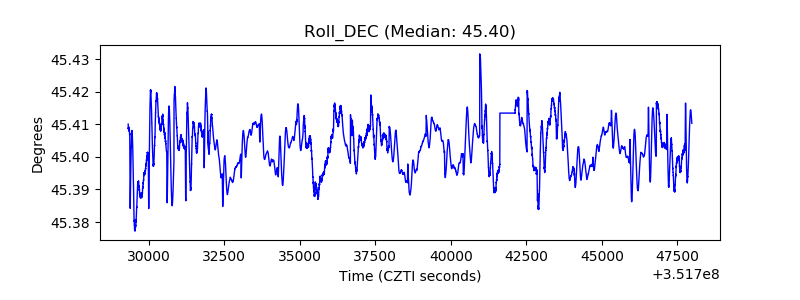

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
