| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_272T01_9000004204_29243cztM0_level2.evt | modeM0/AS1T03_272T01_9000004204_29243cztM0_level2_quad_clean.evt |
| Size (bytes) | 784,656,000 | 91,572,480 |
| Size | 748.3 MB | 87.3 MB |
| Events in quadrant A | 3,398,226 | 597,575 |
| Events in quadrant B | 4,564,794 | 596,417 |
| Events in quadrant C | 9,771,558 | 533,778 |
| Events in quadrant D | 5,551,954 | 552,578 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 5 | 0 |
| B | 0 | 5 | 0 |
| C | 0 | 5 | 0 |
| D | 0 | 5 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 142 | 0 |
| B | 0 | 142 | 0 |
| C | 0 | 142 | 0 |
| D | 0 | 142 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14628 | 1 |
| B | 0 | 18134 | 1 |
| C | 0 | 34022 | 1 |
| D | 0 | 21274 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7075 | 79 | 1.116608% |
| B | 7075 | 197 | 2.784452% |
| C | 7076 | 1787 | 25.254381% |
| D | 7076 | 312 | 4.409271% |

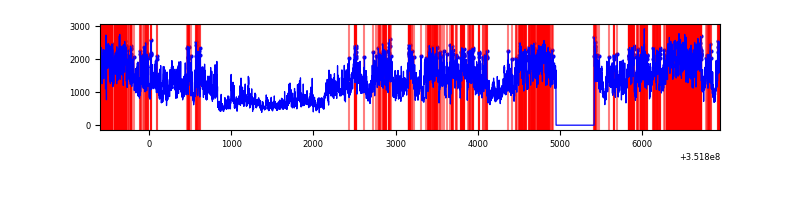

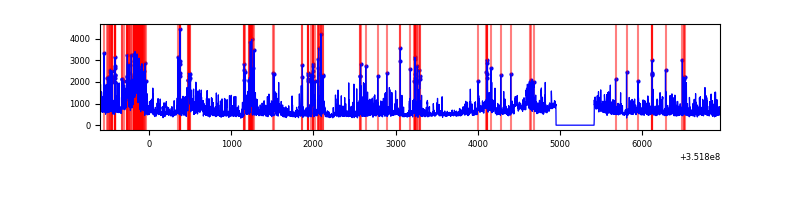

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7540 | 7076 | 3 | 3 | 0.04% | 0.04% |  |
| B | 7540 | 7076 | 30 | 30 | 0.40% | 0.42% |  |
| C | 7541 | 7077 | 903 | 903 | 11.97% | 12.76% |  |
| D | 7541 | 7077 | 194 | 194 | 2.57% | 2.74% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 170 | 23179 | 128.75 | 871 | 852 | 173.4 |
| A | 13 | 254 | 14332 | 77.73 | 871 | 852 | 173.4 |
| A | 0 | 13 | 9714 | 51.1 | 871 | 852 | 173.4 |
| B | 10 | 245 | 532260 | 3290.32 | 862 | 841 | 161.5 |
| B | 0 | 229 | 217909 | 1343.99 | 862 | 841 | 161.5 |
| B | 0 | 183 | 139349 | 857.58 | 862 | 841 | 161.5 |
| C | 3 | 233 | 6588109 | 36053.42 | 780 | 784 | 182.7 |
| C | 14 | 238 | 123263 | 670.35 | 780 | 784 | 182.7 |
| C | 2 | 114 | 16687 | 87.04 | 780 | 784 | 182.7 |
| D | 1 | 52 | 1040854 | 5285.34 | 828 | 804 | 196.8 |
| D | 8 | 195 | 660963 | 3354.8 | 828 | 804 | 196.8 |
| D | 12 | 233 | 342865 | 1738.29 | 828 | 804 | 196.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

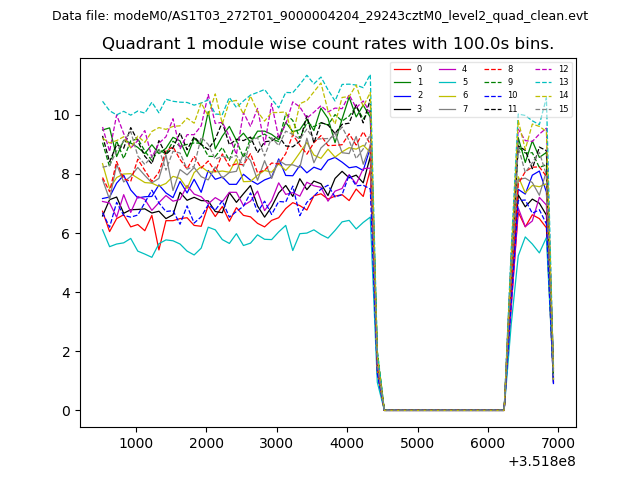

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

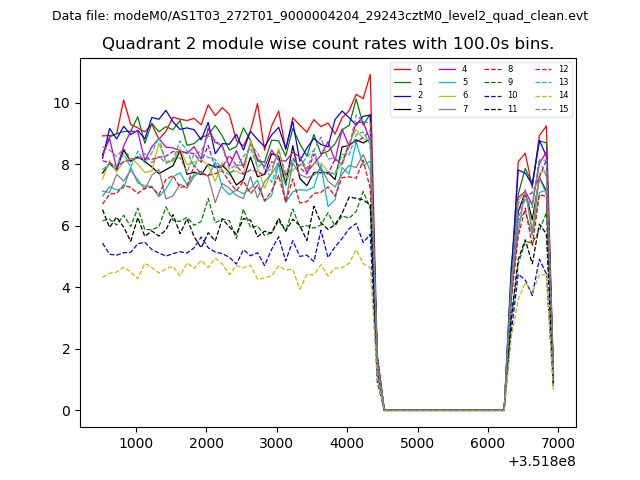

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

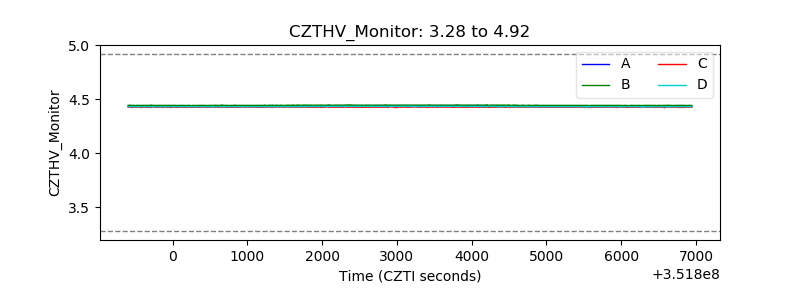

| CZT HV Monitor |  |

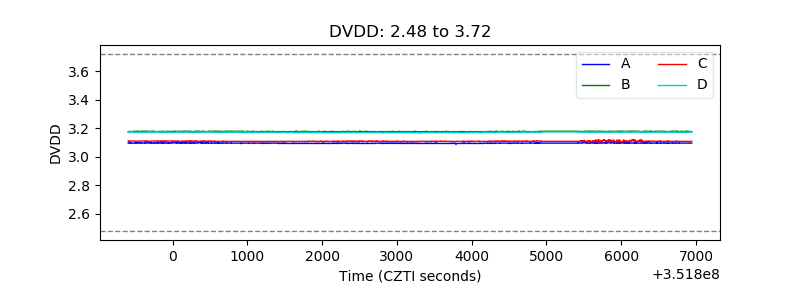

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

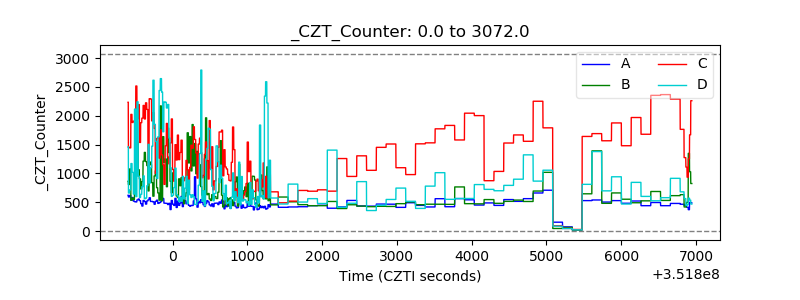

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

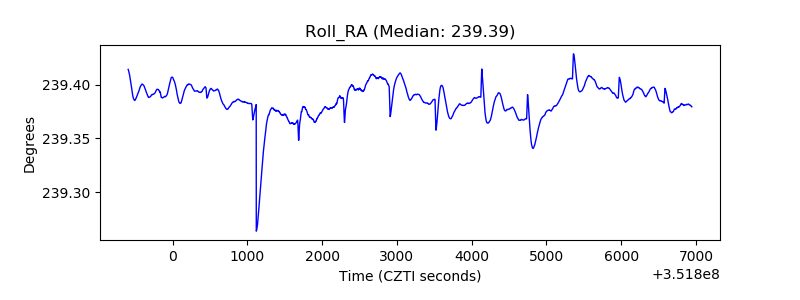

| _Roll_RA |  |
| Veto Counter |  |
