| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_045T08_9000004208_29258cztM0_level2.evt | modeM0/AS1A10_045T08_9000004208_29258cztM0_level2_quad_clean.evt |
| Size (bytes) | 640,771,200 | 88,836,480 |
| Size | 611.1 MB | 84.7 MB |
| Events in quadrant A | 3,306,181 | 564,882 |
| Events in quadrant B | 4,482,007 | 565,243 |
| Events in quadrant C | 6,593,164 | 537,502 |
| Events in quadrant D | 4,563,102 | 547,016 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 142 | 0 |
| B | 0 | 142 | 0 |
| C | 0 | 142 | 0 |
| D | 0 | 142 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14154 | 1 |
| B | 0 | 17895 | 1 |
| C | 0 | 24440 | 2 |
| D | 0 | 18051 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3 | 0 |
| B | 0 | 3 | 0 |
| C | 0 | 3 | 0 |
| D | 0 | 3 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6821 | 64 | 0.938279% |
| B | 6822 | 347 | 5.086485% |
| C | 6821 | 399 | 5.849582% |
| D | 6821 | 199 | 2.917461% |

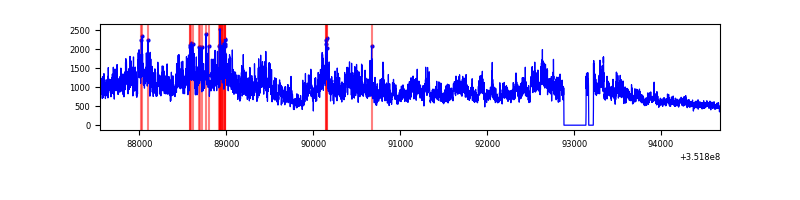

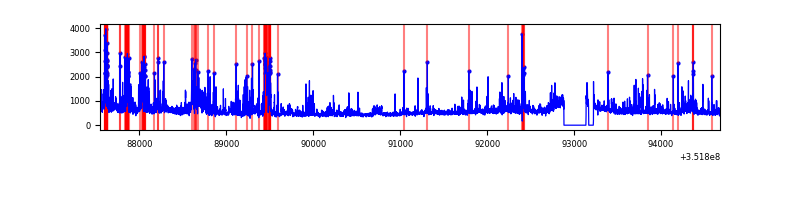

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7131 | 6823 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7132 | 6824 | 104 | 104 | 1.46% | 1.52% |  |
| C | 7131 | 6823 | 32 | 32 | 0.45% | 0.47% |  |
| D | 7131 | 6823 | 125 | 125 | 1.75% | 1.83% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 13 | 32855 | 187.24 | 846 | 827 | 171.1 |
| A | 13 | 254 | 16086 | 89.21 | 846 | 827 | 171.1 |
| A | 3 | 137 | 8439 | 44.5 | 846 | 827 | 171.1 |
| B | 10 | 247 | 667299 | 4170.08 | 831 | 809 | 159.8 |
| B | 0 | 183 | 250863 | 1564.53 | 831 | 809 | 159.8 |
| B | 0 | 229 | 237057 | 1478.15 | 831 | 809 | 159.8 |
| C | 3 | 233 | 3285944 | 17556.7 | 801 | 809 | 187.1 |
| C | 14 | 238 | 129190 | 686.1 | 801 | 809 | 187.1 |
| C | 10 | 9 | 30943 | 161.04 | 801 | 809 | 187.1 |
| D | 1 | 52 | 820403 | 3764.28 | 809 | 794 | 217.7 |
| D | 8 | 195 | 271329 | 1242.51 | 809 | 794 | 217.7 |
| D | 13 | 153 | 123711 | 564.53 | 809 | 794 | 217.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

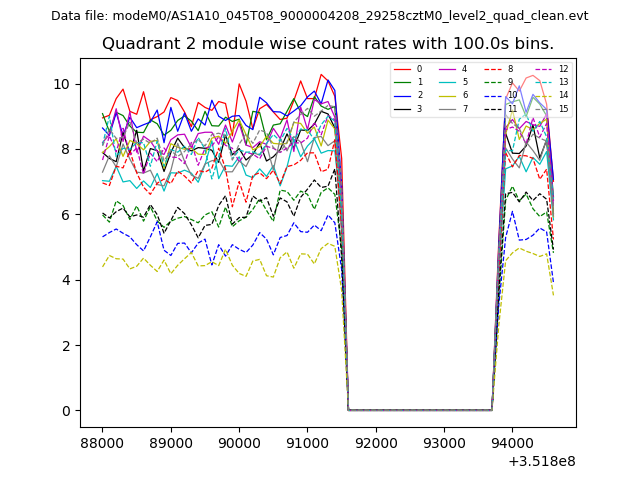

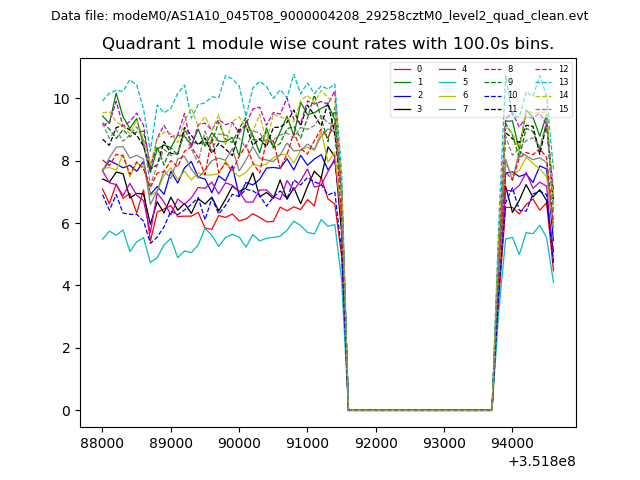

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

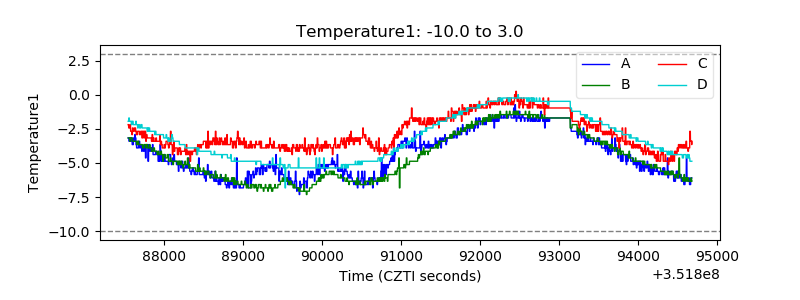

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

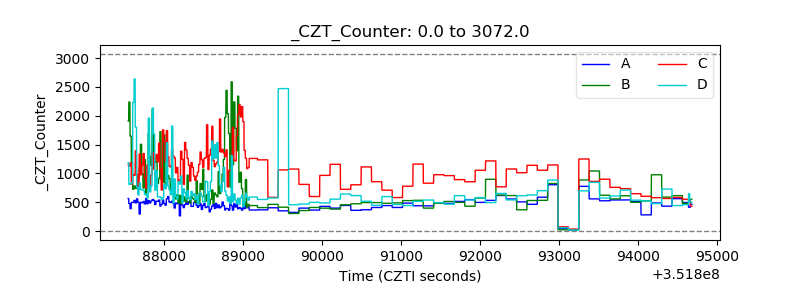

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

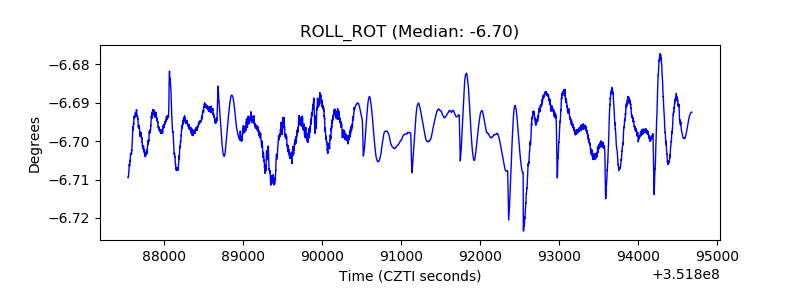

| _ROLL_ROT |  |

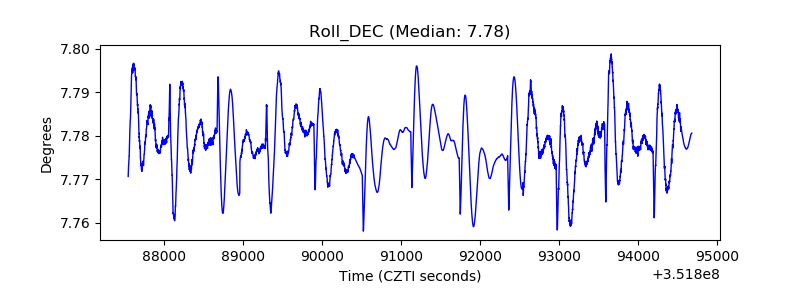

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
