| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_045T08_9000004208_29268cztM0_level2.evt | modeM0/AS1A10_045T08_9000004208_29268cztM0_level2_quad_clean.evt |
| Size (bytes) | 758,666,880 | 66,412,800 |
| Size | 723.5 MB | 63.3 MB |
| Events in quadrant A | 3,427,061 | 413,054 |
| Events in quadrant B | 4,246,013 | 413,529 |
| Events in quadrant C | 10,466,701 | 351,354 |
| Events in quadrant D | 4,415,971 | 397,534 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13941 | 1 |
| B | 0 | 16860 | 1 |
| C | 0 | 35413 | 1 |
| D | 0 | 17358 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6231 | 83 | 1.332049% |
| B | 6232 | 201 | 3.225289% |
| C | 6231 | 2971 | 47.680950% |
| D | 6231 | 145 | 2.327074% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7511 | 6232 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7512 | 6233 | 57 | 57 | 0.76% | 0.91% |  |
| C | 7511 | 6232 | 1921 | 1921 | 25.58% | 30.82% |  |
| D | 7511 | 6232 | 61 | 61 | 0.81% | 0.98% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 11332 | 59.44 | 888 | 873 | 176.0 |
| A | 3 | 137 | 7837 | 39.58 | 888 | 873 | 176.0 |
| A | 0 | 226 | 7577 | 38.1 | 888 | 873 | 176.0 |
| B | 10 | 245 | 542119 | 3366.47 | 860 | 841 | 160.8 |
| B | 0 | 229 | 237755 | 1473.48 | 860 | 841 | 160.8 |
| B | 0 | 183 | 79120 | 486.85 | 860 | 841 | 160.8 |
| C | 3 | 233 | 7330083 | 42491.37 | 754 | 763 | 172.5 |
| C | 14 | 238 | 144950 | 835.92 | 754 | 763 | 172.5 |
| C | 14 | 254 | 37576 | 213.42 | 754 | 763 | 172.5 |
| D | 8 | 195 | 506706 | 2492.28 | 862 | 844 | 203.0 |
| D | 1 | 52 | 420671 | 2068.4 | 862 | 844 | 203.0 |
| D | 13 | 153 | 87160 | 425.26 | 862 | 844 | 203.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

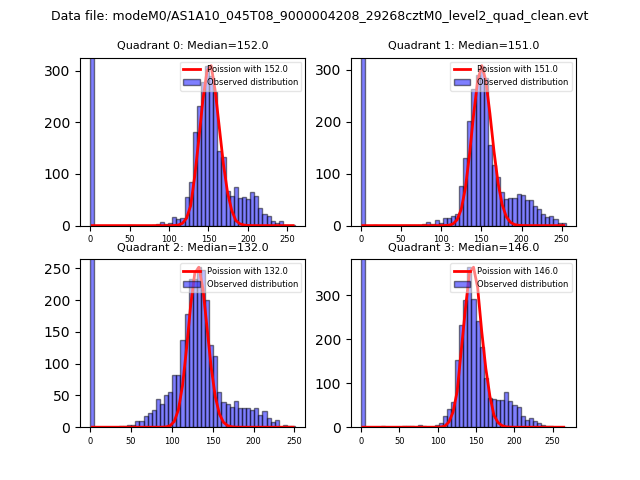

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

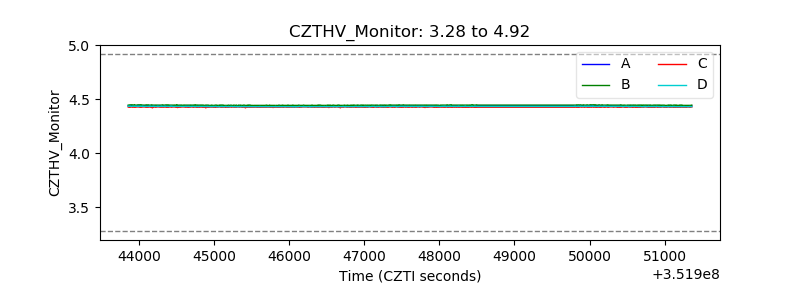

| CZT HV Monitor |  |
| D_VDD |  |

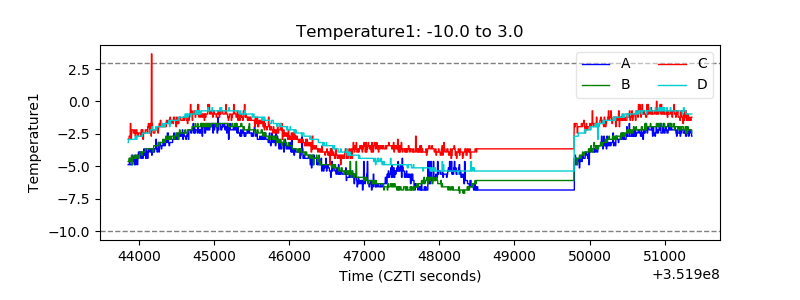

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

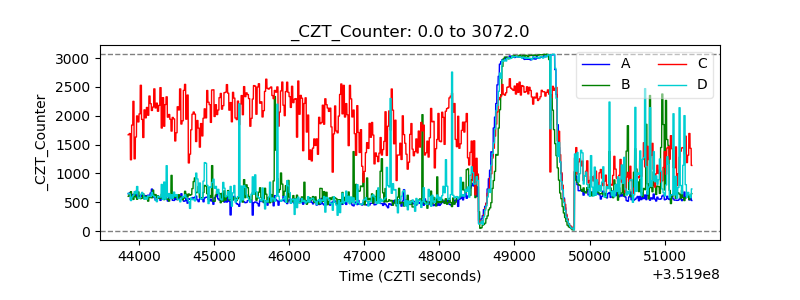

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

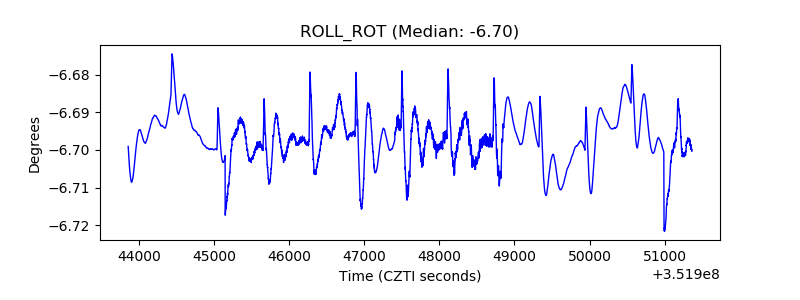

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
