| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_045T08_9000004208_29269cztM0_level2.evt | modeM0/AS1A10_045T08_9000004208_29269cztM0_level2_quad_clean.evt |
| Size (bytes) | 709,200,000 | 61,254,720 |
| Size | 676.3 MB | 58.4 MB |
| Events in quadrant A | 3,384,728 | 366,758 |
| Events in quadrant B | 4,523,717 | 364,734 |
| Events in quadrant C | 7,160,955 | 341,037 |
| Events in quadrant D | 5,988,684 | 346,520 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13810 | 1 |
| B | 0 | 17708 | 1 |
| C | 0 | 25690 | 1 |
| D | 0 | 22294 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6229 | 92 | 1.476963% |
| B | 6230 | 267 | 4.285714% |
| C | 6230 | 850 | 13.643660% |
| D | 6230 | 354 | 5.682183% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

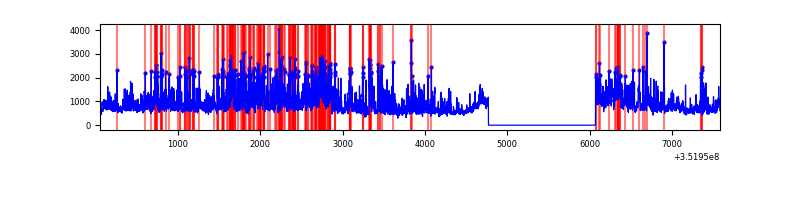

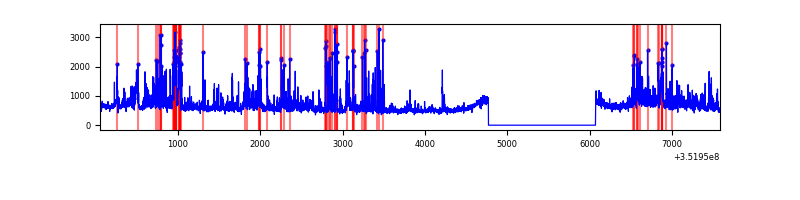

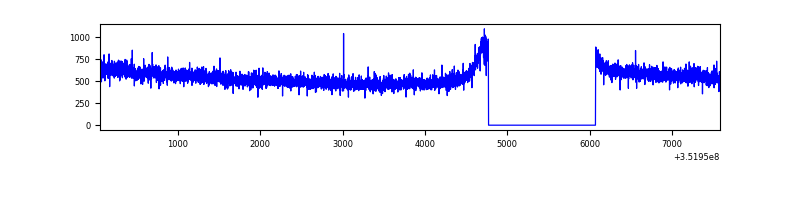

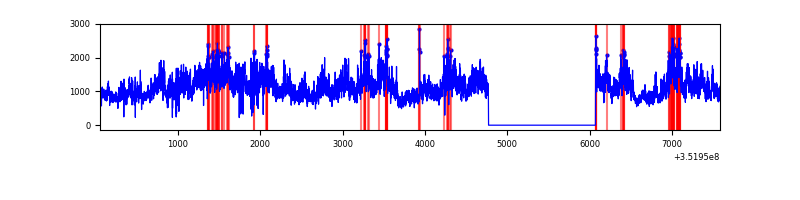

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7529 | 6229 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7530 | 6230 | 89 | 89 | 1.18% | 1.43% |  |
| C | 7530 | 6230 | 107 | 107 | 1.42% | 1.72% |  |
| D | 7530 | 6230 | 272 | 272 | 3.61% | 4.37% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 11943 | 63.87 | 876 | 862 | 173.5 |
| A | 3 | 137 | 7897 | 40.55 | 876 | 862 | 173.5 |
| A | 0 | 226 | 7679 | 39.29 | 876 | 862 | 173.5 |
| B | 10 | 245 | 758458 | 4685.12 | 854 | 833 | 161.7 |
| B | 0 | 229 | 286861 | 1768.78 | 854 | 833 | 161.7 |
| B | 0 | 183 | 125967 | 773.82 | 854 | 833 | 161.7 |
| C | 3 | 233 | 3738689 | 20059.96 | 812 | 822 | 186.3 |
| C | 14 | 238 | 174417 | 931.63 | 812 | 822 | 186.3 |
| C | 14 | 254 | 65323 | 346.16 | 812 | 822 | 186.3 |
| D | 1 | 52 | 1413345 | 7021.05 | 846 | 827 | 201.2 |
| D | 8 | 195 | 1164196 | 5782.63 | 846 | 827 | 201.2 |
| D | 13 | 153 | 110236 | 543.83 | 846 | 827 | 201.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

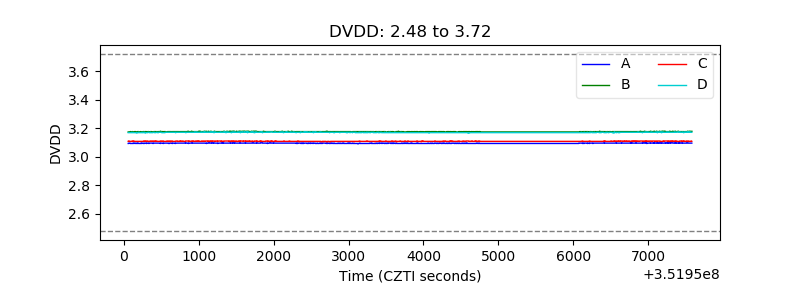

| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
