| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_115T01_9000004206_29252cztM0_level2.evt | modeM0/AS1A10_115T01_9000004206_29252cztM0_level2_quad_clean.evt |
| Size (bytes) | 901,172,160 | 81,175,680 |
| Size | 859.4 MB | 77.4 MB |
| Events in quadrant A | 3,474,270 | 567,066 |
| Events in quadrant B | 4,119,766 | 575,125 |
| Events in quadrant C | 13,700,892 | 354,584 |
| Events in quadrant D | 5,563,400 | 511,696 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 17 | 0 |
| C | 0 | 17 | 0 |
| D | 0 | 17 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14381 | 2 |
| B | 0 | 16453 | 2 |
| C | 0 | 45091 | 2 |
| D | 0 | 20869 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6420 | 86 | 1.339564% |
| B | 6420 | 199 | 3.099688% |
| C | 6420 | 5619 | 87.523364% |
| D | 6420 | 607 | 9.454829% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7610 | 6421 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7610 | 6421 | 62 | 62 | 0.81% | 0.97% |  |
| C | 7610 | 6421 | 4190 | 4190 | 55.06% | 65.25% |  |
| D | 7610 | 6421 | 607 | 607 | 7.98% | 9.45% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 13 | 15761 | 83.9 | 896 | 881 | 177.4 |
| A | 13 | 254 | 11705 | 61.03 | 896 | 881 | 177.4 |
| A | 3 | 137 | 8187 | 41.19 | 896 | 881 | 177.4 |
| B | 10 | 245 | 438271 | 2616.48 | 882 | 862 | 167.2 |
| B | 0 | 183 | 162114 | 964.57 | 882 | 862 | 167.2 |
| B | 0 | 229 | 23381 | 134.7 | 882 | 862 | 167.2 |
| C | 3 | 233 | 11092359 | 78506.87 | 620 | 627 | 141.3 |
| C | 14 | 238 | 129709 | 913.64 | 620 | 627 | 141.3 |
| C | 14 | 254 | 50959 | 356.25 | 620 | 627 | 141.3 |
| D | 1 | 52 | 1790166 | 9092.71 | 839 | 821 | 196.8 |
| D | 8 | 195 | 436529 | 2214.09 | 839 | 821 | 196.8 |
| D | 7 | 80 | 71402 | 358.66 | 839 | 821 | 196.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

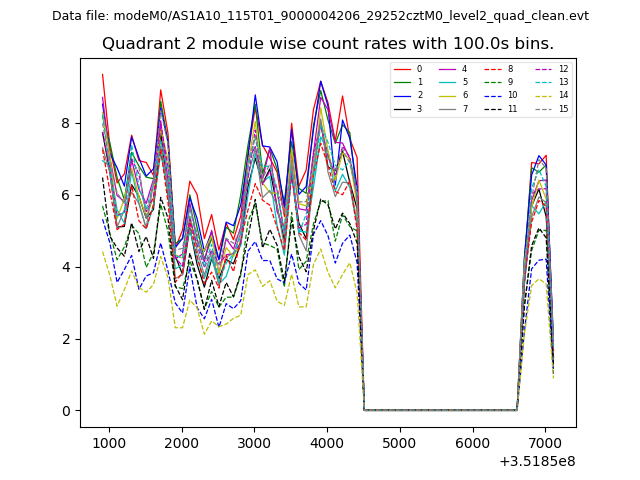

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

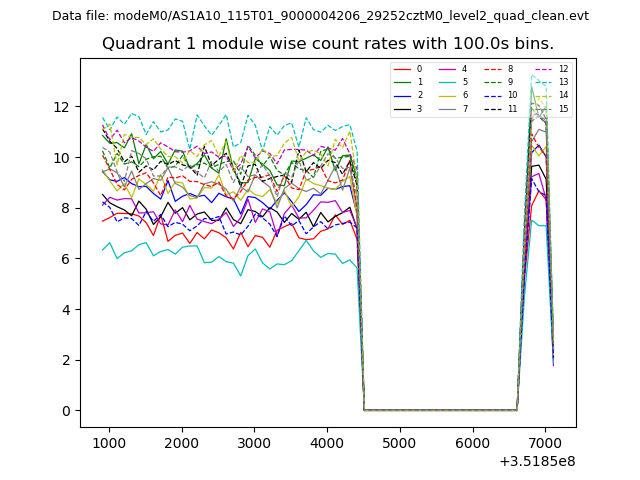

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

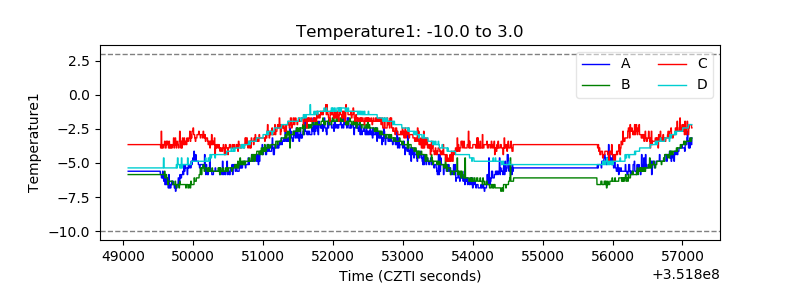

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

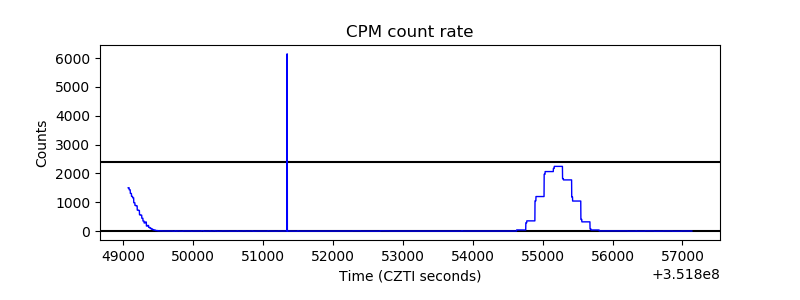

| _CPM_Rate |  |

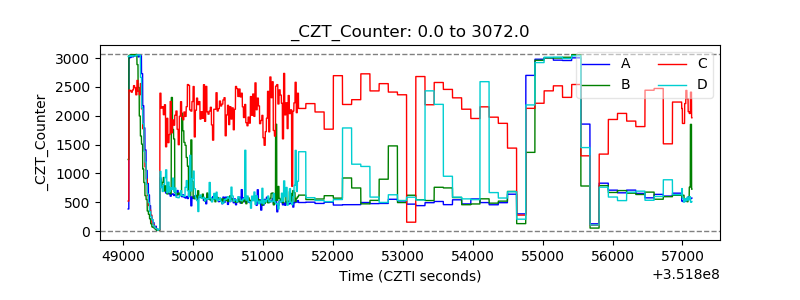

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
