| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_115T01_9000004206_29253cztM0_level2.evt | modeM0/AS1A10_115T01_9000004206_29253cztM0_level2_quad_clean.evt |
| Size (bytes) | 815,777,280 | 92,977,920 |
| Size | 778.0 MB | 88.7 MB |
| Events in quadrant A | 3,298,328 | 674,164 |
| Events in quadrant B | 3,913,148 | 678,650 |
| Events in quadrant C | 10,832,918 | 488,448 |
| Events in quadrant D | 6,258,318 | 555,298 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 122 | 0 |
| B | 0 | 122 | 0 |
| C | 0 | 122 | 0 |
| D | 0 | 122 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13613 | 1 |
| B | 0 | 15737 | 1 |
| C | 0 | 36296 | 1 |
| D | 0 | 22792 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5974 | 104 | 1.740877% |
| B | 5975 | 181 | 3.029289% |
| C | 5975 | 3571 | 59.765690% |
| D | 5975 | 992 | 16.602510% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

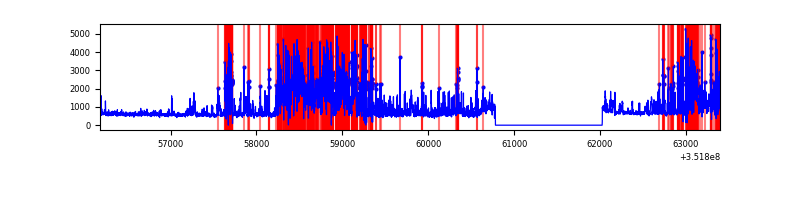

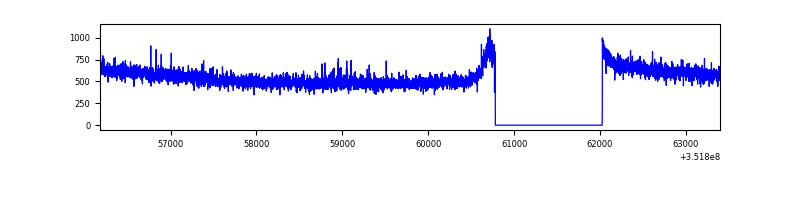

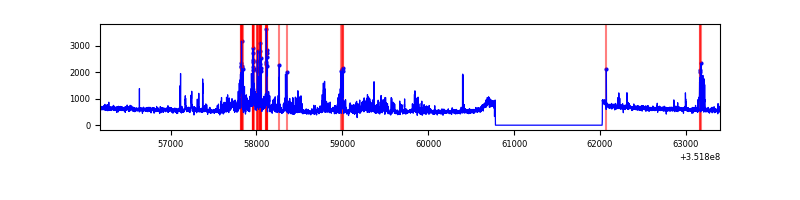

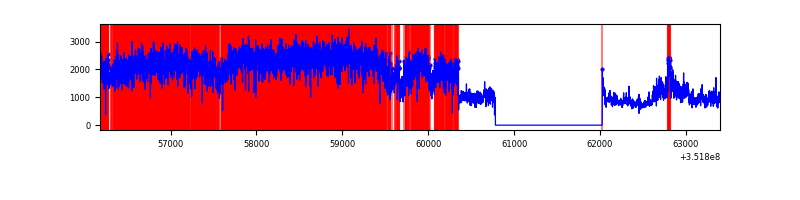

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7219 | 5975 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7220 | 5976 | 42 | 42 | 0.58% | 0.70% |  |
| C | 7220 | 5976 | 2851 | 2851 | 39.49% | 47.71% |  |
| D | 7220 | 5976 | 756 | 756 | 10.47% | 12.65% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 13 | 22174 | 126.37 | 849 | 836 | 168.9 |
| A | 13 | 254 | 11850 | 65.23 | 849 | 836 | 168.9 |
| A | 3 | 137 | 7660 | 40.41 | 849 | 836 | 168.9 |
| B | 0 | 183 | 293247 | 1862.8 | 831 | 814 | 157.0 |
| B | 10 | 245 | 234057 | 1485.76 | 831 | 814 | 157.0 |
| B | 0 | 229 | 52027 | 326.23 | 831 | 814 | 157.0 |
| C | 3 | 233 | 8077560 | 52584.31 | 671 | 678 | 153.6 |
| C | 14 | 238 | 115358 | 746.62 | 671 | 678 | 153.6 |
| C | 14 | 254 | 13493 | 83.43 | 671 | 678 | 153.6 |
| D | 1 | 52 | 2118513 | 11960.6 | 752 | 734 | 177.1 |
| D | 8 | 195 | 696624 | 3930.18 | 752 | 734 | 177.1 |
| D | 7 | 80 | 345025 | 1944.46 | 752 | 734 | 177.1 |

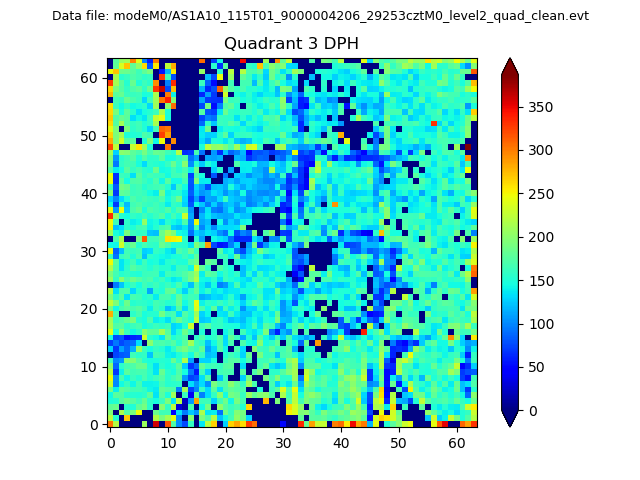

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

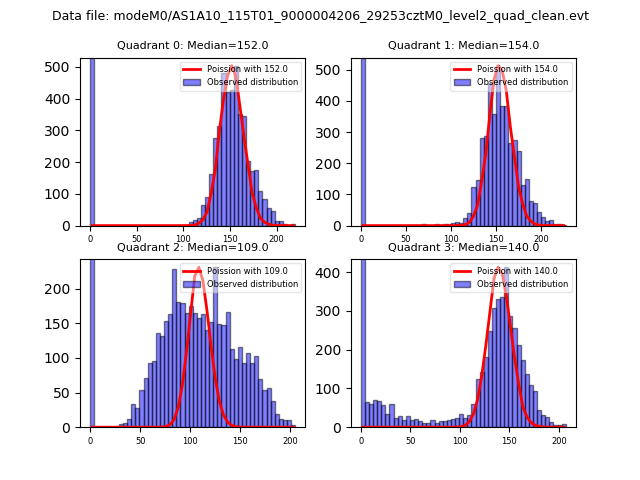

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

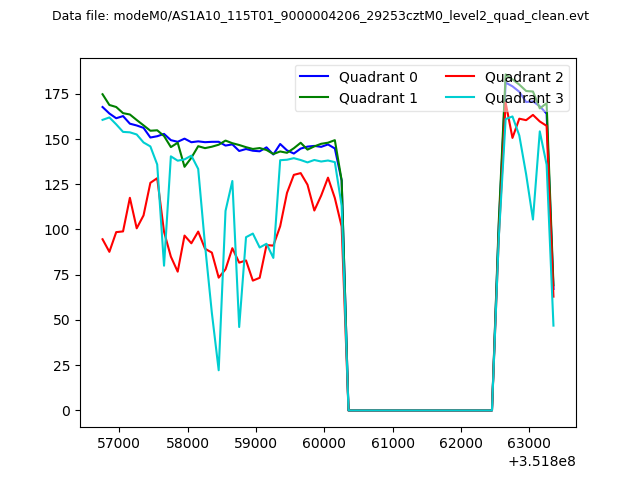

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

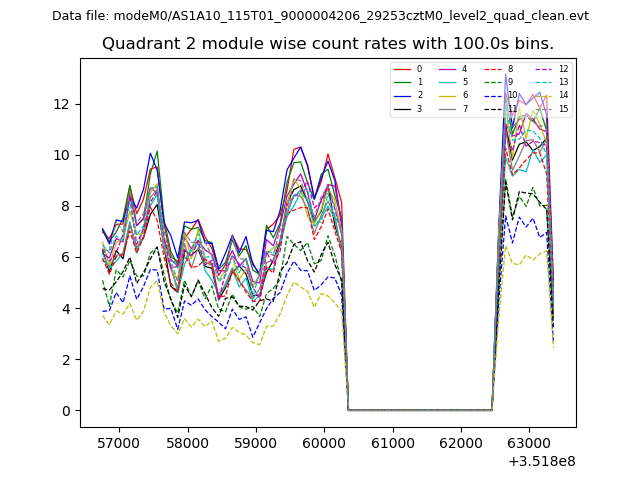

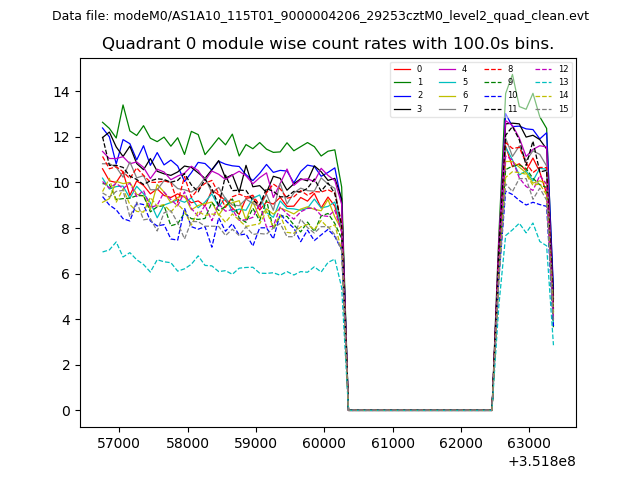

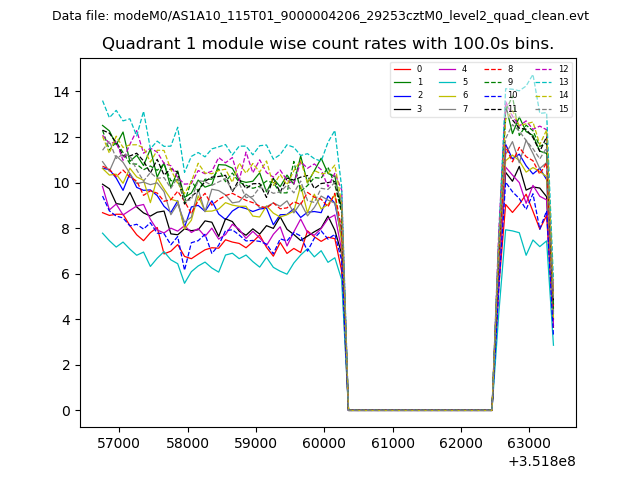

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

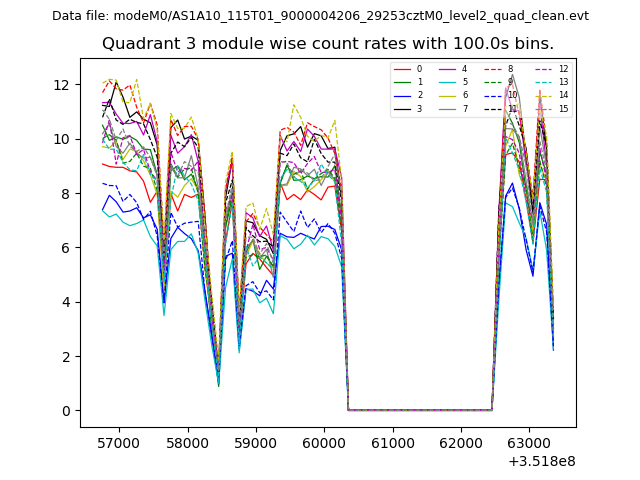

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

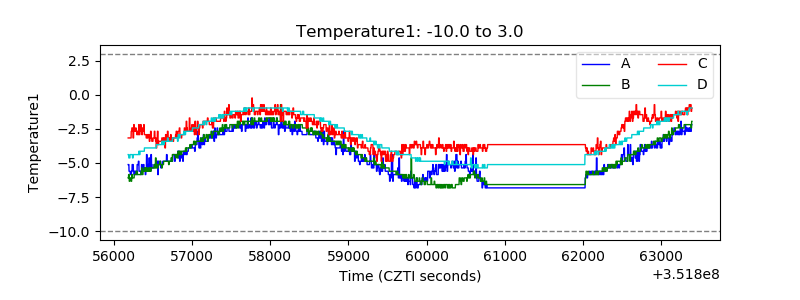

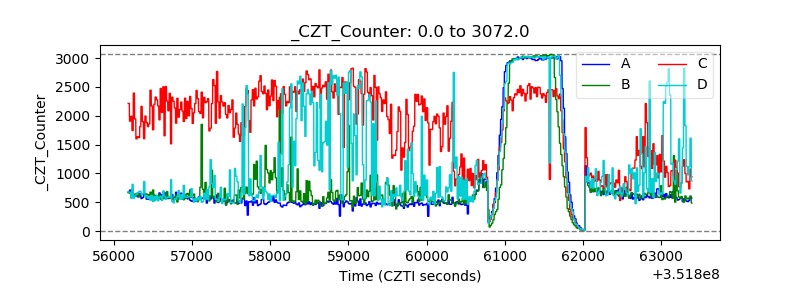

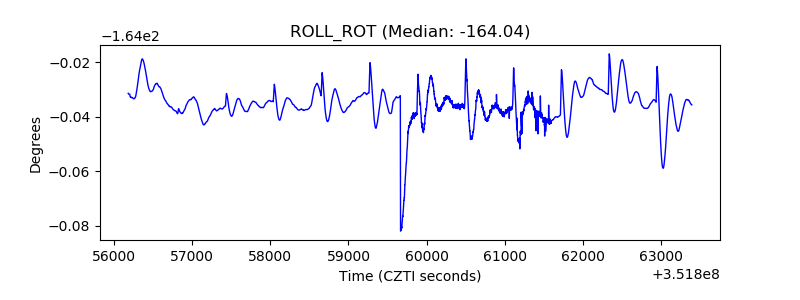

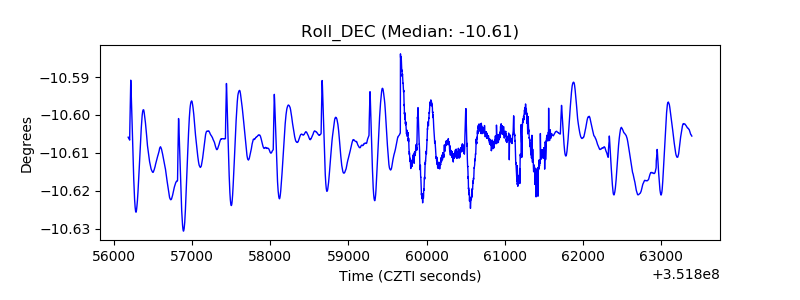

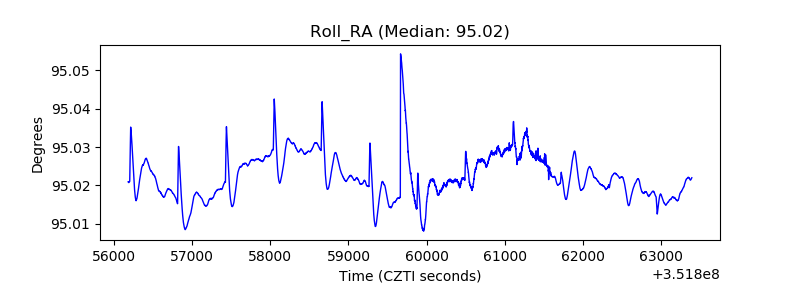

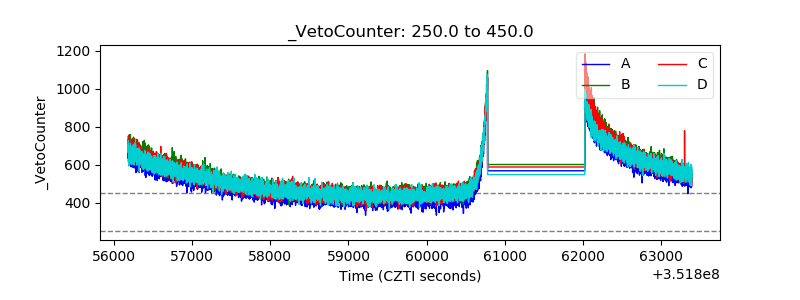

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
