| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_021T10_9000004210_29280cztM0_level2.evt | modeM0/AS1A10_021T10_9000004210_29280cztM0_level2_quad_clean.evt |
| Size (bytes) | 127,886,400 | 32,976,000 |
| Size | 122.0 MB | 31.4 MB |
| Events in quadrant A | 763,133 | 233,113 |
| Events in quadrant B | 765,053 | 237,023 |
| Events in quadrant C | 850,991 | 218,498 |
| Events in quadrant D | 1,399,437 | 208,594 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 26 | 0 |
| B | 0 | 26 | 0 |
| C | 0 | 26 | 0 |
| D | 0 | 26 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 5 | 0 |
| B | 0 | 5 | 0 |
| C | 0 | 5 | 0 |
| D | 0 | 5 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3101 | 1 |
| B | 0 | 3115 | 1 |
| C | 0 | 3576 | 1 |
| D | 0 | 5075 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 1355 | 8 | 0.590406% |
| B | 1355 | 10 | 0.738007% |
| C | 1355 | 53 | 3.911439% |
| D | 1354 | 163 | 12.038405% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 1355 | 1355 | 0 | 0 | 0.00% | 0.00% |  |
| B | 1355 | 1355 | 0 | 0 | 0.00% | 0.00% |  |
| C | 1355 | 1355 | 0 | 0 | 0.00% | 0.00% |  |
| D | 1354 | 1354 | 127 | 127 | 9.38% | 9.38% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 2236 | 49.8 | 197 | 194 | 41.0 |
| A | 0 | 226 | 1659 | 35.73 | 197 | 194 | 41.0 |
| A | 3 | 137 | 1521 | 32.37 | 197 | 194 | 41.0 |
| B | 12 | 111 | 4204 | 105.12 | 194 | 190 | 38.2 |
| B | 11 | 111 | 3821 | 95.09 | 194 | 190 | 38.2 |
| B | 14 | 111 | 3678 | 91.34 | 194 | 190 | 38.2 |
| C | 3 | 233 | 48849 | 1053.39 | 191 | 193 | 46.2 |
| C | 14 | 238 | 38776 | 835.31 | 191 | 193 | 46.2 |
| C | 14 | 254 | 11384 | 242.28 | 191 | 193 | 46.2 |
| D | 1 | 52 | 655830 | 14223.68 | 187 | 183 | 46.1 |
| D | 13 | 153 | 18584 | 399.19 | 187 | 183 | 46.1 |
| D | 8 | 195 | 12782 | 273.32 | 187 | 183 | 46.1 |

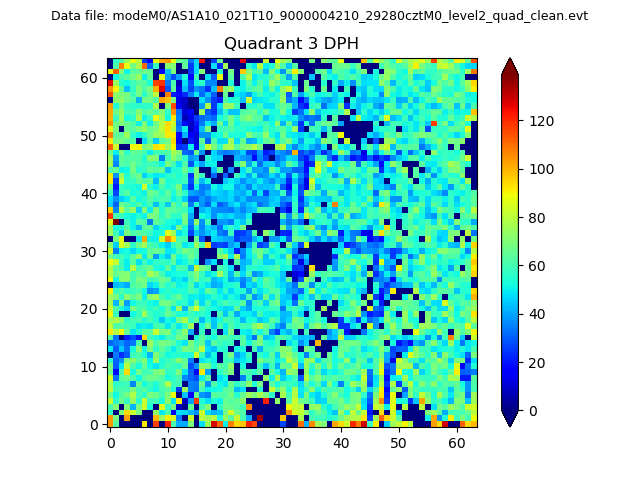

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

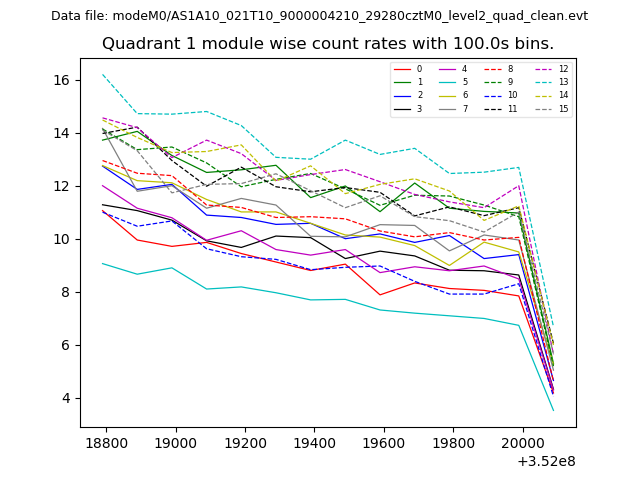

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

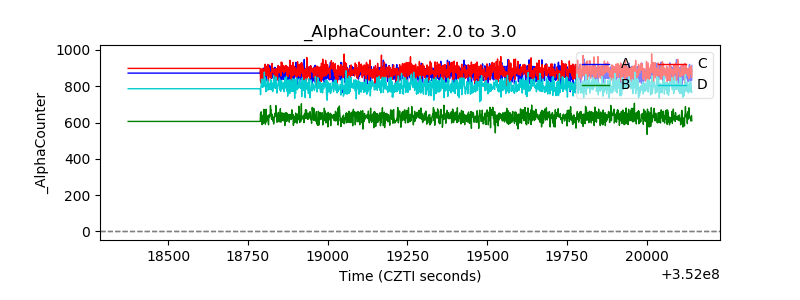

| Alpha Counter |  |
| _CPM_Rate |  |

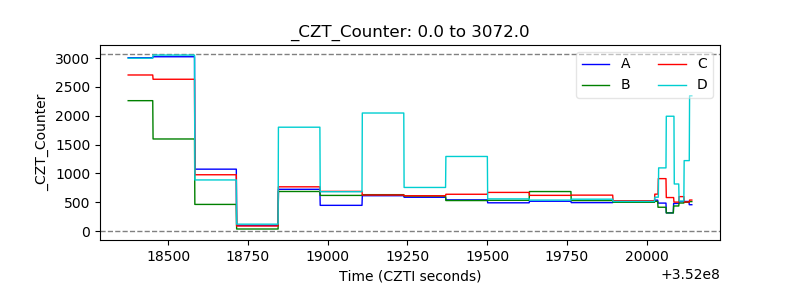

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

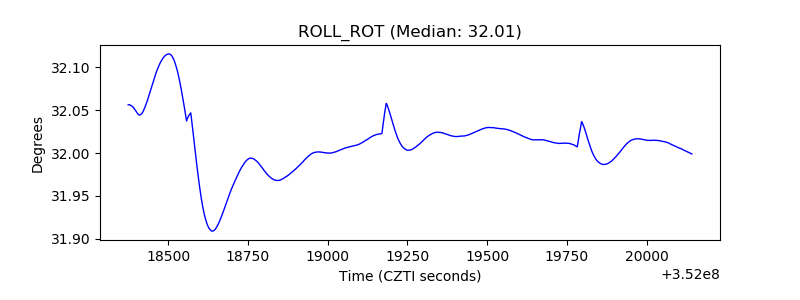

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

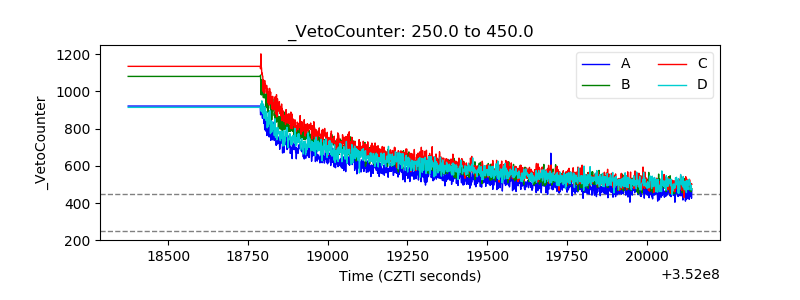

| Veto Counter |  |
