| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_021T10_9000004210_29285cztM0_level2.evt | modeM0/AS1A10_021T10_9000004210_29285cztM0_level2_quad_clean.evt |
| Size (bytes) | 662,483,520 | 85,573,440 |
| Size | 631.8 MB | 81.6 MB |
| Events in quadrant A | 3,147,025 | 575,321 |
| Events in quadrant B | 3,239,122 | 576,992 |
| Events in quadrant C | 4,109,890 | 523,622 |
| Events in quadrant D | 9,132,264 | 466,136 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13227 | 1 |
| B | 0 | 13478 | 1 |
| C | 0 | 16629 | 1 |
| D | 0 | 31655 | 3 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6430 | 92 | 1.430793% |
| B | 6430 | 116 | 1.804044% |
| C | 6431 | 337 | 5.240243% |
| D | 6430 | 1813 | 28.195956% |

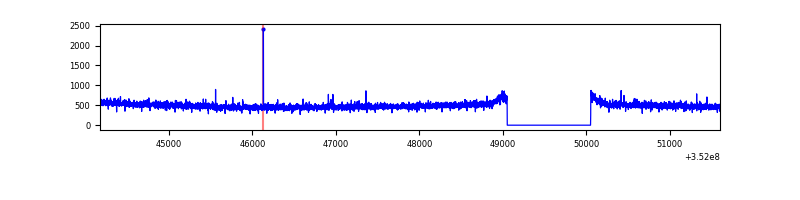

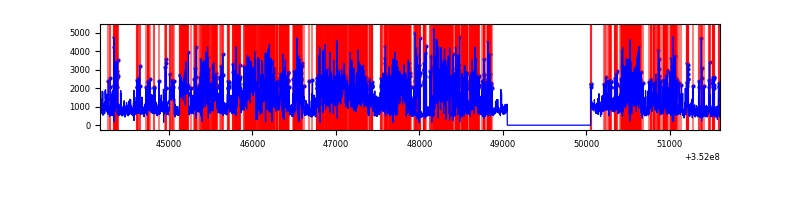

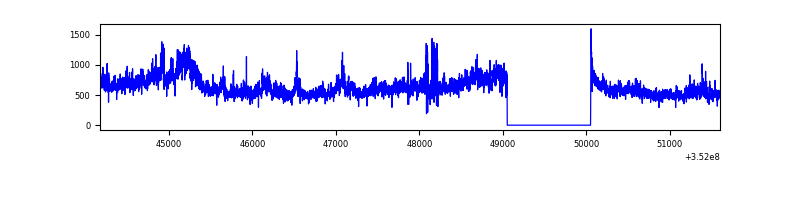

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7430 | 6431 | 1 | 1 | 0.01% | 0.02% |  |
| B | 7430 | 6431 | 11 | 11 | 0.15% | 0.17% |  |
| C | 7431 | 6432 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7429 | 6430 | 1511 | 1511 | 20.34% | 23.50% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 13632 | 79.07 | 813 | 795 | 162.4 |
| A | 3 | 137 | 7558 | 41.66 | 813 | 795 | 162.4 |
| A | 0 | 226 | 6965 | 38.0 | 813 | 795 | 162.4 |
| B | 10 | 245 | 41305 | 274.01 | 799 | 779 | 147.9 |
| B | 0 | 229 | 30603 | 201.65 | 799 | 779 | 147.9 |
| B | 12 | 111 | 17445 | 112.69 | 799 | 779 | 147.9 |
| C | 3 | 233 | 932014 | 5417.22 | 748 | 754 | 171.9 |
| C | 14 | 238 | 168995 | 978.67 | 748 | 754 | 171.9 |
| C | 14 | 254 | 70720 | 407.0 | 748 | 754 | 171.9 |
| D | 1 | 52 | 4623674 | 27531.59 | 709 | 692 | 167.9 |
| D | 8 | 195 | 1035925 | 6165.2 | 709 | 692 | 167.9 |
| D | 13 | 153 | 136178 | 806.87 | 709 | 692 | 167.9 |

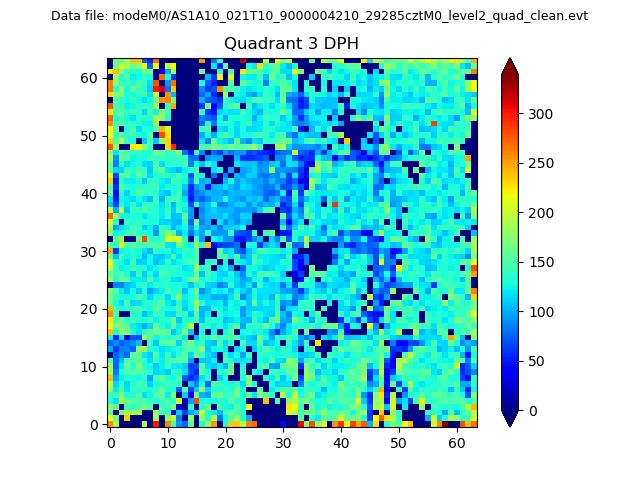

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

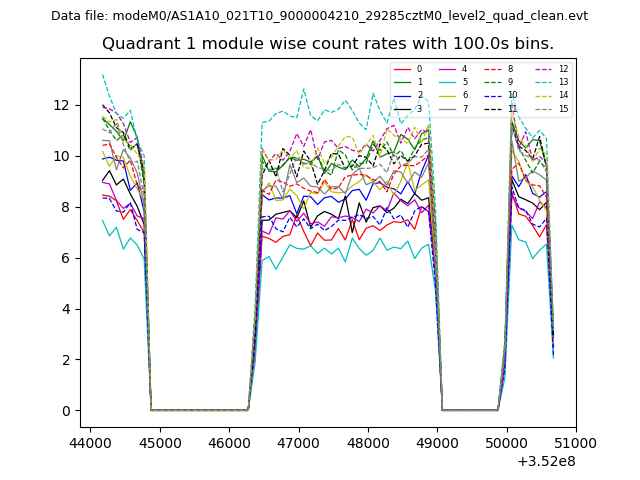

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

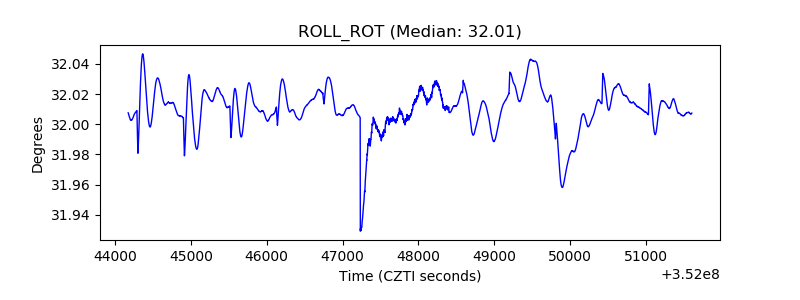

| _ROLL_ROT |  |

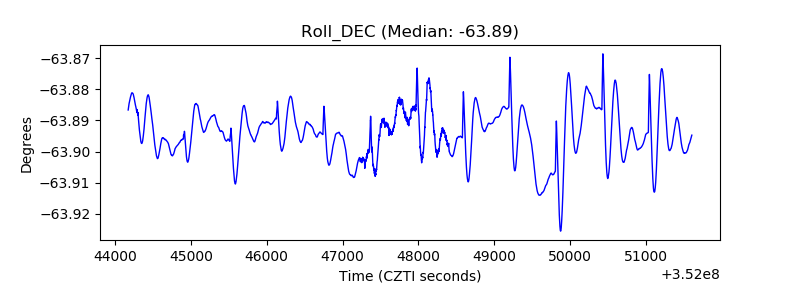

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
