| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_050T01_9000004212_29307cztM0_level2.evt | modeM0/AS1A10_050T01_9000004212_29307cztM0_level2_quad_clean.evt |
| Size (bytes) | 600,707,520 | 57,974,400 |
| Size | 572.9 MB | 55.3 MB |
| Events in quadrant A | 2,611,624 | 370,431 |
| Events in quadrant B | 3,339,410 | 374,454 |
| Events in quadrant C | 6,314,698 | 355,561 |
| Events in quadrant D | 5,607,221 | 322,472 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10814 | 1 |
| B | 0 | 13070 | 1 |
| C | 0 | 22165 | 1 |
| D | 0 | 19984 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 96 | 0 |
| B | 0 | 96 | 0 |
| C | 0 | 96 | 0 |
| D | 0 | 96 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4730 | 73 | 1.543340% |
| B | 4731 | 363 | 7.672796% |
| C | 4731 | 1064 | 22.489960% |
| D | 4731 | 1025 | 21.665610% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|

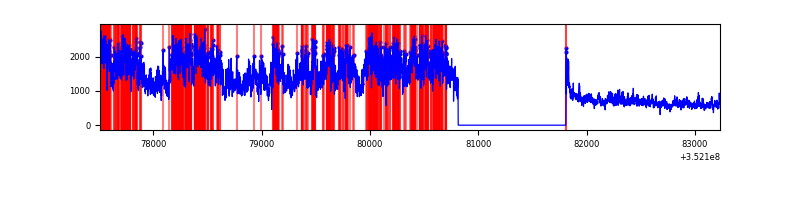

| A | 5725 | 4731 | 30 | 30 | 0.52% | 0.63% |  |
| B | 5726 | 4732 | 158 | 158 | 2.76% | 3.34% |  |

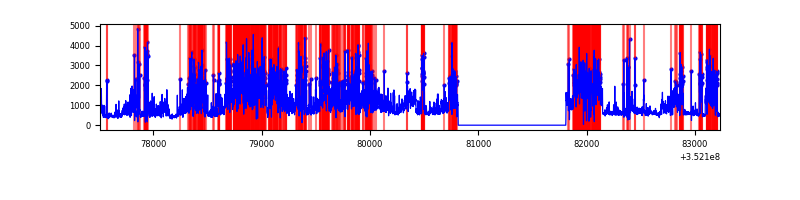

| C | 5726 | 4732 | 575 | 575 | 10.04% | 12.15% |  |
| D | 5726 | 4732 | 691 | 691 | 12.07% | 14.60% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 13 | 266599 | 2212.87 | 595 | 583 | 120.2 |
| A | 15 | 174 | 33052 | 270.1 | 595 | 583 | 120.2 |
| A | 1 | 113 | 16135 | 129.37 | 595 | 583 | 120.2 |
| B | 5 | 255 | 1013518 | 9081.56 | 580 | 565 | 111.5 |
| B | 10 | 245 | 33087 | 291.57 | 580 | 565 | 111.5 |
| B | 12 | 111 | 13137 | 112.71 | 580 | 565 | 111.5 |
| C | 3 | 233 | 4041414 | 30887.84 | 555 | 560 | 130.8 |
| C | 14 | 238 | 86099 | 653.85 | 555 | 560 | 130.8 |
| C | 2 | 114 | 11600 | 84.39 | 555 | 560 | 130.8 |
| D | 1 | 52 | 2757418 | 21749.94 | 527 | 515 | 126.8 |
| D | 7 | 80 | 293431 | 2310.89 | 527 | 515 | 126.8 |
| D | 8 | 195 | 270820 | 2132.51 | 527 | 515 | 126.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

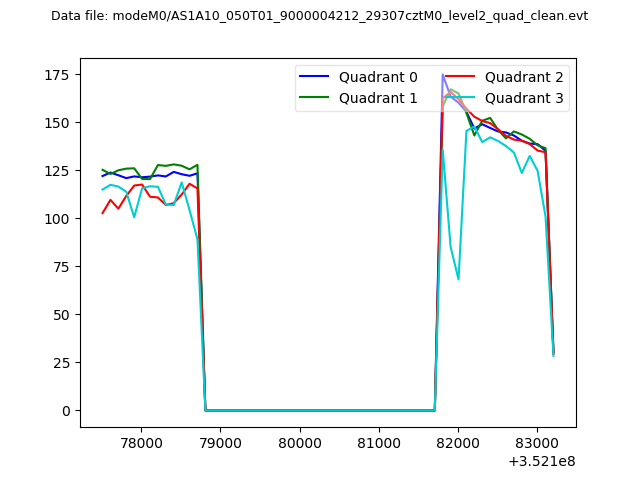

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

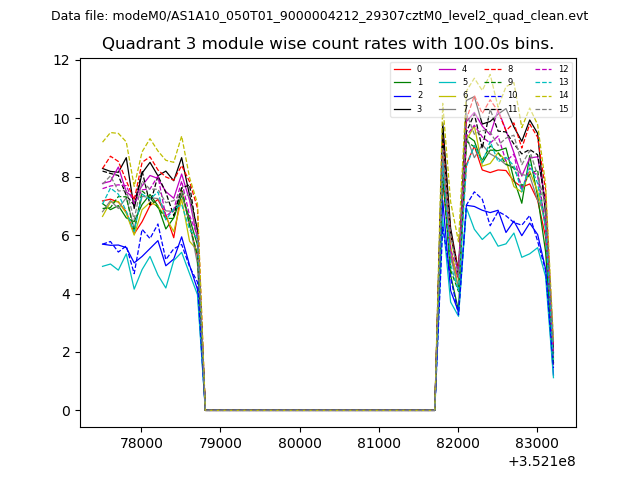

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

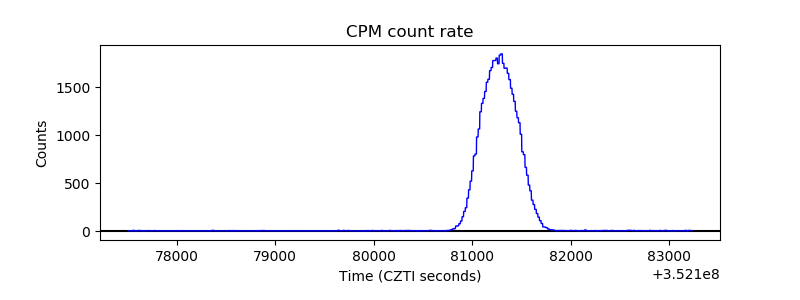

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

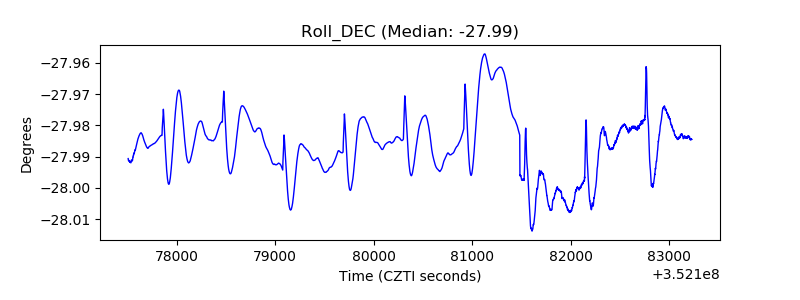

| _Roll_DEC |  |

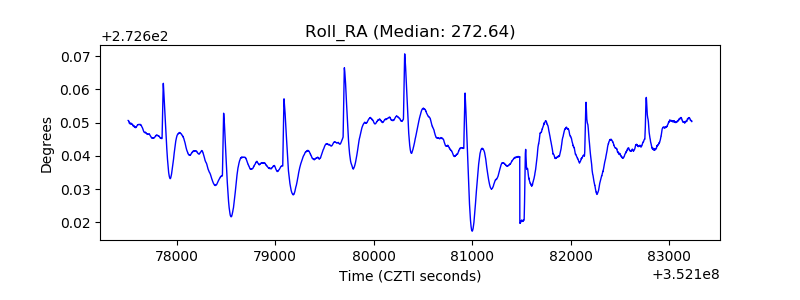

| _Roll_RA |  |

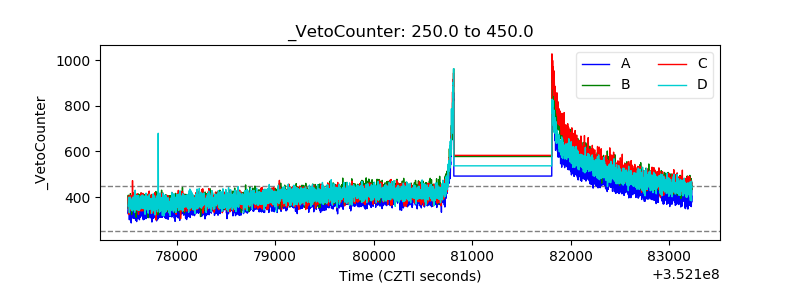

| Veto Counter |  |
