| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_050T03_9000004216_29323cztM0_level2.evt | modeM0/AS1A10_050T03_9000004216_29323cztM0_level2_quad_clean.evt |
| Size (bytes) | 493,876,800 | 88,228,800 |
| Size | 471.0 MB | 84.1 MB |
| Events in quadrant A | 2,940,522 | 576,093 |
| Events in quadrant B | 4,117,224 | 555,789 |
| Events in quadrant C | 3,501,787 | 565,065 |
| Events in quadrant D | 3,986,689 | 551,824 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 0 |
| B | 0 | 124 | 0 |
| C | 0 | 124 | 0 |
| D | 0 | 124 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12507 | 1 |
| B | 0 | 16312 | 1 |
| C | 0 | 14129 | 1 |
| D | 0 | 15883 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6055 | 15 | 0.247729% |
| B | 6055 | 400 | 6.606111% |
| C | 6055 | 82 | 1.354253% |
| D | 6056 | 60 | 0.990753% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7135 | 6056 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7135 | 6056 | 242 | 242 | 3.39% | 4.00% |  |
| C | 7135 | 6056 | 7 | 7 | 0.10% | 0.12% |  |
| D | 7136 | 6057 | 36 | 36 | 0.50% | 0.59% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 12360 | 75.52 | 759 | 744 | 153.8 |
| A | 1 | 113 | 7684 | 45.12 | 759 | 744 | 153.8 |
| A | 3 | 137 | 6900 | 40.02 | 759 | 744 | 153.8 |
| B | 10 | 245 | 1061939 | 7649.45 | 733 | 715 | 138.7 |
| B | 0 | 190 | 98029 | 701.45 | 733 | 715 | 138.7 |
| B | 15 | 33 | 33631 | 237.26 | 733 | 715 | 138.7 |
| C | 3 | 233 | 443604 | 2552.27 | 738 | 746 | 173.5 |
| C | 14 | 238 | 121220 | 694.31 | 738 | 746 | 173.5 |
| C | 10 | 9 | 33466 | 188.57 | 738 | 746 | 173.5 |
| D | 8 | 195 | 465135 | 2573.58 | 745 | 726 | 180.5 |
| D | 1 | 52 | 455257 | 2518.84 | 745 | 726 | 180.5 |
| D | 13 | 153 | 97908 | 538.55 | 745 | 726 | 180.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

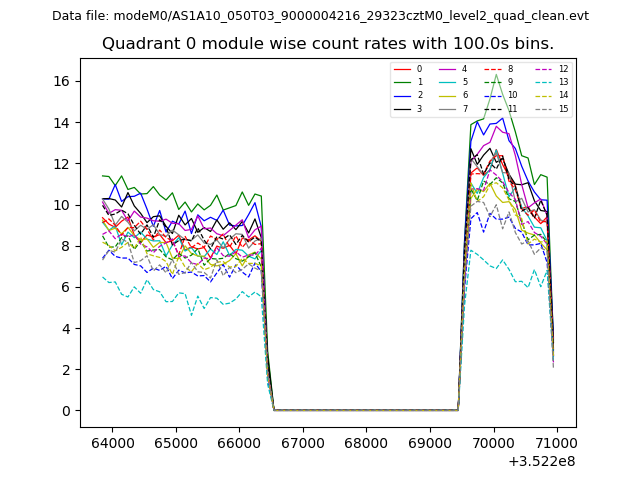

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

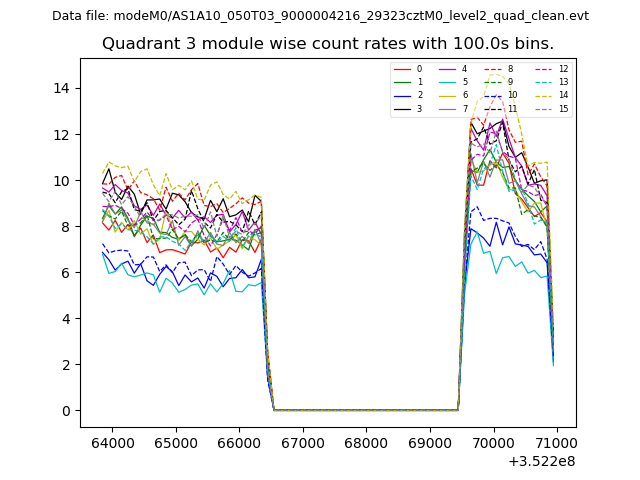

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

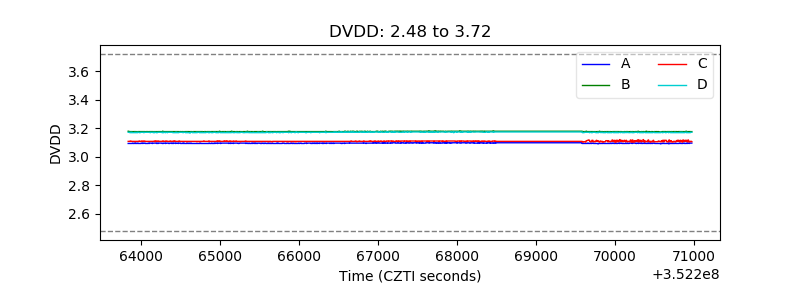

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

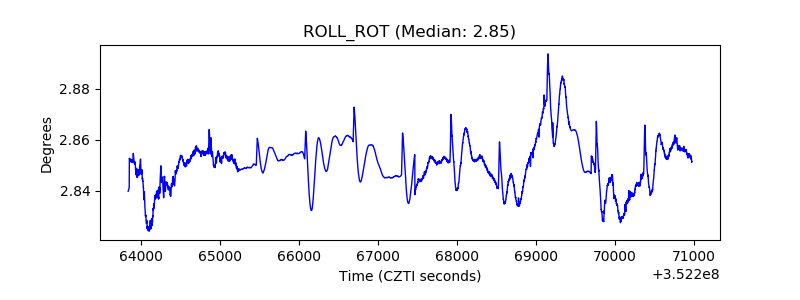

| _ROLL_ROT |  |
| _Roll_DEC |  |

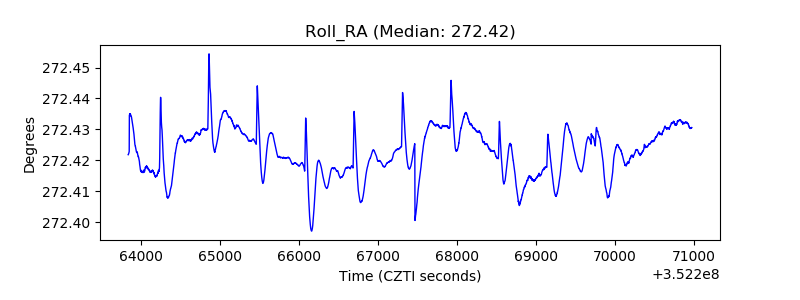

| _Roll_RA |  |
| Veto Counter |  |
