| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_050T03_9000004216_29325cztM0_level2.evt | modeM0/AS1A10_050T03_9000004216_29325cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,166,345,280 | 147,620,160 |
| Size | 1.1 GB | 140.8 MB |
| Events in quadrant A | 5,488,428 | 973,520 |
| Events in quadrant B | 7,211,195 | 980,185 |
| Events in quadrant C | 6,042,965 | 954,211 |
| Events in quadrant D | 15,858,670 | 821,594 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 25 | 0 |
| B | 0 | 25 | 0 |
| C | 0 | 25 | 0 |
| D | 0 | 25 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 216 | 0 |
| B | 0 | 216 | 0 |
| C | 0 | 216 | 0 |
| D | 0 | 216 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22582 | 2 |
| B | 0 | 28336 | 2 |
| C | 0 | 24783 | 2 |
| D | 0 | 54278 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 10708 | 49 | 0.457602% |
| B | 10709 | 556 | 5.191895% |
| C | 10709 | 157 | 1.466057% |
| D | 10709 | 4438 | 41.441778% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 13148 | 10710 | 0 | 0 | 0.00% | 0.00% |  |
| B | 13149 | 10711 | 269 | 269 | 2.05% | 2.51% |  |
| C | 13149 | 10711 | 0 | 0 | 0.00% | 0.00% |  |
| D | 13149 | 10711 | 3915 | 3915 | 29.77% | 36.55% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 21844 | 72.61 | 1417 | 1390 | 281.7 |
| A | 3 | 137 | 12337 | 38.86 | 1417 | 1390 | 281.7 |
| A | 0 | 226 | 12185 | 38.32 | 1417 | 1390 | 281.7 |
| B | 10 | 245 | 1381409 | 5362.31 | 1376 | 1345 | 257.4 |
| B | 0 | 190 | 240300 | 928.47 | 1376 | 1345 | 257.4 |
| B | 5 | 172 | 81605 | 311.85 | 1376 | 1345 | 257.4 |
| C | 3 | 233 | 427103 | 1338.41 | 1367 | 1379 | 318.1 |
| C | 14 | 238 | 225630 | 705.01 | 1367 | 1379 | 318.1 |
| C | 2 | 114 | 26320 | 78.41 | 1367 | 1379 | 318.1 |
| D | 12 | 33 | 9743038 | 37336.03 | 1103 | 1076 | 260.9 |
| D | 8 | 195 | 864173 | 3307.82 | 1103 | 1076 | 260.9 |
| D | 7 | 223 | 413123 | 1579.17 | 1103 | 1076 | 260.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

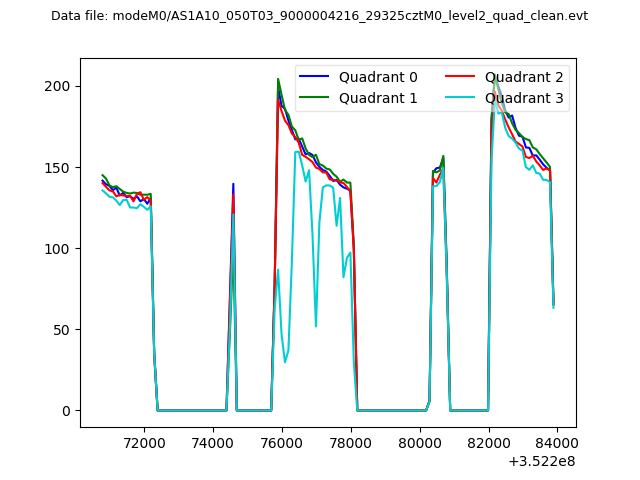

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

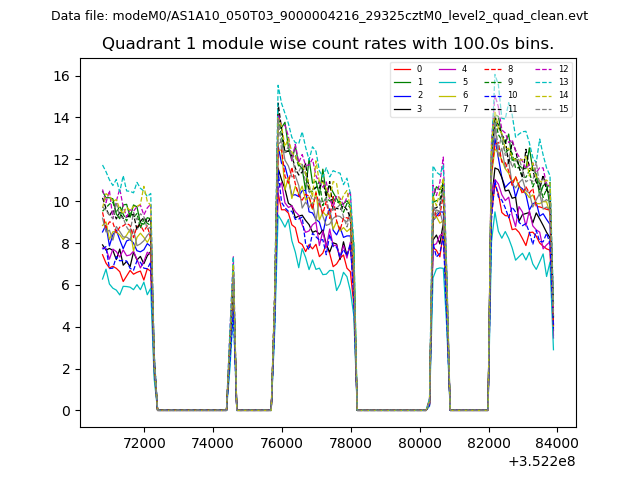

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

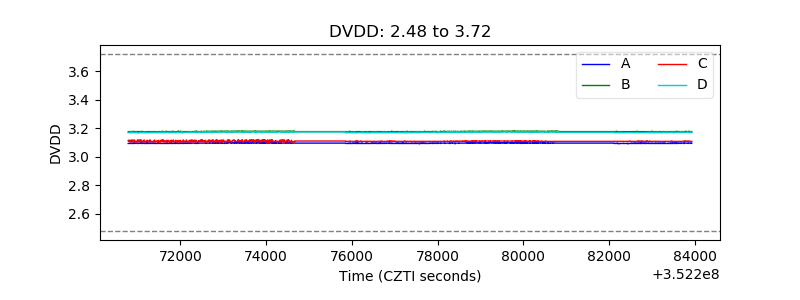

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

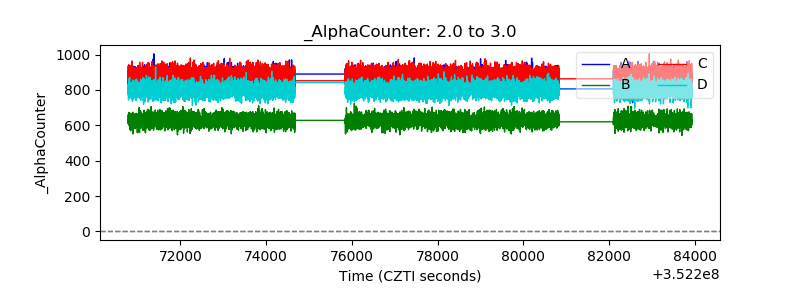

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

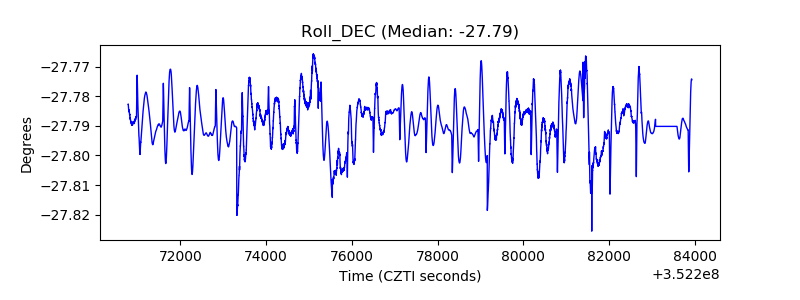

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
