| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_279T01_9000004218_29339cztM0_level2.evt | modeM0/AS1T03_279T01_9000004218_29339cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,381,248,000 | 164,707,200 |
| Size | 1.3 GB | 157.1 MB |
| Events in quadrant A | 5,823,608 | 1,175,838 |
| Events in quadrant B | 6,236,807 | 1,197,787 |
| Events in quadrant C | 6,518,386 | 1,144,015 |
| Events in quadrant D | 22,481,511 | 677,254 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 232 | 0 |
| B | 0 | 232 | 0 |
| C | 0 | 232 | 0 |
| D | 0 | 232 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 24 | 0 |
| B | 0 | 25 | 0 |
| C | 0 | 25 | 0 |
| D | 0 | 25 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 24231 | 3 |
| B | 0 | 25593 | 3 |
| C | 0 | 26484 | 4 |
| D | 0 | 74630 | 3 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 11444 | 63 | 0.550507% |
| B | 11444 | 118 | 1.031108% |
| C | 11443 | 372 | 3.250896% |
| D | 11443 | 7211 | 63.016691% |

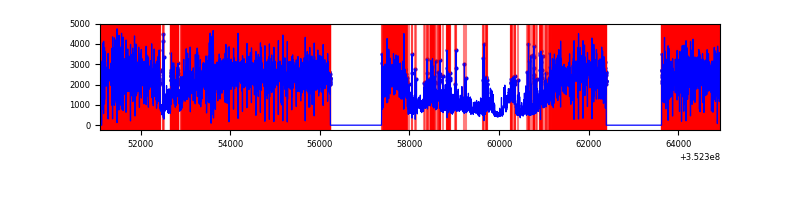

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 13839 | 11447 | 3 | 3 | 0.02% | 0.03% |  |
| B | 13839 | 11447 | 21 | 21 | 0.15% | 0.18% |  |
| C | 13838 | 11446 | 7 | 7 | 0.05% | 0.06% |  |
| D | 13838 | 11446 | 6404 | 6404 | 46.28% | 55.95% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 24190 | 76.62 | 1500 | 1473 | 296.5 |
| A | 15 | 174 | 13725 | 41.32 | 1500 | 1473 | 296.5 |
| A | 3 | 137 | 13239 | 39.68 | 1500 | 1473 | 296.5 |
| B | 5 | 172 | 116029 | 417.58 | 1490 | 1459 | 274.4 |
| B | 10 | 245 | 102473 | 368.17 | 1490 | 1459 | 274.4 |
| B | 15 | 33 | 49185 | 173.95 | 1490 | 1459 | 274.4 |
| C | 3 | 233 | 357721 | 1054.56 | 1458 | 1476 | 337.8 |
| C | 14 | 238 | 291707 | 859.15 | 1458 | 1476 | 337.8 |
| C | 14 | 254 | 84059 | 244.46 | 1458 | 1476 | 337.8 |
| D | 12 | 33 | 13594390 | 60950.45 | 950 | 927 | 223.0 |
| D | 13 | 104 | 1537729 | 6890.72 | 950 | 927 | 223.0 |
| D | 7 | 80 | 1532206 | 6865.96 | 950 | 927 | 223.0 |

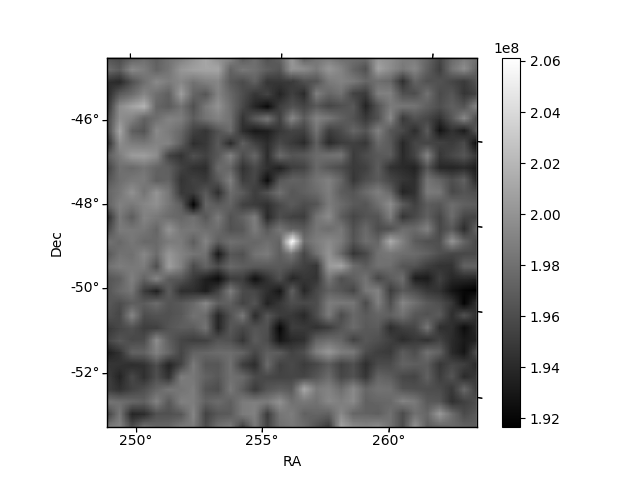

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

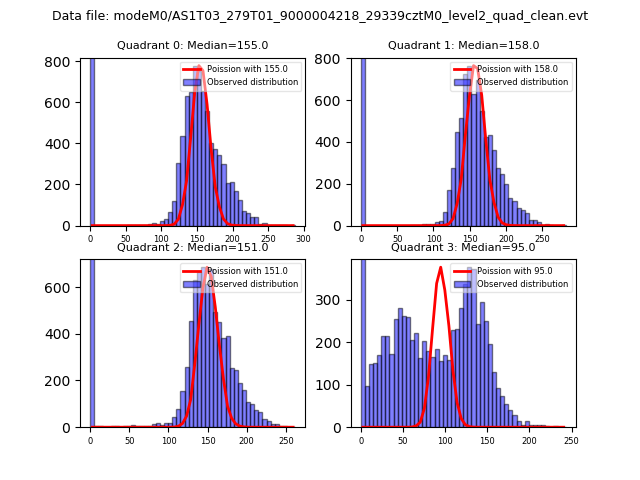

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

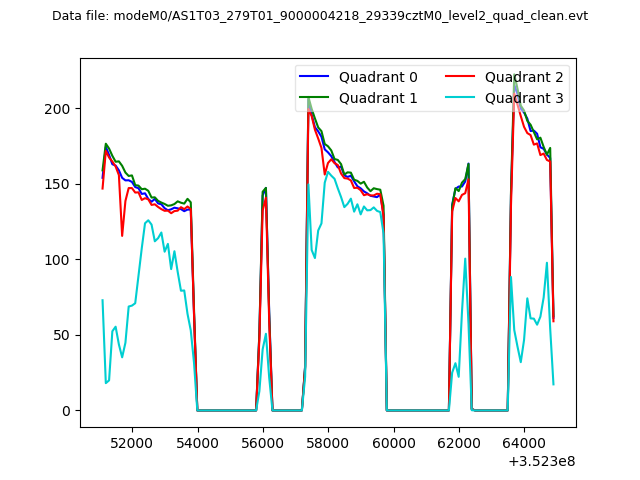

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

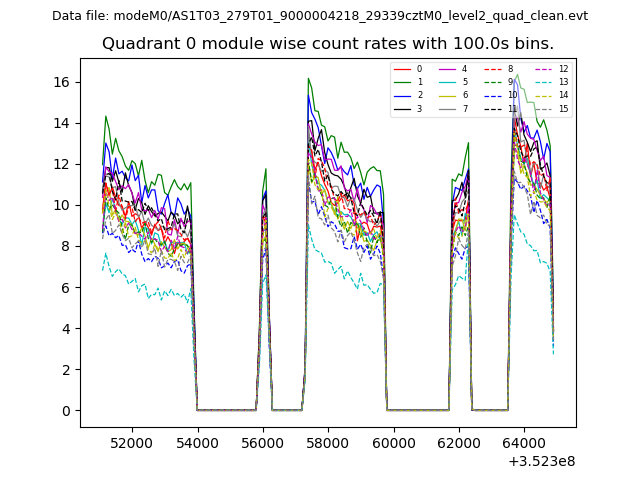

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

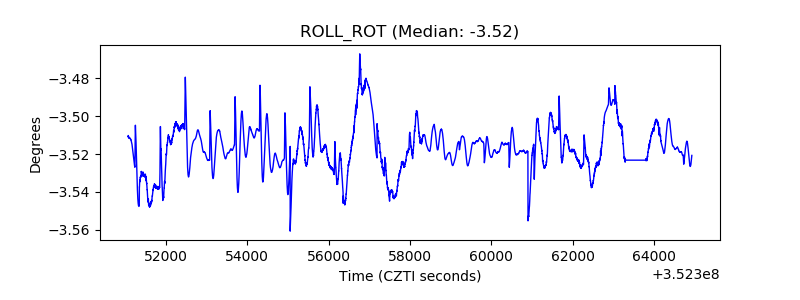

| _ROLL_ROT |  |

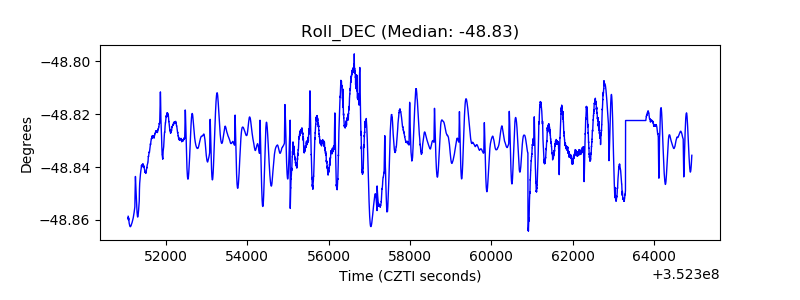

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
