| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_279T01_9000004218_29342cztM0_level2.evt | modeM0/AS1T03_279T01_9000004218_29342cztM0_level2_quad_clean.evt |
| Size (bytes) | 803,548,800 | 76,659,840 |
| Size | 766.3 MB | 73.1 MB |
| Events in quadrant A | 3,209,526 | 542,730 |
| Events in quadrant B | 3,473,535 | 545,159 |
| Events in quadrant C | 3,584,452 | 512,650 |
| Events in quadrant D | 13,651,814 | 289,978 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 0 |
| B | 0 | 124 | 0 |
| C | 0 | 124 | 0 |
| D | 0 | 124 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12954 | 1 |
| B | 0 | 13861 | 1 |
| C | 0 | 14377 | 1 |
| D | 0 | 44696 | 3 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6153 | 70 | 1.137656% |
| B | 6153 | 77 | 1.251422% |
| C | 6153 | 251 | 4.079311% |
| D | 6153 | 5162 | 83.894035% |

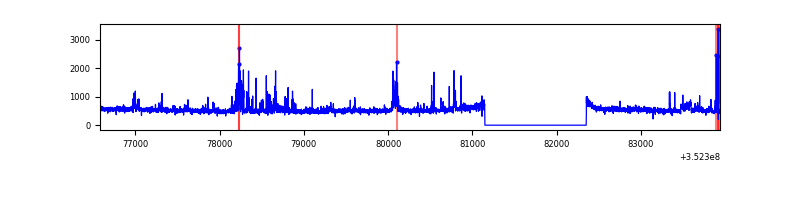

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7359 | 6155 | 1 | 1 | 0.01% | 0.02% |  |
| B | 7359 | 6155 | 7 | 7 | 0.10% | 0.11% |  |
| C | 7359 | 6155 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7359 | 6155 | 4333 | 4333 | 58.88% | 70.40% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 13724 | 79.4 | 827 | 812 | 162.6 |
| A | 13 | 254 | 12850 | 74.02 | 827 | 812 | 162.6 |
| A | 3 | 137 | 7076 | 38.52 | 827 | 812 | 162.6 |
| B | 10 | 245 | 117649 | 790.14 | 808 | 792 | 147.9 |
| B | 5 | 172 | 79199 | 530.16 | 808 | 792 | 147.9 |
| B | 0 | 245 | 21592 | 140.64 | 808 | 792 | 147.9 |
| C | 3 | 233 | 281947 | 1585.28 | 775 | 782 | 177.4 |
| C | 14 | 238 | 175124 | 982.99 | 775 | 782 | 177.4 |
| C | 14 | 254 | 73009 | 407.23 | 775 | 782 | 177.4 |
| D | 12 | 33 | 8906351 | 69504.88 | 536 | 522 | 128.1 |
| D | 1 | 52 | 1691178 | 13194.6 | 536 | 522 | 128.1 |
| D | 13 | 104 | 452814 | 3529.88 | 536 | 522 | 128.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

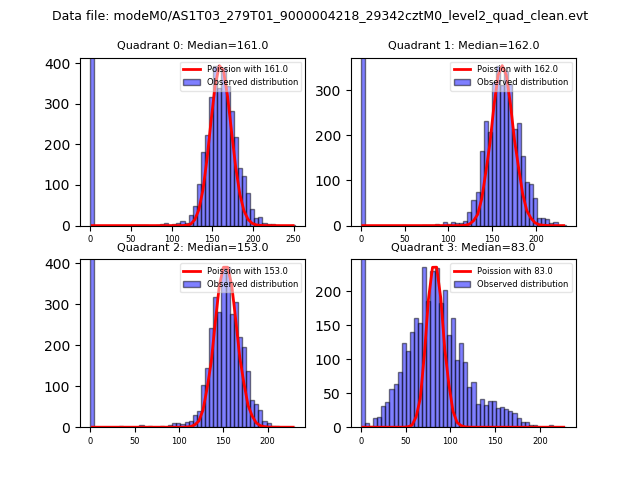

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

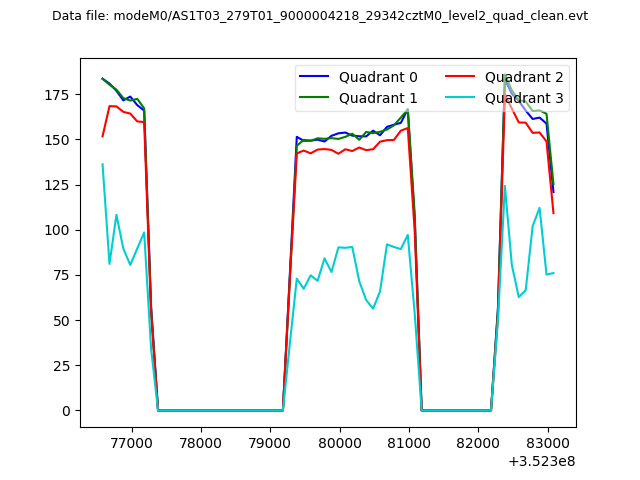

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

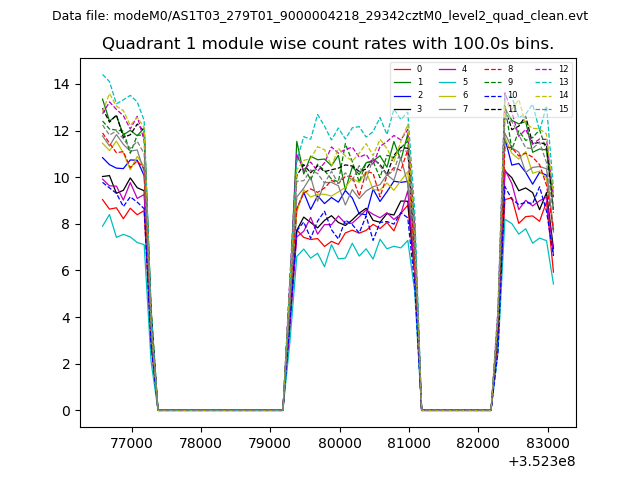

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

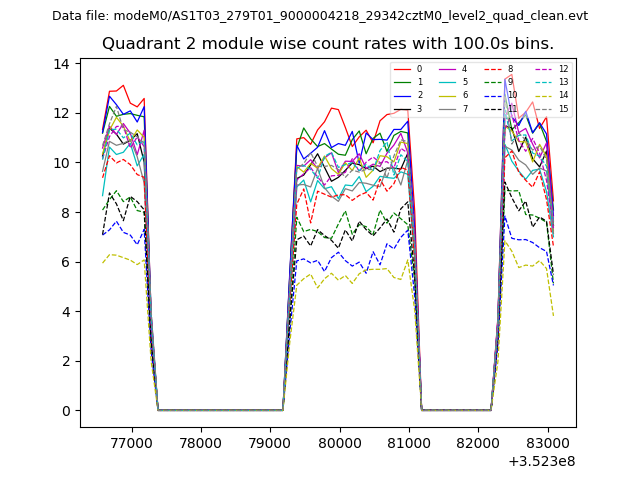

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

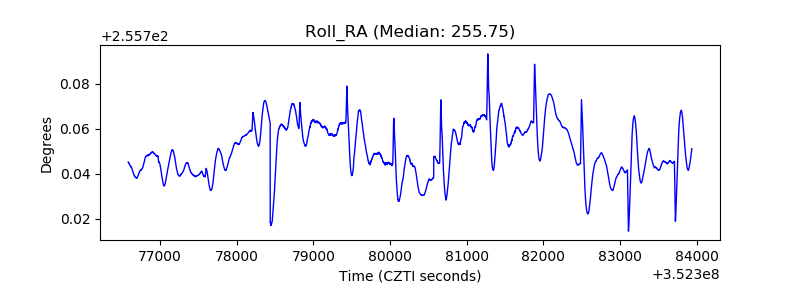

| _ROLL_ROT |  |

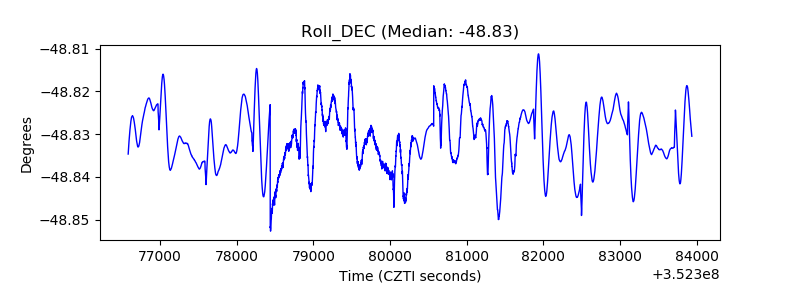

| _Roll_DEC |  |
| _Roll_RA |  |

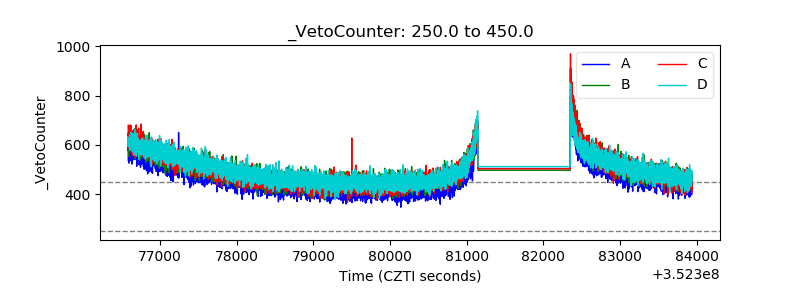

| Veto Counter |  |
