| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_279T01_9000004218_29360cztM0_level2.evt | modeM0/AS1T03_279T01_9000004218_29360cztM0_level2_quad_clean.evt |
| Size (bytes) | 914,215,680 | 79,490,880 |
| Size | 871.9 MB | 75.8 MB |
| Events in quadrant A | 3,329,087 | 529,619 |
| Events in quadrant B | 3,552,556 | 530,552 |
| Events in quadrant C | 7,509,141 | 481,626 |
| Events in quadrant D | 12,834,296 | 386,651 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 138 | 0 |
| B | 0 | 138 | 0 |
| C | 0 | 138 | 0 |
| D | 0 | 138 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 2 | 0 |
| B | 0 | 2 | 0 |
| C | 0 | 2 | 0 |
| D | 0 | 2 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14324 | 0 |
| B | 0 | 14837 | 0 |
| C | 0 | 27267 | 0 |
| D | 0 | 42772 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6855 | 156 | 2.275711% |
| B | 6855 | 202 | 2.946754% |
| C | 6855 | 1059 | 15.448578% |
| D | 6856 | 3974 | 57.963827% |

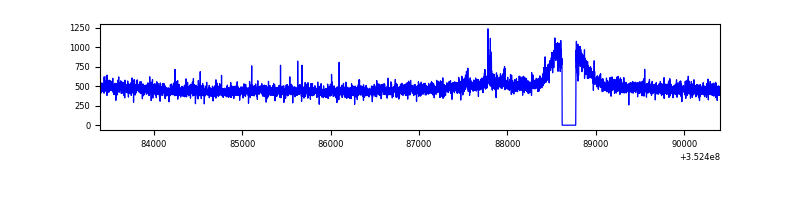

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7010 | 6856 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7010 | 6856 | 17 | 17 | 0.24% | 0.25% |  |
| C | 7010 | 6856 | 499 | 499 | 7.12% | 7.28% |  |
| D | 7011 | 6857 | 3636 | 3636 | 51.86% | 53.03% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 235 | 25138 | 140.08 | 854 | 836 | 173.5 |
| A | 13 | 254 | 14025 | 76.02 | 854 | 836 | 173.5 |
| A | 3 | 137 | 8084 | 41.78 | 854 | 836 | 173.5 |
| B | 5 | 255 | 70055 | 434.36 | 840 | 818 | 159.4 |
| B | 5 | 172 | 65730 | 407.23 | 840 | 818 | 159.4 |
| B | 0 | 190 | 23313 | 141.12 | 840 | 818 | 159.4 |
| C | 3 | 233 | 4170774 | 22618.08 | 786 | 792 | 184.4 |
| C | 14 | 238 | 169731 | 916.33 | 786 | 792 | 184.4 |
| C | 14 | 254 | 69933 | 375.02 | 786 | 792 | 184.4 |
| D | 1 | 52 | 8522705 | 56144.55 | 629 | 611 | 151.8 |
| D | 12 | 233 | 694495 | 4571.39 | 629 | 611 | 151.8 |
| D | 13 | 153 | 654985 | 4311.09 | 629 | 611 | 151.8 |

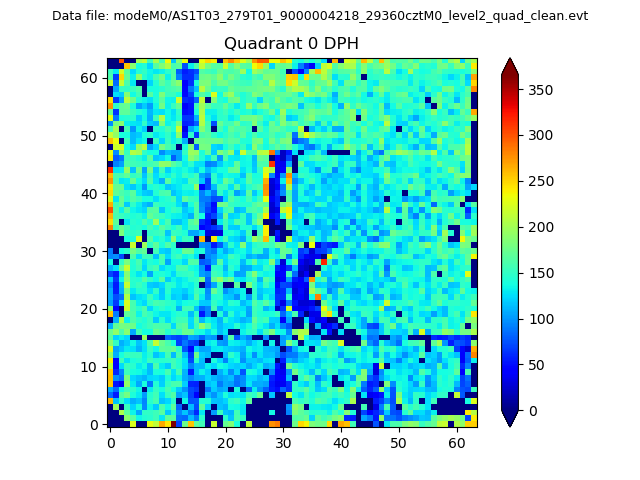

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

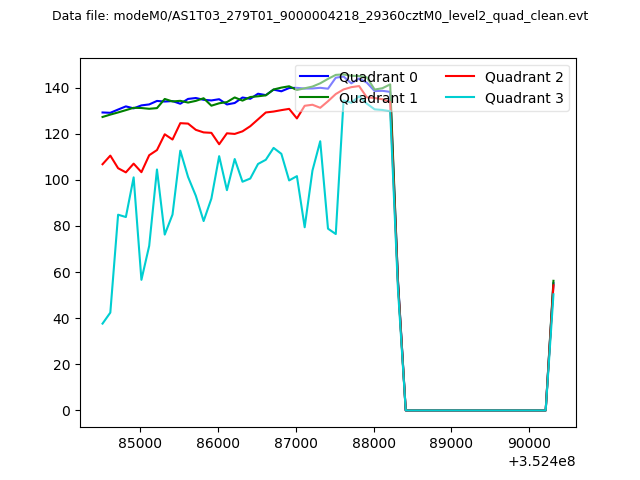

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

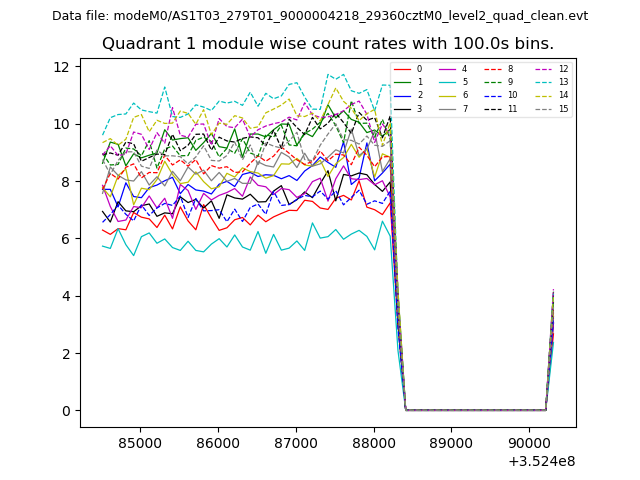

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

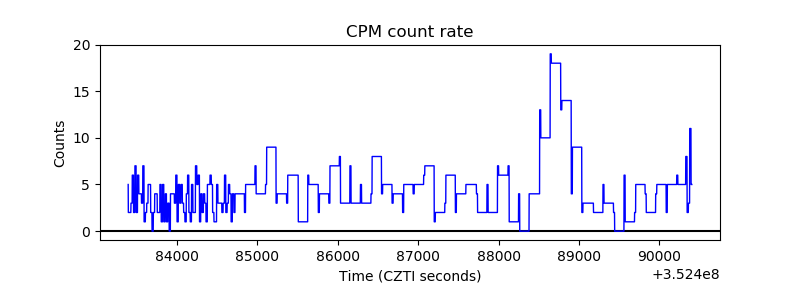

| _CPM_Rate |  |

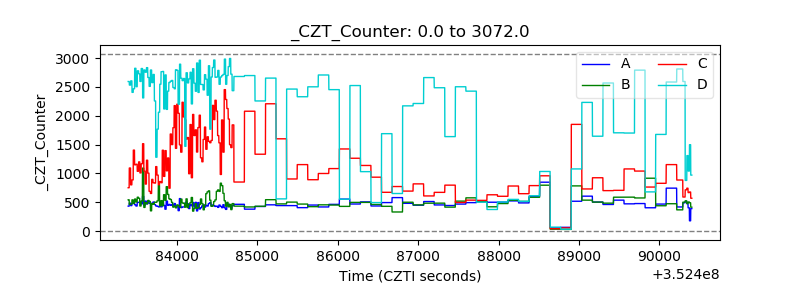

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

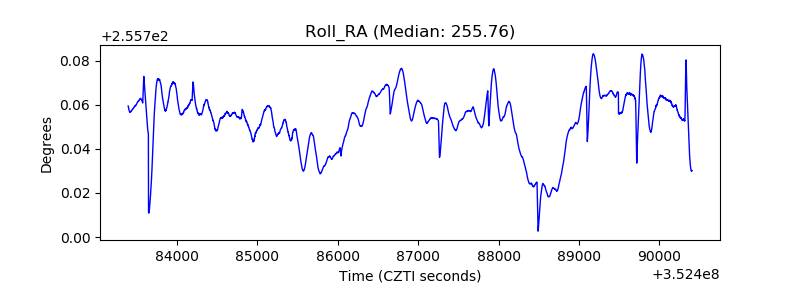

| _Roll_RA |  |

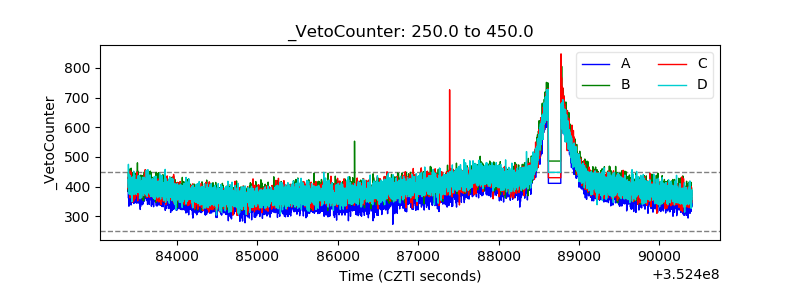

| Veto Counter |  |
