| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_279T01_9000004218_29365cztM0_level2.evt | modeM0/AS1T03_279T01_9000004218_29365cztM0_level2_quad_clean.evt |
| Size (bytes) | 697,374,720 | 103,063,680 |
| Size | 665.1 MB | 98.3 MB |
| Events in quadrant A | 3,280,930 | 686,869 |
| Events in quadrant B | 3,566,213 | 702,530 |
| Events in quadrant C | 6,996,687 | 634,103 |
| Events in quadrant D | 6,825,288 | 632,240 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20 | 0 |
| B | 0 | 20 | 0 |
| C | 0 | 20 | 0 |
| D | 0 | 20 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13922 | 1 |
| B | 0 | 14772 | 1 |
| C | 0 | 25601 | 1 |
| D | 0 | 24882 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6681 | 40 | 0.598713% |
| B | 6681 | 89 | 1.332136% |
| C | 6680 | 1085 | 16.242515% |
| D | 6680 | 865 | 12.949102% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8616 | 6683 | 2 | 2 | 0.02% | 0.03% |  |
| B | 8616 | 6683 | 15 | 15 | 0.17% | 0.22% |  |
| C | 8615 | 6682 | 153 | 153 | 1.78% | 2.29% |  |
| D | 8615 | 6682 | 618 | 618 | 7.17% | 9.25% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 13 | 41600 | 241.82 | 837 | 822 | 168.6 |
| A | 13 | 254 | 14145 | 79.01 | 837 | 822 | 168.6 |
| A | 3 | 137 | 8074 | 43.01 | 837 | 822 | 168.6 |
| B | 10 | 245 | 173377 | 1077.65 | 840 | 819 | 160.1 |
| B | 5 | 255 | 27358 | 165.74 | 840 | 819 | 160.1 |
| B | 15 | 32 | 22575 | 135.87 | 840 | 819 | 160.1 |
| C | 3 | 233 | 3577973 | 19779.61 | 770 | 774 | 180.9 |
| C | 14 | 238 | 225097 | 1240.36 | 770 | 774 | 180.9 |
| C | 14 | 254 | 145363 | 799.48 | 770 | 774 | 180.9 |
| D | 1 | 52 | 2342643 | 12517.92 | 780 | 760 | 187.1 |
| D | 12 | 227 | 669826 | 3576.31 | 780 | 760 | 187.1 |
| D | 7 | 80 | 239404 | 1275.61 | 780 | 760 | 187.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

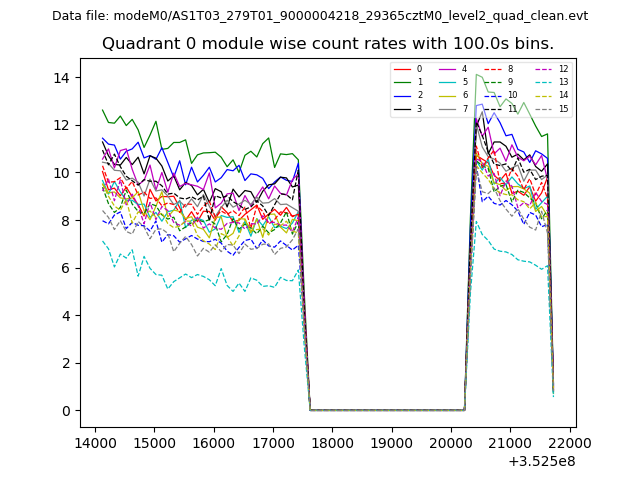

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

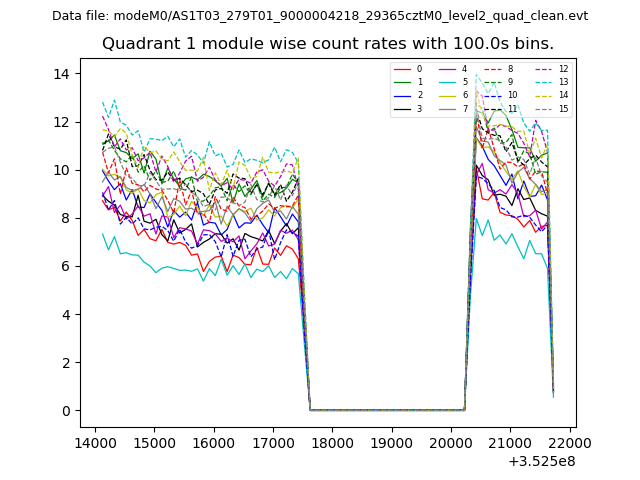

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

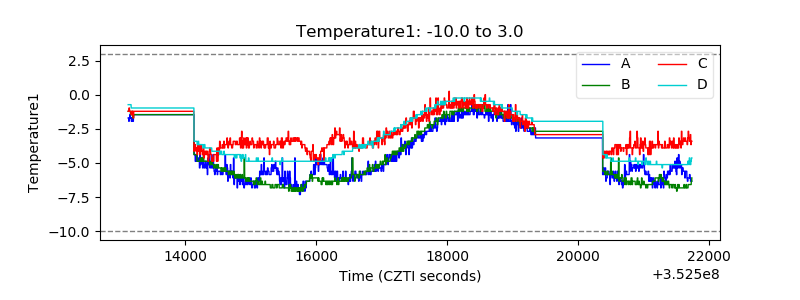

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

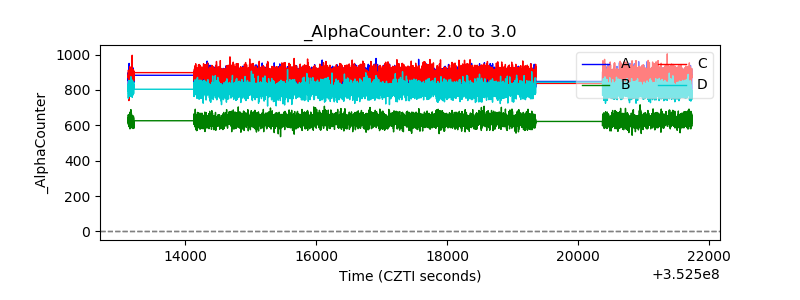

| Alpha Counter |  |

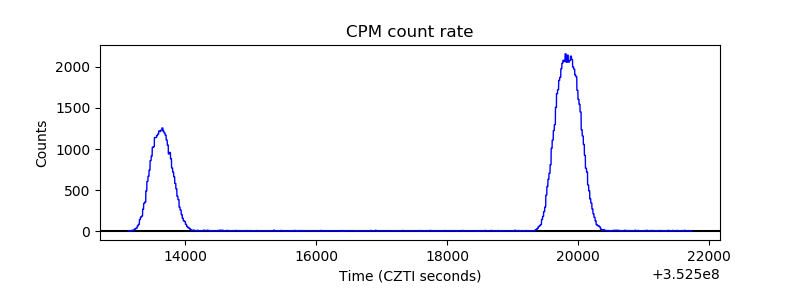

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
