| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_279T01_9000004218_29368cztM0_level2.evt | modeM0/AS1T03_279T01_9000004218_29368cztM0_level2_quad_clean.evt |
| Size (bytes) | 578,640,960 | 90,475,200 |
| Size | 551.8 MB | 86.3 MB |
| Events in quadrant A | 2,921,298 | 600,724 |
| Events in quadrant B | 3,014,863 | 612,993 |
| Events in quadrant C | 5,884,449 | 578,732 |
| Events in quadrant D | 5,320,331 | 551,362 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 114 | 0 |
| B | 0 | 114 | 0 |
| C | 0 | 114 | 0 |
| D | 0 | 114 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12026 | 1 |
| B | 0 | 12338 | 1 |
| C | 0 | 21445 | 1 |
| D | 0 | 19722 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5666 | 18 | 0.317684% |
| B | 5667 | 42 | 0.741133% |
| C | 5667 | 925 | 16.322569% |
| D | 5667 | 529 | 9.334745% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

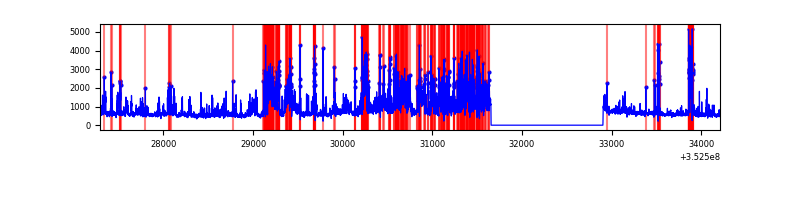

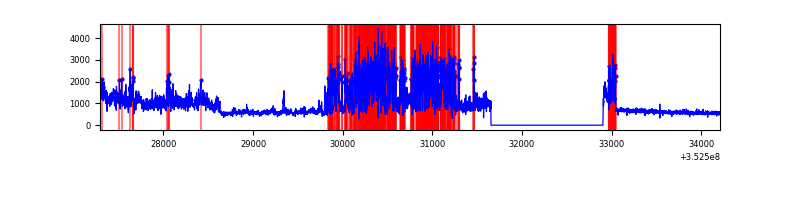

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6916 | 5667 | 0 | 0 | 0.00% | 0.00% |  |
| B | 6917 | 5668 | 6 | 6 | 0.09% | 0.11% |  |
| C | 6917 | 5668 | 522 | 522 | 7.55% | 9.21% |  |
| D | 6917 | 5668 | 411 | 411 | 5.94% | 7.25% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 13 | 20631 | 133.69 | 751 | 739 | 148.8 |
| A | 13 | 254 | 11138 | 69.89 | 751 | 739 | 148.8 |
| A | 3 | 137 | 6479 | 38.58 | 751 | 739 | 148.8 |
| B | 0 | 182 | 22804 | 159.89 | 745 | 728 | 138.1 |
| B | 10 | 245 | 20204 | 141.06 | 745 | 728 | 138.1 |
| B | 12 | 111 | 15815 | 109.27 | 745 | 728 | 138.1 |
| C | 10 | 9 | 1990555 | 12180.28 | 705 | 712 | 163.4 |
| C | 3 | 233 | 1005552 | 6150.85 | 705 | 712 | 163.4 |
| C | 14 | 238 | 119004 | 724.09 | 705 | 712 | 163.4 |
| D | 1 | 52 | 1554149 | 9104.44 | 718 | 701 | 170.6 |
| D | 7 | 80 | 486185 | 2845.32 | 718 | 701 | 170.6 |
| D | 8 | 195 | 311987 | 1824.38 | 718 | 701 | 170.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

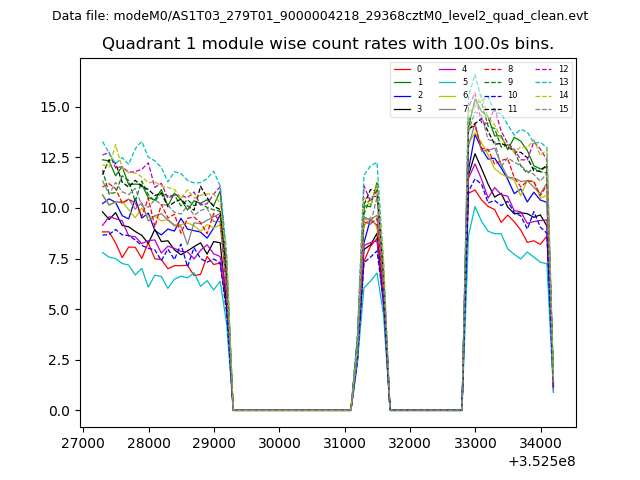

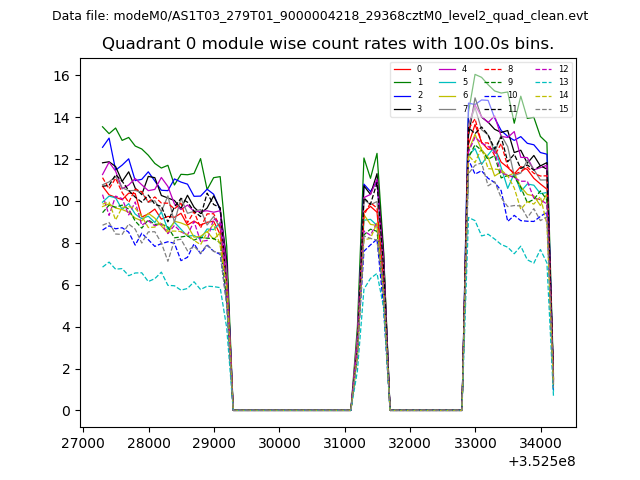

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

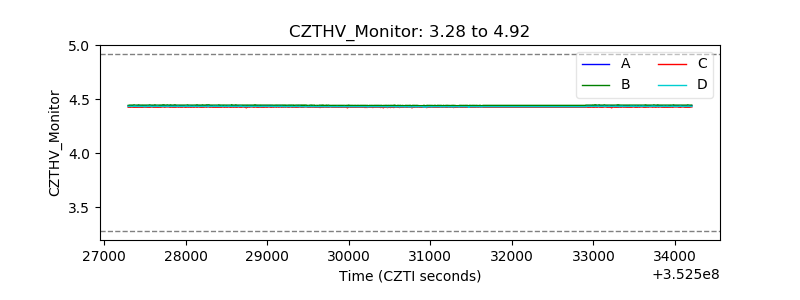

| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

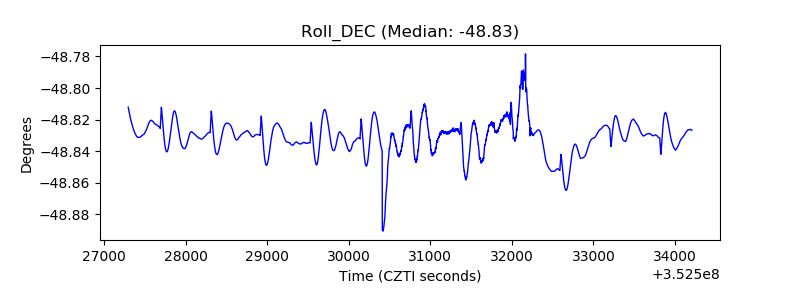

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
