| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_279T01_9000004218_29373cztM0_level2.evt | modeM0/AS1T03_279T01_9000004218_29373cztM0_level2_quad_clean.evt |
| Size (bytes) | 768,551,040 | 76,083,840 |
| Size | 732.9 MB | 72.6 MB |
| Events in quadrant A | 3,372,064 | 486,603 |
| Events in quadrant B | 3,619,189 | 486,650 |
| Events in quadrant C | 3,854,594 | 464,277 |
| Events in quadrant D | 11,967,627 | 389,597 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 140 | 0 |
| B | 0 | 140 | 0 |
| C | 0 | 140 | 0 |
| D | 0 | 140 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 4 | 0 |
| B | 0 | 4 | 0 |
| C | 0 | 4 | 0 |
| D | 0 | 4 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14326 | 1 |
| B | 0 | 14887 | 1 |
| C | 0 | 15589 | 1 |
| D | 0 | 40296 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6826 | 145 | 2.124231% |
| B | 6827 | 238 | 3.486158% |
| C | 6827 | 248 | 3.632635% |
| D | 6827 | 3364 | 49.274938% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7286 | 6827 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7287 | 6828 | 36 | 36 | 0.49% | 0.53% |  |
| C | 7287 | 6828 | 1 | 1 | 0.01% | 0.01% |  |
| D | 7287 | 6827 | 2846 | 2846 | 39.06% | 41.69% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 235 | 56238 | 320.25 | 857 | 839 | 173.0 |
| A | 13 | 254 | 14000 | 76.08 | 857 | 839 | 173.0 |
| A | 3 | 137 | 8231 | 42.73 | 857 | 839 | 173.0 |
| B | 0 | 229 | 178879 | 1115.36 | 843 | 823 | 159.6 |
| B | 10 | 245 | 34431 | 210.52 | 843 | 823 | 159.6 |
| B | 3 | 209 | 19597 | 117.6 | 843 | 823 | 159.6 |
| C | 3 | 233 | 366318 | 1904.25 | 816 | 825 | 191.9 |
| C | 14 | 238 | 153445 | 795.16 | 816 | 825 | 191.9 |
| C | 10 | 9 | 74897 | 385.92 | 816 | 825 | 191.9 |
| D | 12 | 33 | 6196394 | 40548.05 | 640 | 623 | 152.8 |
| D | 1 | 52 | 1685527 | 11026.8 | 640 | 623 | 152.8 |
| D | 7 | 80 | 1028342 | 6725.88 | 640 | 623 | 152.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

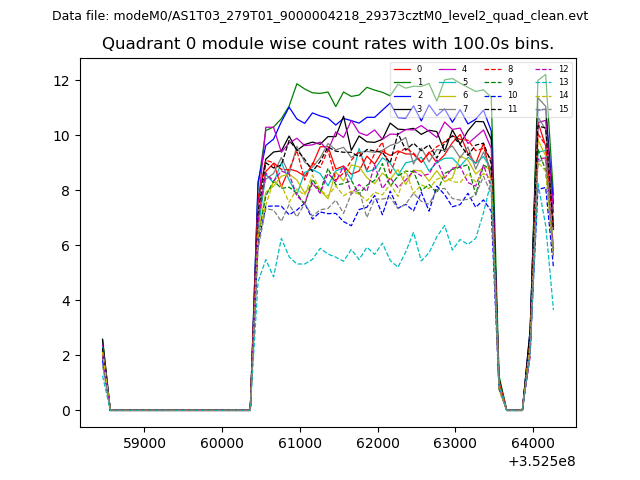

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

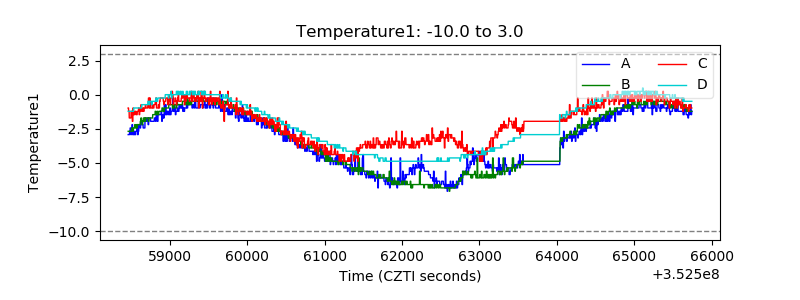

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

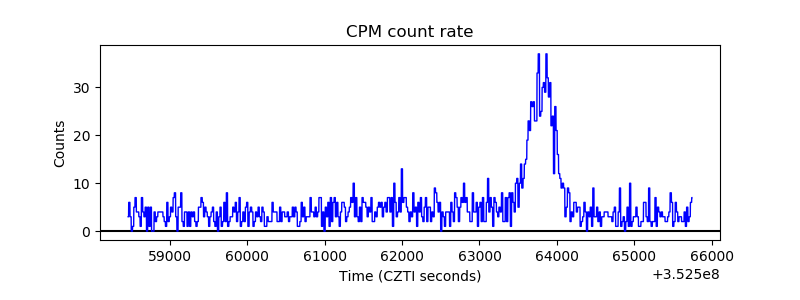

| _CPM_Rate |  |

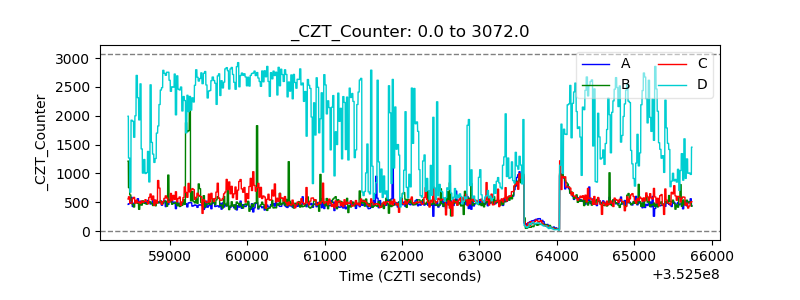

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

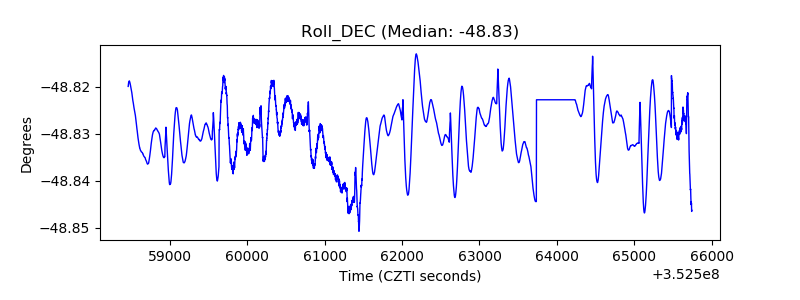

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
