| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_101T19_9000004228_29387cztM0_level2.evt | modeM0/AS1A10_101T19_9000004228_29387cztM0_level2_quad_clean.evt |
| Size (bytes) | 281,960,640 | 24,183,360 |
| Size | 268.9 MB | 23.1 MB |
| Events in quadrant A | 1,448,653 | 141,538 |
| Events in quadrant B | 1,456,915 | 143,673 |
| Events in quadrant C | 1,583,503 | 138,336 |
| Events in quadrant D | 3,869,070 | 118,468 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 54 | 0 |
| B | 0 | 54 | 0 |
| C | 0 | 54 | 0 |
| D | 0 | 54 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 7 | 0 |
| B | 0 | 7 | 0 |
| C | 0 | 7 | 0 |
| D | 0 | 7 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 5829 | 1 |
| B | 0 | 5834 | 1 |
| C | 0 | 6341 | 1 |
| D | 0 | 13360 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 2647 | 123 | 4.646770% |
| B | 2647 | 131 | 4.948999% |
| C | 2646 | 198 | 7.482993% |
| D | 2646 | 854 | 32.275132% |

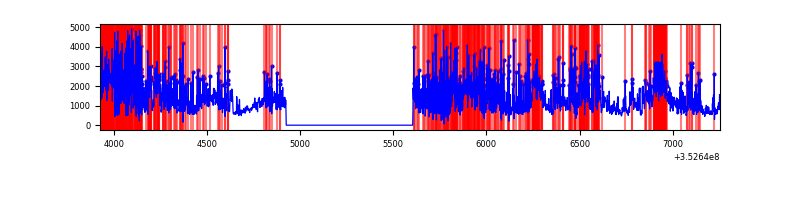

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 3327 | 2648 | 0 | 0 | 0.00% | 0.00% |  |
| B | 3327 | 2647 | 2 | 2 | 0.06% | 0.08% |  |
| C | 3326 | 2647 | 0 | 0 | 0.00% | 0.00% |  |
| D | 3326 | 2647 | 567 | 567 | 17.05% | 21.42% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 1 | 113 | 28392 | 366.16 | 368 | 359 | 76.6 |
| A | 13 | 254 | 4921 | 59.59 | 368 | 359 | 76.6 |
| A | 3 | 137 | 3692 | 43.53 | 368 | 359 | 76.6 |
| B | 5 | 255 | 12486 | 166.69 | 359 | 349 | 72.8 |
| B | 5 | 172 | 12460 | 166.33 | 359 | 349 | 72.8 |
| B | 12 | 111 | 8767 | 115.61 | 359 | 349 | 72.8 |
| C | 3 | 233 | 122851 | 1452.72 | 346 | 347 | 84.3 |
| C | 14 | 238 | 72578 | 856.55 | 346 | 347 | 84.3 |
| C | 14 | 254 | 27461 | 321.53 | 346 | 347 | 84.3 |
| D | 1 | 52 | 1204726 | 15103.06 | 320 | 310 | 79.7 |
| D | 12 | 33 | 1081218 | 13554.3 | 320 | 310 | 79.7 |
| D | 12 | 227 | 215297 | 2695.88 | 320 | 310 | 79.7 |

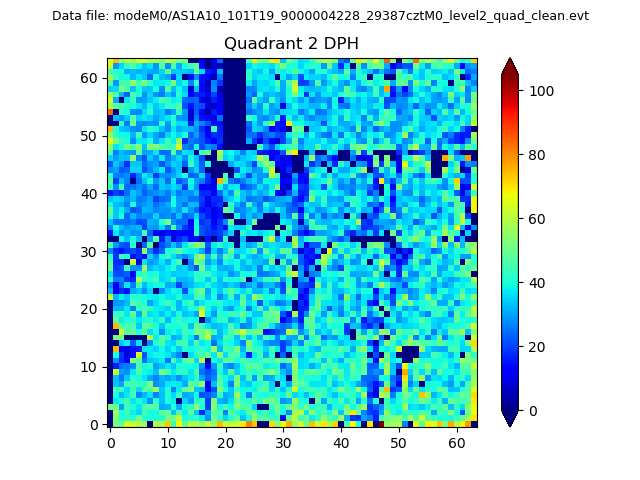

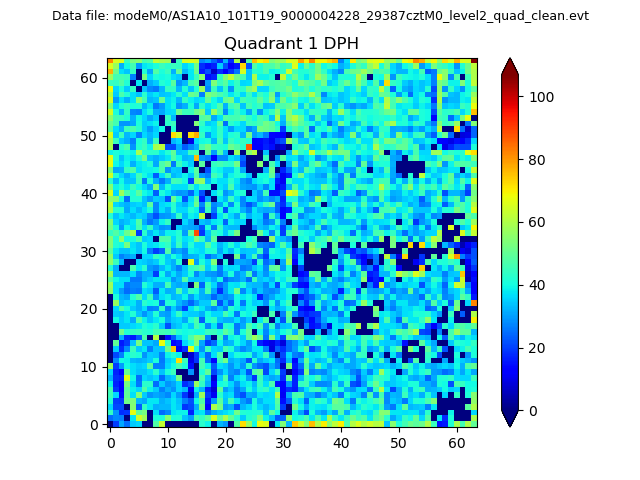

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

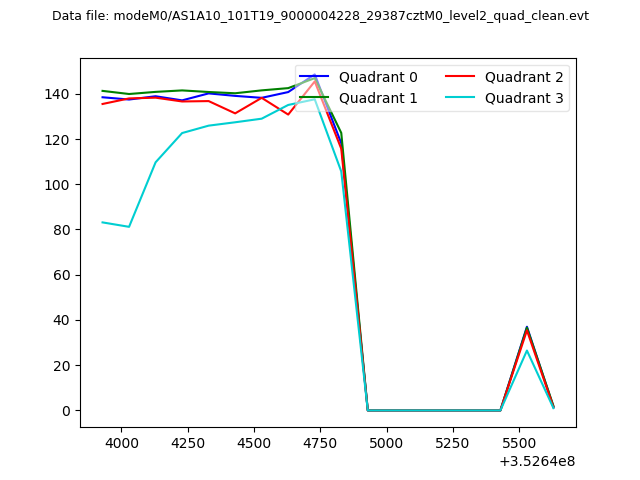

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

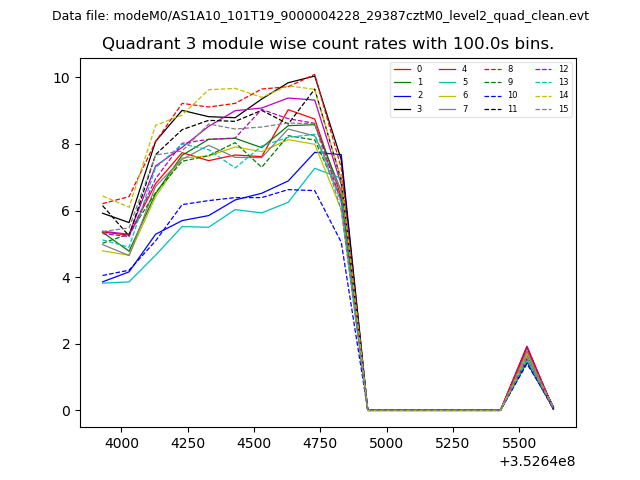

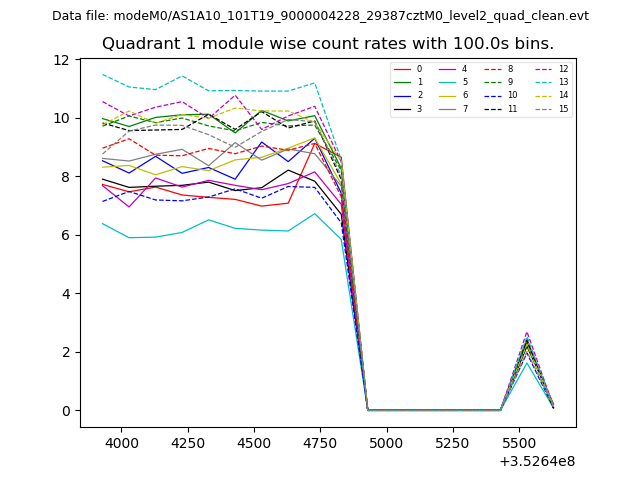

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

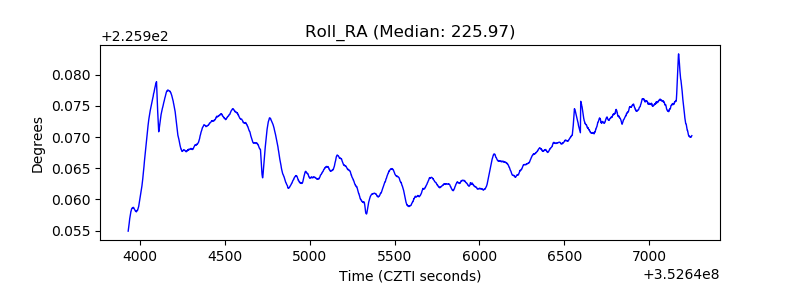

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
