| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_101T19_9000004228_29396cztM0_level2.evt | modeM0/AS1A10_101T19_9000004228_29396cztM0_level2_quad_clean.evt |
| Size (bytes) | 824,460,480 | 92,946,240 |
| Size | 786.3 MB | 88.6 MB |
| Events in quadrant A | 3,290,207 | 616,363 |
| Events in quadrant B | 3,578,887 | 632,946 |
| Events in quadrant C | 4,708,894 | 600,546 |
| Events in quadrant D | 12,953,768 | 512,259 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13788 | 1 |
| B | 0 | 14835 | 1 |
| C | 0 | 18385 | 3 |
| D | 0 | 42904 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6481 | 72 | 1.110940% |
| B | 6482 | 109 | 1.681580% |
| C | 6481 | 236 | 3.641413% |
| D | 6481 | 3377 | 52.106156% |

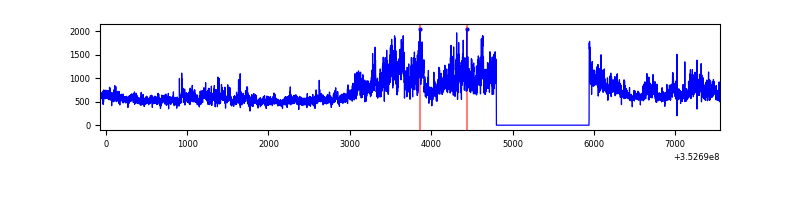

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7621 | 6481 | 2 | 2 | 0.03% | 0.03% |  |
| B | 7622 | 6483 | 14 | 14 | 0.18% | 0.22% |  |
| C | 7621 | 6482 | 2 | 2 | 0.03% | 0.03% |  |
| D | 7621 | 6481 | 3495 | 3495 | 45.86% | 53.93% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 1 | 113 | 99013 | 595.98 | 826 | 811 | 164.8 |
| A | 13 | 254 | 11322 | 63.79 | 826 | 811 | 164.8 |
| A | 3 | 137 | 7753 | 42.13 | 826 | 811 | 164.8 |
| B | 5 | 255 | 224710 | 1444.12 | 821 | 801 | 155.0 |
| B | 0 | 156 | 88477 | 565.47 | 821 | 801 | 155.0 |
| B | 0 | 229 | 36238 | 228.55 | 821 | 801 | 155.0 |
| C | 3 | 233 | 1459866 | 7949.17 | 786 | 793 | 183.6 |
| C | 14 | 238 | 135359 | 733.13 | 786 | 793 | 183.6 |
| C | 10 | 9 | 17501 | 91.02 | 786 | 793 | 183.6 |
| D | 8 | 195 | 8754090 | 57976.67 | 634 | 618 | 151.0 |
| D | 1 | 52 | 1474680 | 9763.12 | 634 | 618 | 151.0 |
| D | 12 | 33 | 263287 | 1739.73 | 634 | 618 | 151.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

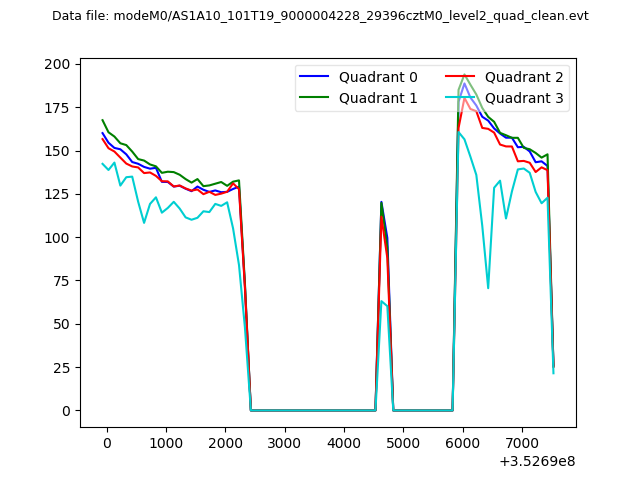

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

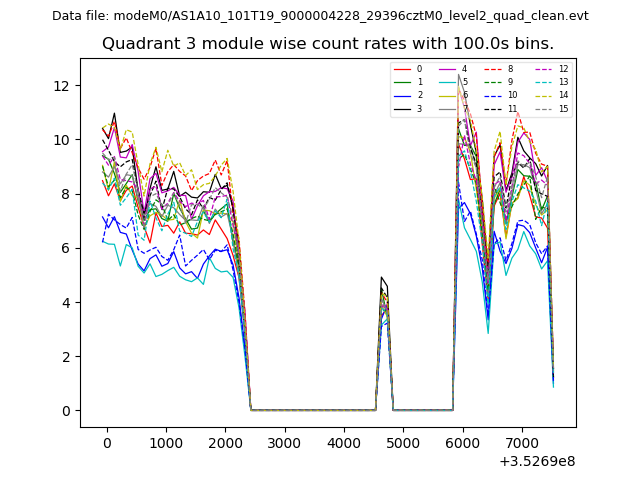

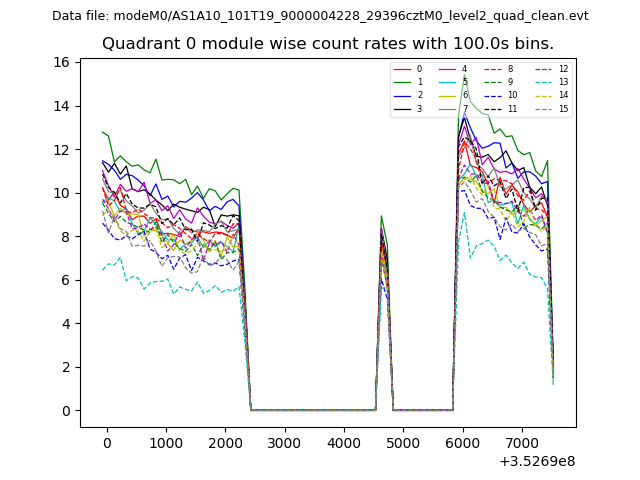

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

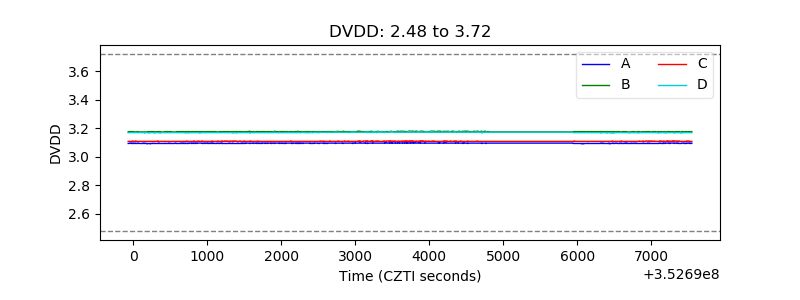

| D_VDD |  |

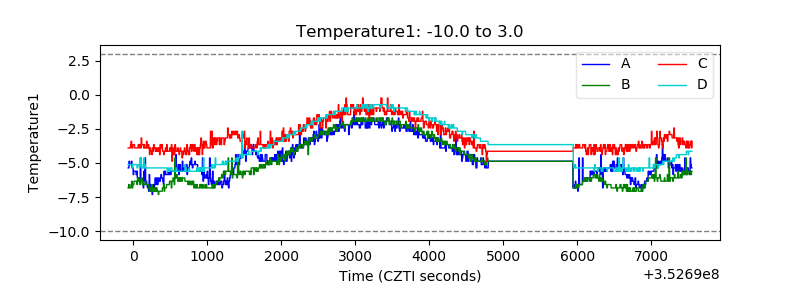

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

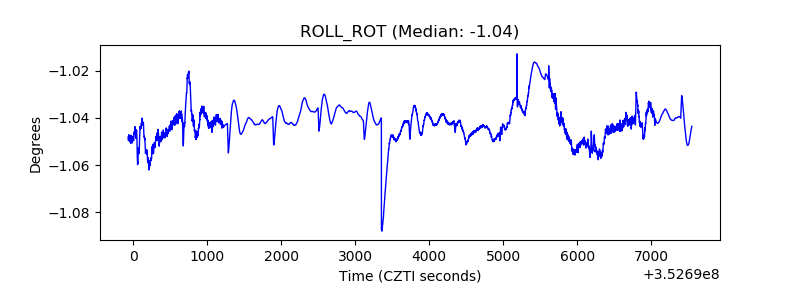

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

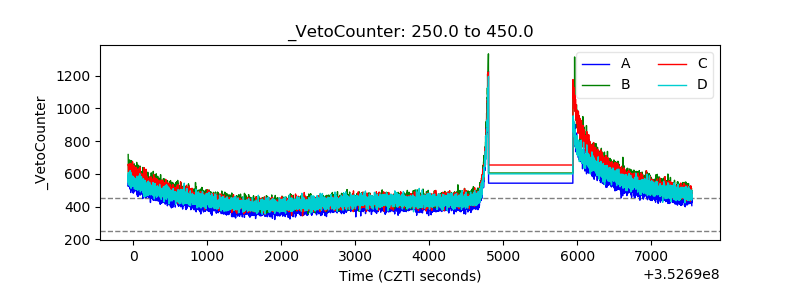

| Veto Counter |  |
