| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_101T19_9000004228_29397cztM0_level2.evt | modeM0/AS1A10_101T19_9000004228_29397cztM0_level2_quad_clean.evt |
| Size (bytes) | 846,933,120 | 98,317,440 |
| Size | 807.7 MB | 93.8 MB |
| Events in quadrant A | 3,575,104 | 676,066 |
| Events in quadrant B | 3,961,121 | 691,809 |
| Events in quadrant C | 4,676,887 | 624,894 |
| Events in quadrant D | 12,999,550 | 531,929 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14432 | 1 |
| B | 0 | 16234 | 1 |
| C | 0 | 18736 | 1 |
| D | 0 | 43061 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6480 | 62 | 0.956790% |
| B | 6480 | 67 | 1.033951% |
| C | 6481 | 1009 | 15.568585% |
| D | 6481 | 3453 | 53.278815% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

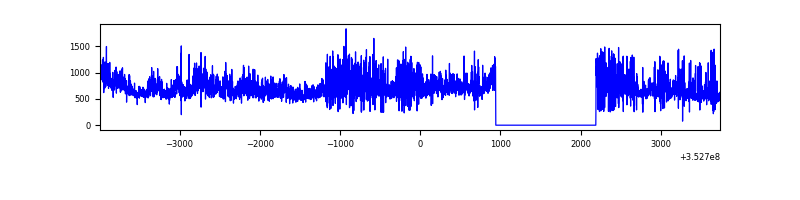

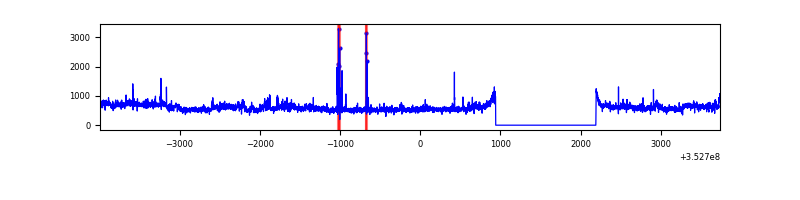

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7730 | 6481 | 2 | 2 | 0.03% | 0.03% |  |
| B | 7730 | 6481 | 7 | 7 | 0.09% | 0.11% |  |
| C | 7731 | 6482 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7731 | 6482 | 3579 | 3579 | 46.29% | 55.21% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 1 | 113 | 206864 | 1192.18 | 873 | 860 | 172.8 |
| A | 13 | 254 | 12566 | 67.74 | 873 | 860 | 172.8 |
| A | 3 | 137 | 7706 | 39.62 | 873 | 860 | 172.8 |
| B | 5 | 255 | 492392 | 3055.03 | 863 | 844 | 160.9 |
| B | 0 | 229 | 47901 | 292.46 | 863 | 844 | 160.9 |
| B | 12 | 111 | 19089 | 113.39 | 863 | 844 | 160.9 |
| C | 3 | 233 | 914279 | 5071.83 | 779 | 787 | 180.1 |
| C | 14 | 238 | 359977 | 1994.27 | 779 | 787 | 180.1 |
| C | 14 | 254 | 330651 | 1831.45 | 779 | 787 | 180.1 |
| D | 8 | 195 | 8130436 | 48518.81 | 718 | 700 | 167.6 |
| D | 1 | 52 | 1884645 | 11243.51 | 718 | 700 | 167.6 |
| D | 12 | 33 | 169001 | 1004.43 | 718 | 700 | 167.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

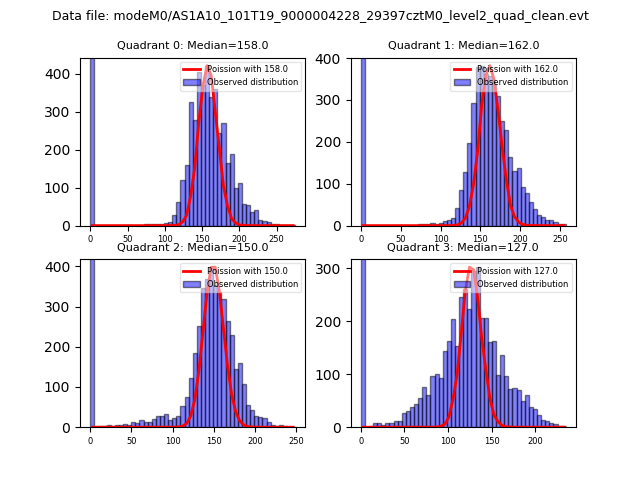

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

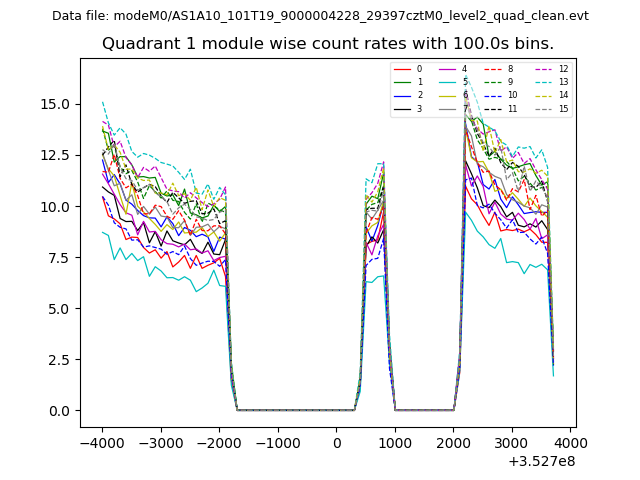

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

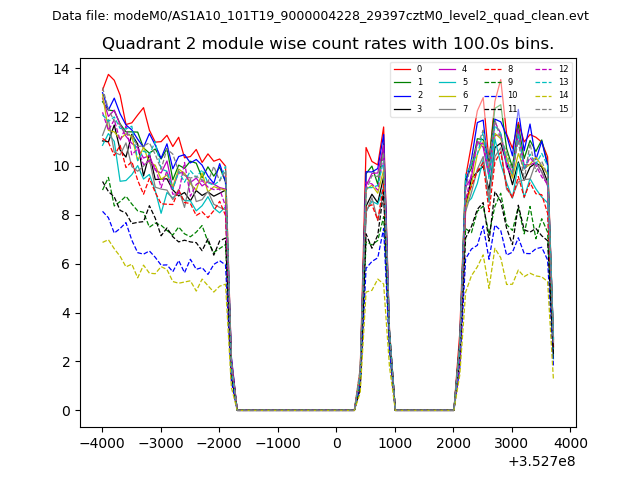

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

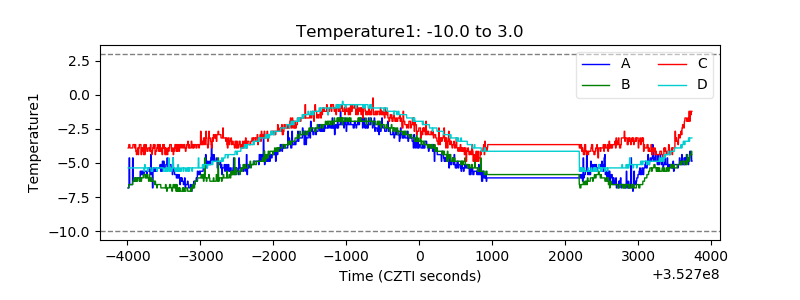

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

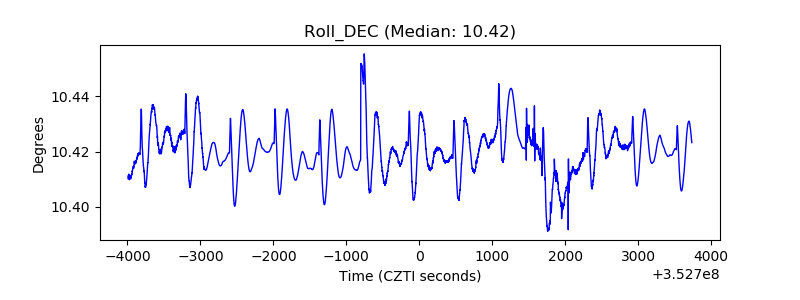

| _Roll_DEC |  |
| _Roll_RA |  |

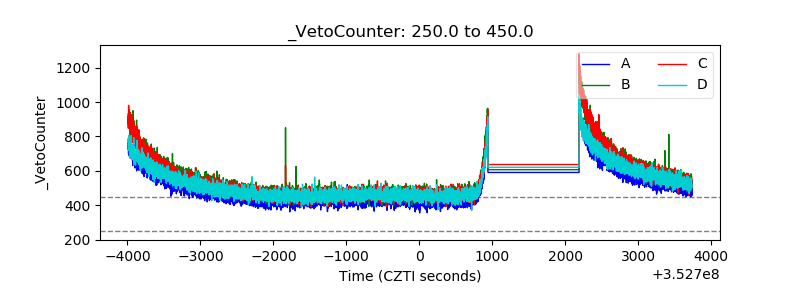

| Veto Counter |  |
