| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_101T19_9000004228_29398cztM0_level2.evt | modeM0/AS1A10_101T19_9000004228_29398cztM0_level2_quad_clean.evt |
| Size (bytes) | 702,192,960 | 81,999,360 |
| Size | 669.7 MB | 78.2 MB |
| Events in quadrant A | 3,160,100 | 547,968 |
| Events in quadrant B | 3,250,529 | 556,289 |
| Events in quadrant C | 4,273,312 | 517,300 |
| Events in quadrant D | 10,204,712 | 469,885 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 114 | 0 |
| B | 0 | 114 | 0 |
| C | 0 | 114 | 0 |
| D | 0 | 114 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12586 | 1 |
| B | 0 | 12998 | 1 |
| C | 0 | 16827 | 1 |
| D | 0 | 34147 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5590 | 64 | 1.144902% |
| B | 5591 | 90 | 1.609730% |
| C | 5591 | 356 | 6.367376% |
| D | 5591 | 2403 | 42.979789% |

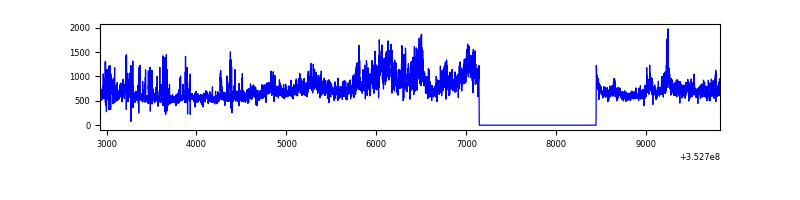

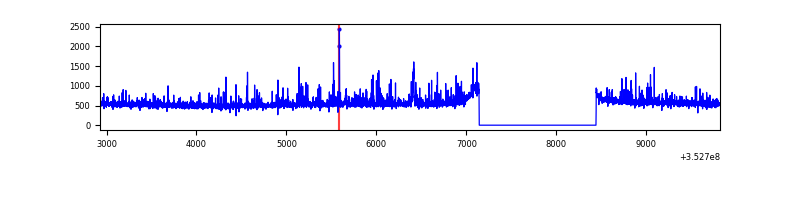

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6890 | 5591 | 2 | 2 | 0.03% | 0.04% |  |
| B | 6891 | 5592 | 4 | 4 | 0.06% | 0.07% |  |
| C | 6891 | 5592 | 0 | 0 | 0.00% | 0.00% |  |
| D | 6891 | 5592 | 2346 | 2346 | 34.04% | 41.95% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 1 | 113 | 155146 | 987.69 | 779 | 765 | 156.3 |
| A | 13 | 254 | 10917 | 64.95 | 779 | 765 | 156.3 |
| A | 3 | 137 | 6967 | 39.68 | 779 | 765 | 156.3 |
| B | 5 | 255 | 172877 | 1217.9 | 761 | 745 | 141.3 |
| B | 0 | 229 | 45966 | 319.96 | 761 | 745 | 141.3 |
| B | 10 | 245 | 21970 | 150.18 | 761 | 745 | 141.3 |
| C | 3 | 233 | 1197540 | 7108.42 | 724 | 731 | 168.4 |
| C | 14 | 238 | 166546 | 984.86 | 724 | 731 | 168.4 |
| C | 14 | 254 | 72563 | 426.64 | 724 | 731 | 168.4 |
| D | 8 | 195 | 5543645 | 36220.05 | 649 | 633 | 153.0 |
| D | 12 | 33 | 1410941 | 9215.46 | 649 | 633 | 153.0 |
| D | 1 | 52 | 705239 | 4604.15 | 649 | 633 | 153.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

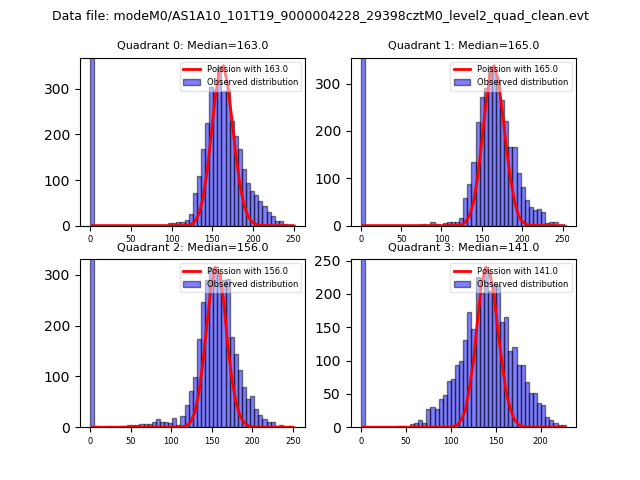

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

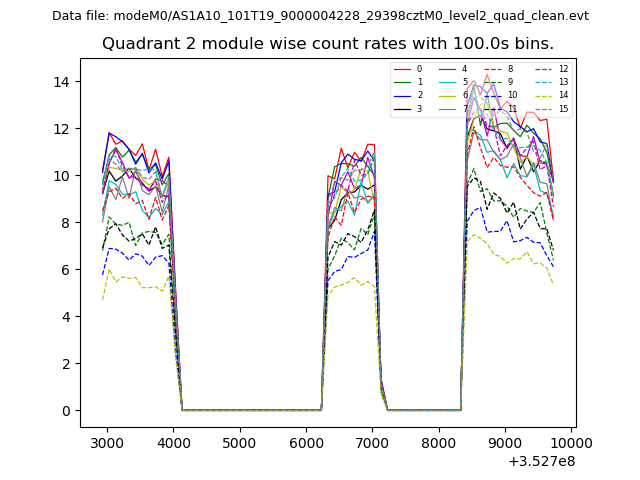

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

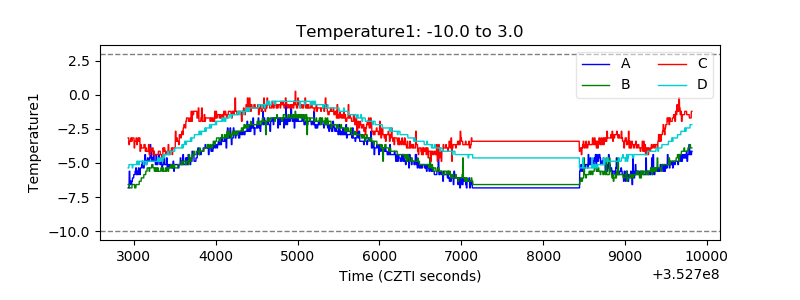

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

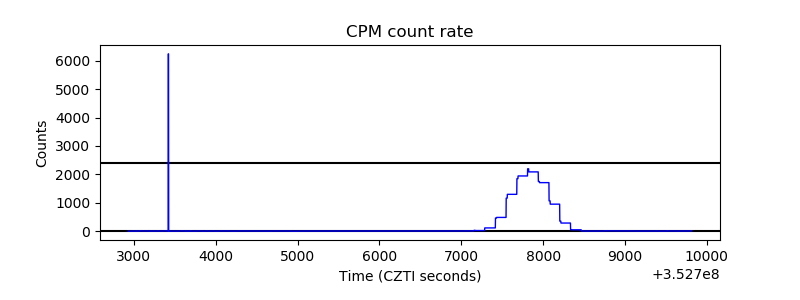

| _CPM_Rate |  |

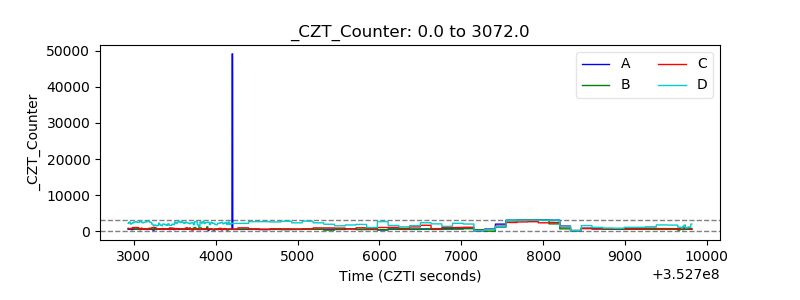

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

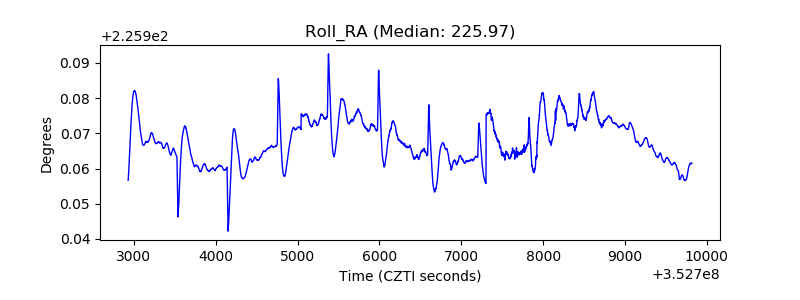

| _Roll_RA |  |
| Veto Counter |  |
