| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_101T19_9000004228_29403cztM0_level2.evt | modeM0/AS1A10_101T19_9000004228_29403cztM0_level2_quad_clean.evt |
| Size (bytes) | 849,306,240 | 76,049,280 |
| Size | 810.0 MB | 72.5 MB |
| Events in quadrant A | 3,941,736 | 462,696 |
| Events in quadrant B | 4,620,458 | 466,128 |
| Events in quadrant C | 4,939,706 | 457,962 |
| Events in quadrant D | 11,702,656 | 382,808 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 156 | 0 |
| B | 0 | 156 | 0 |
| C | 0 | 156 | 0 |
| D | 0 | 156 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 2 | 0 |
| B | 0 | 2 | 0 |
| C | 0 | 2 | 0 |
| D | 0 | 2 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16474 | 2 |
| B | 0 | 18524 | 2 |
| C | 0 | 19773 | 2 |
| D | 0 | 40122 | 3 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7659 | 235 | 3.068286% |
| B | 7660 | 381 | 4.973890% |
| C | 7660 | 366 | 4.778068% |
| D | 7659 | 2742 | 35.801018% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7824 | 7662 | 36 | 36 | 0.46% | 0.47% |  |
| B | 7825 | 7663 | 90 | 90 | 1.15% | 1.17% |  |
| C | 7825 | 7663 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7824 | 7662 | 2072 | 2072 | 26.48% | 27.04% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 1 | 113 | 106305 | 519.07 | 987 | 963 | 202.9 |
| A | 6 | 16 | 29508 | 140.65 | 987 | 963 | 202.9 |
| A | 13 | 254 | 13812 | 63.31 | 987 | 963 | 202.9 |
| B | 5 | 255 | 527337 | 2773.49 | 968 | 942 | 189.8 |
| B | 0 | 229 | 175291 | 918.62 | 968 | 942 | 189.8 |
| B | 10 | 245 | 44596 | 230.01 | 968 | 942 | 189.8 |
| C | 3 | 233 | 1046001 | 4710.23 | 939 | 943 | 221.9 |
| C | 14 | 238 | 155668 | 697.37 | 939 | 943 | 221.9 |
| C | 4 | 222 | 32818 | 143.67 | 939 | 943 | 221.9 |
| D | 8 | 195 | 4411872 | 21578.6 | 852 | 830 | 204.4 |
| D | 1 | 52 | 2425831 | 11862.98 | 852 | 830 | 204.4 |
| D | 12 | 33 | 1254011 | 6130.5 | 852 | 830 | 204.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

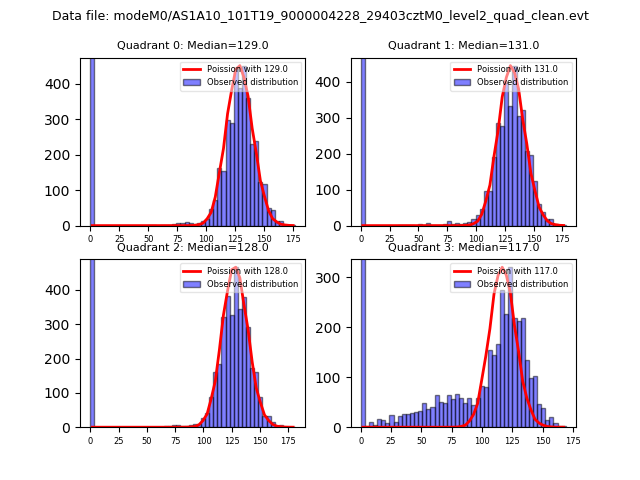

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

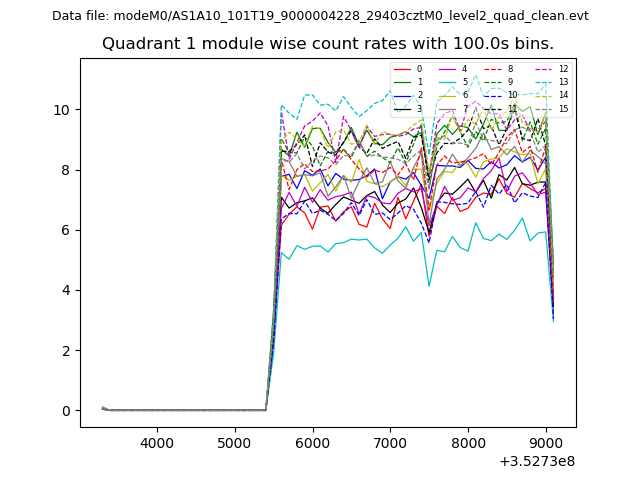

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

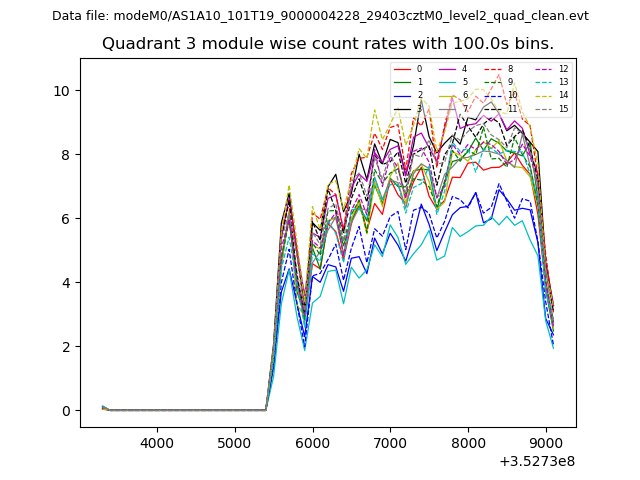

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

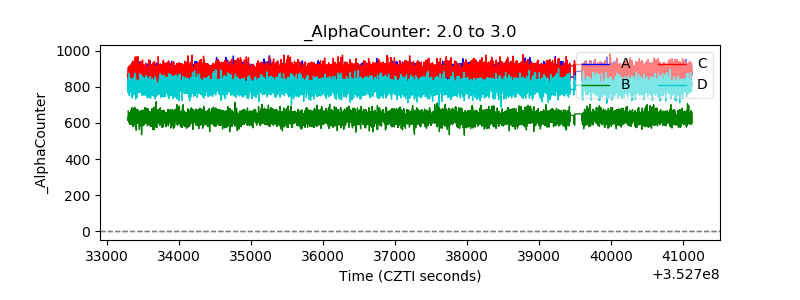

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

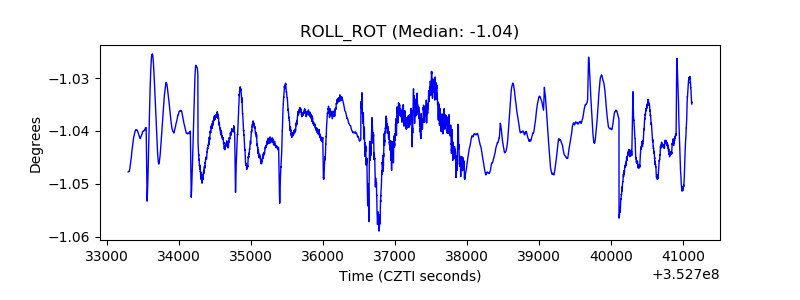

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

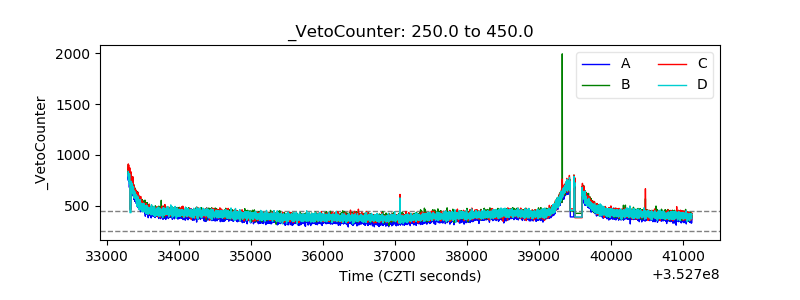

| Veto Counter |  |
