| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_280T01_9000004222_29383cztM0_level2.evt | modeM0/AS1T03_280T01_9000004222_29383cztM0_level2_quad_clean.evt |
| Size (bytes) | 619,217,280 | 84,525,120 |
| Size | 590.5 MB | 80.6 MB |
| Events in quadrant A | 2,843,308 | 583,344 |
| Events in quadrant B | 3,521,005 | 588,420 |
| Events in quadrant C | 3,531,044 | 573,090 |
| Events in quadrant D | 8,487,395 | 431,003 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11624 | 1 |
| B | 0 | 13884 | 1 |
| C | 0 | 14163 | 1 |
| D | 0 | 28994 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 112 | 0 |
| B | 0 | 112 | 0 |
| C | 0 | 112 | 0 |
| D | 0 | 112 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5470 | 26 | 0.475320% |
| B | 5471 | 233 | 4.258819% |
| C | 5471 | 168 | 3.070737% |
| D | 5471 | 2051 | 37.488576% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

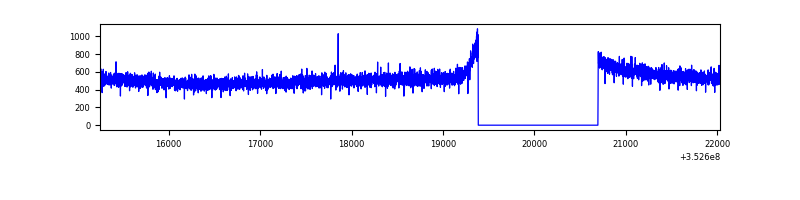

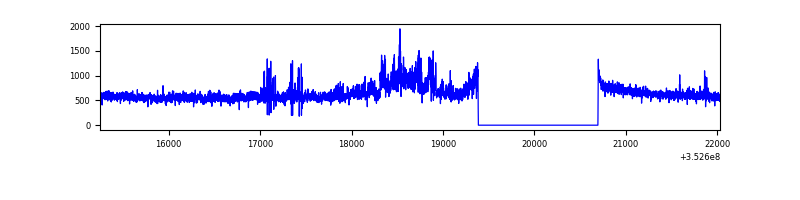

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6780 | 5471 | 0 | 0 | 0.00% | 0.00% |  |
| B | 6781 | 5472 | 94 | 94 | 1.39% | 1.72% |  |
| C | 6781 | 5472 | 0 | 0 | 0.00% | 0.00% |  |
| D | 6780 | 5471 | 1812 | 1812 | 26.73% | 33.12% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 11178 | 71.79 | 736 | 724 | 145.6 |
| A | 0 | 226 | 6324 | 38.46 | 736 | 724 | 145.6 |
| A | 3 | 137 | 6211 | 37.68 | 736 | 724 | 145.6 |
| B | 10 | 245 | 584913 | 4364.64 | 722 | 706 | 133.8 |
| B | 0 | 229 | 41673 | 306.07 | 722 | 706 | 133.8 |
| B | 15 | 32 | 25603 | 186.01 | 722 | 706 | 133.8 |
| C | 3 | 233 | 507765 | 3065.17 | 719 | 729 | 165.4 |
| C | 14 | 238 | 142007 | 854.06 | 719 | 729 | 165.4 |
| C | 14 | 254 | 36073 | 213.66 | 719 | 729 | 165.4 |
| D | 12 | 33 | 4280326 | 28513.62 | 632 | 617 | 150.1 |
| D | 1 | 52 | 1271895 | 8469.9 | 632 | 617 | 150.1 |
| D | 13 | 153 | 278784 | 1853.29 | 632 | 617 | 150.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

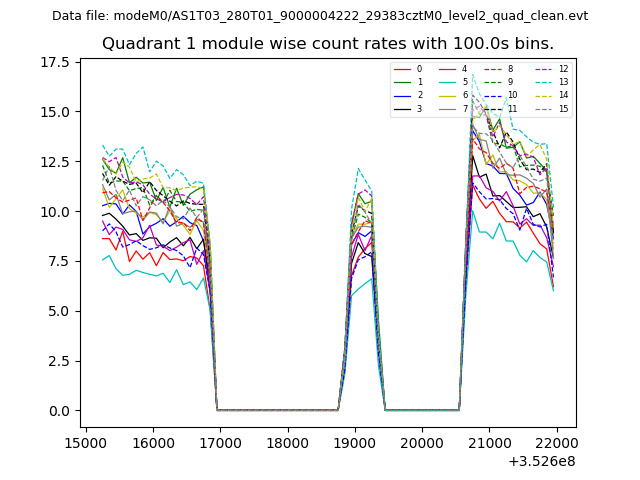

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

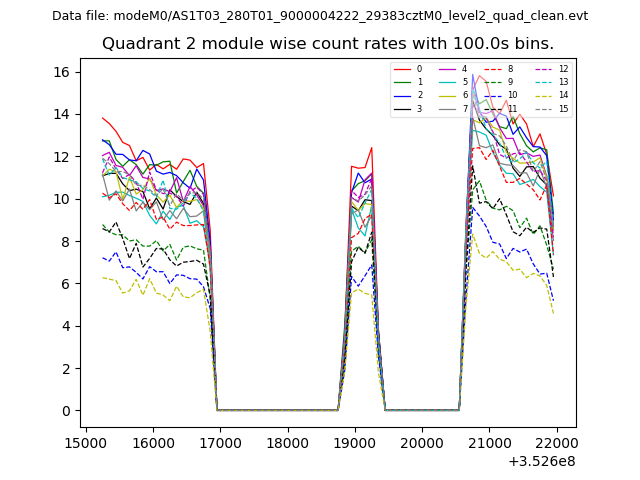

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

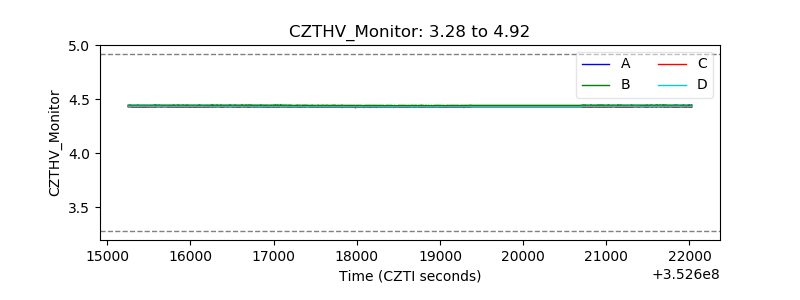

| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |

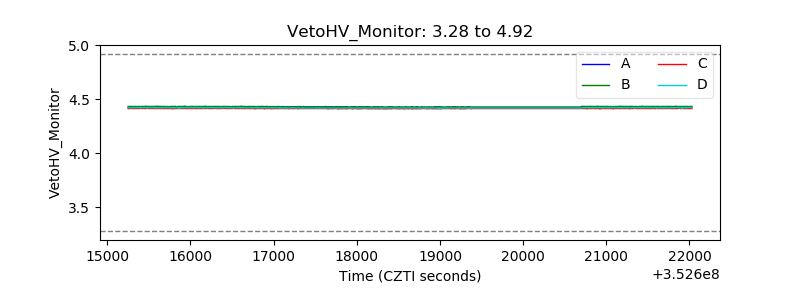

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

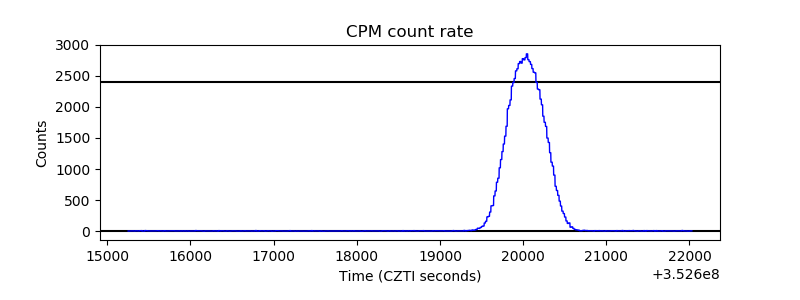

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

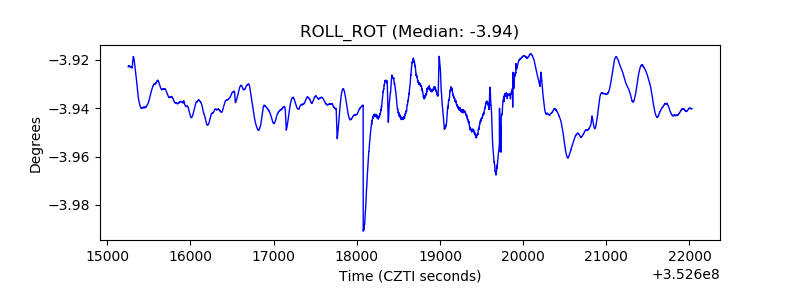

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
