| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_282T01_9000004226_29386cztM0_level2.evt | modeM0/AS1T03_282T01_9000004226_29386cztM0_level2_quad_clean.evt |
| Size (bytes) | 241,064,640 | 39,994,560 |
| Size | 229.9 MB | 38.1 MB |
| Events in quadrant A | 1,361,090 | 264,195 |
| Events in quadrant B | 1,466,407 | 267,169 |
| Events in quadrant C | 1,613,072 | 253,733 |
| Events in quadrant D | 2,683,565 | 240,853 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 52 | 0 |
| B | 0 | 52 | 0 |
| C | 0 | 52 | 0 |
| D | 0 | 52 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 5554 | 1 |
| B | 0 | 5866 | 2 |
| C | 0 | 6551 | 1 |
| D | 0 | 9847 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 2581 | 95 | 3.680744% |
| B | 2580 | 125 | 4.844961% |
| C | 2580 | 183 | 7.093023% |
| D | 2580 | 312 | 12.093023% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 3606 | 2582 | 0 | 0 | 0.00% | 0.00% |  |
| B | 3605 | 2581 | 9 | 9 | 0.25% | 0.35% |  |
| C | 3605 | 2581 | 0 | 0 | 0.00% | 0.00% |  |
| D | 3605 | 2581 | 174 | 174 | 4.83% | 6.74% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 4931 | 64.03 | 351 | 342 | 71.7 |
| A | 11 | 29 | 3574 | 45.1 | 351 | 342 | 71.7 |
| A | 3 | 137 | 3339 | 41.82 | 351 | 342 | 71.7 |
| B | 5 | 255 | 47767 | 717.78 | 344 | 334 | 66.1 |
| B | 0 | 229 | 22459 | 334.81 | 344 | 334 | 66.1 |
| B | 5 | 172 | 20998 | 312.7 | 344 | 334 | 66.1 |
| C | 3 | 233 | 181691 | 2303.01 | 336 | 338 | 78.7 |
| C | 14 | 238 | 70838 | 895.28 | 336 | 338 | 78.7 |
| C | 14 | 254 | 24312 | 304.45 | 336 | 338 | 78.7 |
| D | 1 | 52 | 1105663 | 13601.59 | 335 | 326 | 81.3 |
| D | 12 | 227 | 108731 | 1333.96 | 335 | 326 | 81.3 |
| D | 8 | 195 | 93584 | 1147.58 | 335 | 326 | 81.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

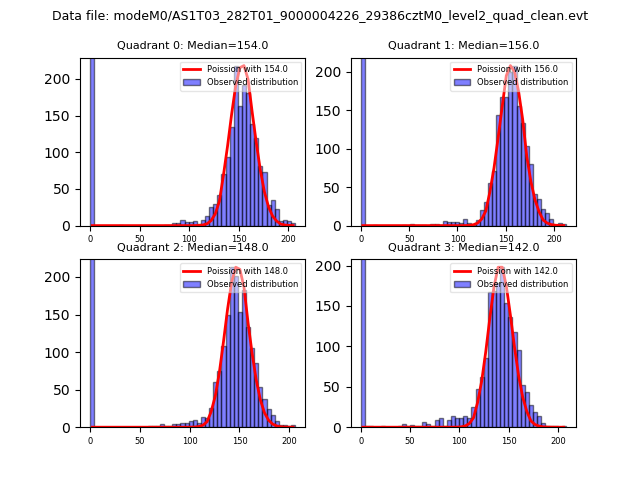

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

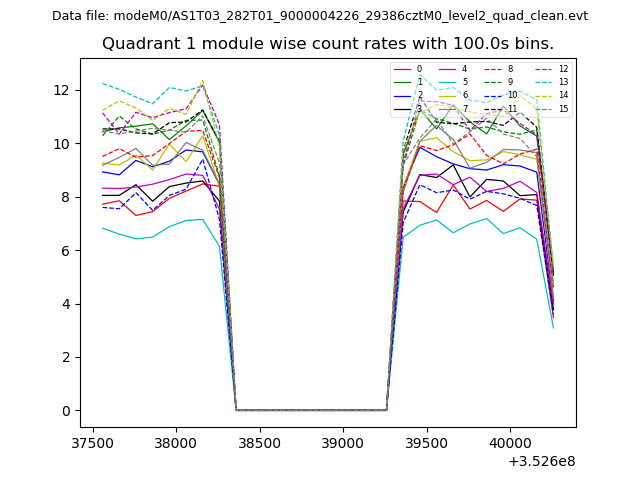

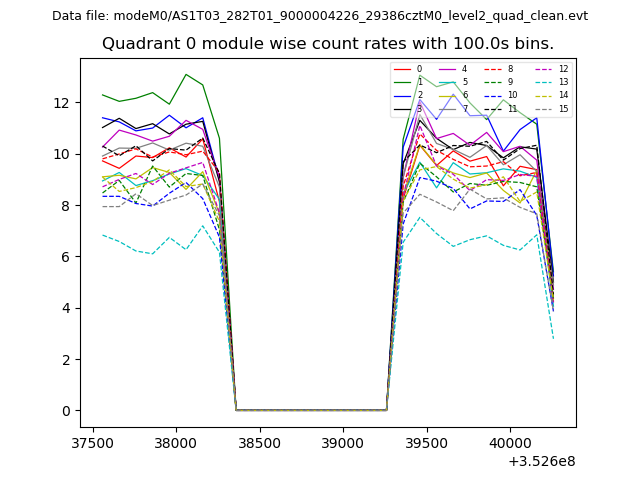

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

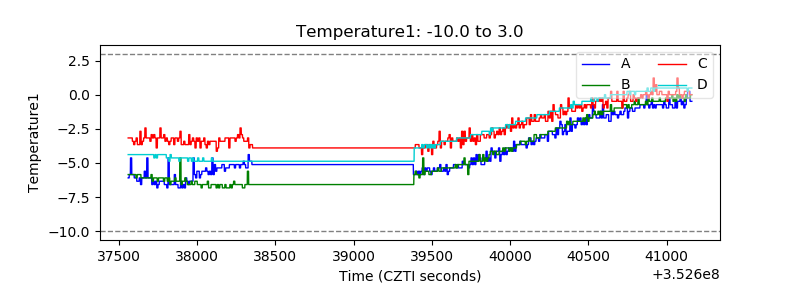

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

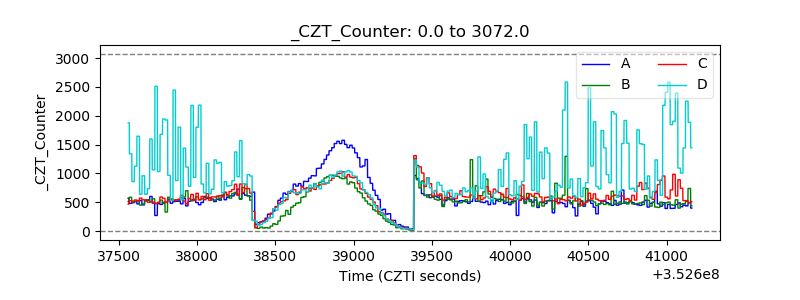

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

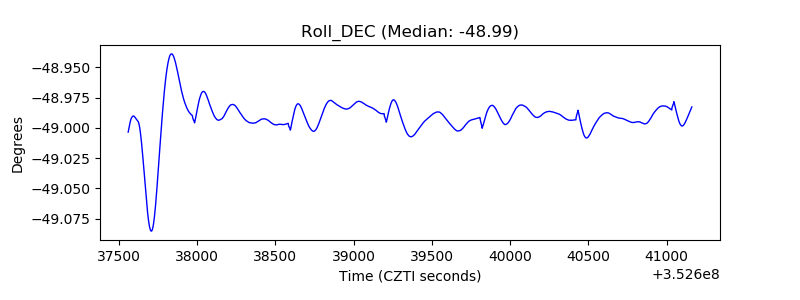

| _Roll_DEC |  |
| _Roll_RA |  |

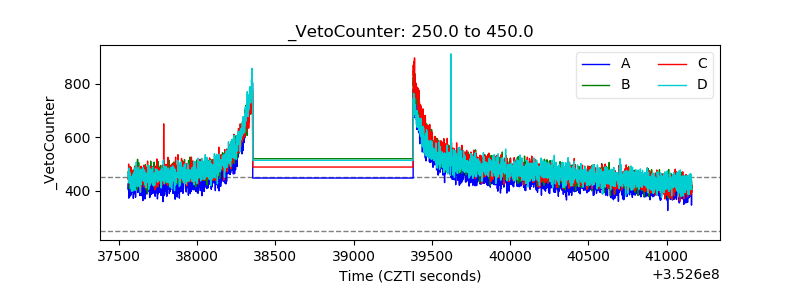

| Veto Counter |  |
