| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_102T05_9000004232_29426cztM0_level2.evt | modeM0/AS1A10_102T05_9000004232_29426cztM0_level2_quad_clean.evt |
| Size (bytes) | 894,934,080 | 100,523,520 |
| Size | 853.5 MB | 95.9 MB |
| Events in quadrant A | 3,355,085 | 685,796 |
| Events in quadrant B | 3,661,922 | 710,821 |
| Events in quadrant C | 12,368,583 | 573,166 |
| Events in quadrant D | 7,275,820 | 616,071 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18 | 0 |
| B | 0 | 19 | 0 |
| C | 0 | 19 | 0 |
| D | 0 | 19 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13844 | 2 |
| B | 0 | 14892 | 2 |
| C | 0 | 41266 | 8 |
| D | 0 | 26095 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6557 | 19 | 0.289767% |
| B | 6557 | 88 | 1.342077% |
| C | 6556 | 3556 | 54.240390% |
| D | 6556 | 1068 | 16.290421% |

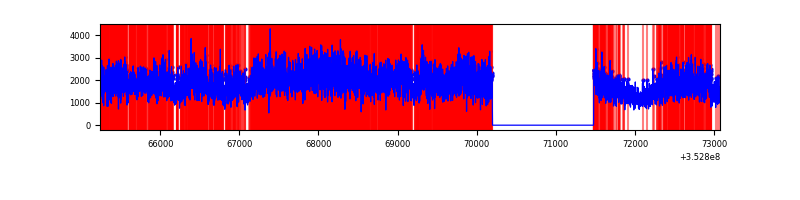

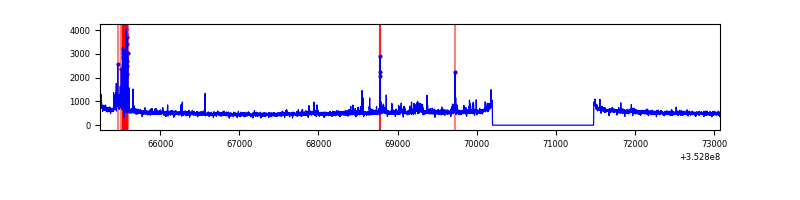

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7837 | 6558 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7837 | 6558 | 27 | 27 | 0.34% | 0.41% |  |
| C | 7836 | 6557 | 2566 | 2566 | 32.75% | 39.13% |  |
| D | 7836 | 6557 | 873 | 873 | 11.14% | 13.31% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 11521 | 61.86 | 869 | 856 | 172.4 |
| A | 3 | 137 | 7817 | 40.37 | 869 | 856 | 172.4 |
| A | 0 | 226 | 7498 | 38.52 | 869 | 856 | 172.4 |
| B | 10 | 245 | 175967 | 1090.39 | 866 | 846 | 160.6 |
| B | 0 | 229 | 38080 | 231.84 | 866 | 846 | 160.6 |
| B | 15 | 33 | 22582 | 135.34 | 866 | 846 | 160.6 |
| C | 3 | 233 | 9446240 | 57507.78 | 716 | 723 | 164.2 |
| C | 14 | 238 | 113960 | 689.43 | 716 | 723 | 164.2 |
| C | 2 | 114 | 13441 | 77.43 | 716 | 723 | 164.2 |
| D | 1 | 52 | 3368279 | 18541.83 | 783 | 765 | 181.6 |
| D | 8 | 195 | 522500 | 2872.72 | 783 | 765 | 181.6 |
| D | 13 | 153 | 236153 | 1296.07 | 783 | 765 | 181.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

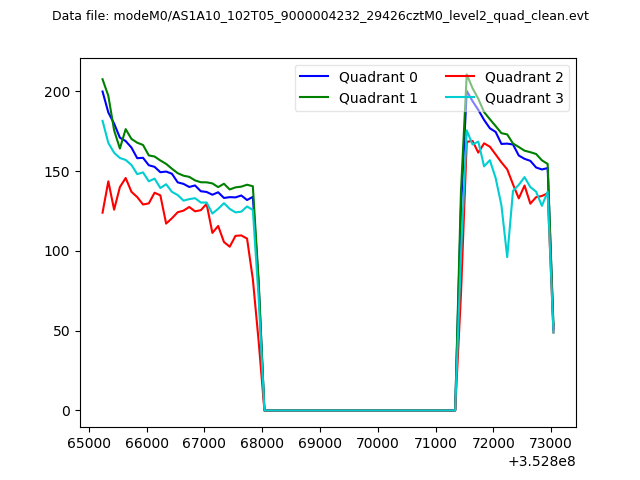

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

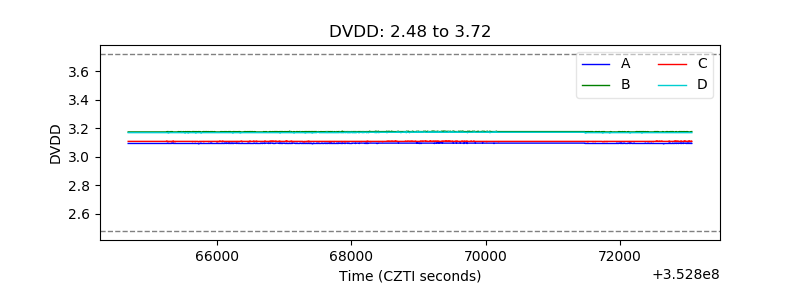

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

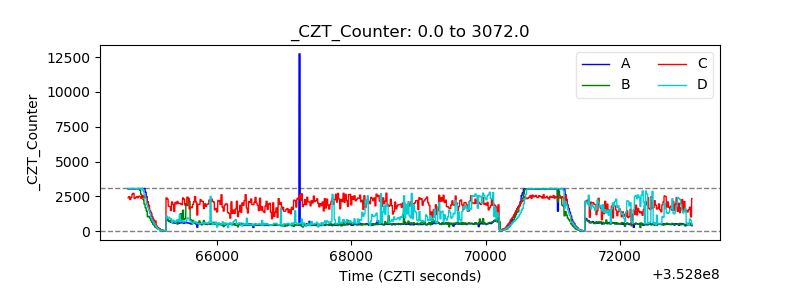

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
