| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_102T08_9000004240_29460cztM0_level2.evt | modeM0/AS1A10_102T08_9000004240_29460cztM0_level2_quad_clean.evt |
| Size (bytes) | 918,316,800 | 81,858,240 |
| Size | 875.8 MB | 78.1 MB |
| Events in quadrant A | 4,198,555 | 532,984 |
| Events in quadrant B | 3,852,356 | 543,884 |
| Events in quadrant C | 4,222,524 | 499,610 |
| Events in quadrant D | 15,032,613 | 380,098 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16940 | 2 |
| B | 0 | 15903 | 2 |
| C | 0 | 17029 | 2 |
| D | 0 | 49802 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 152 | 0 |
| B | 0 | 152 | 0 |
| C | 0 | 152 | 0 |
| D | 0 | 152 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7488 | 305 | 4.073184% |
| B | 7489 | 322 | 4.299639% |
| C | 7489 | 619 | 8.265456% |
| D | 7489 | 4087 | 54.573374% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8723 | 7490 | 26 | 26 | 0.30% | 0.35% |  |
| B | 8724 | 7490 | 1 | 1 | 0.01% | 0.01% |  |
| C | 8724 | 7491 | 0 | 0 | 0.00% | 0.00% |  |
| D | 8724 | 7490 | 3759 | 3759 | 43.09% | 50.19% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 13 | 420455 | 2133.88 | 971 | 949 | 196.6 |
| A | 1 | 113 | 23128 | 112.81 | 971 | 949 | 196.6 |
| A | 13 | 254 | 14218 | 67.49 | 971 | 949 | 196.6 |
| B | 12 | 111 | 23556 | 119.76 | 963 | 935 | 188.9 |
| B | 11 | 111 | 21433 | 108.52 | 963 | 935 | 188.9 |
| B | 14 | 111 | 19723 | 99.46 | 963 | 935 | 188.9 |
| C | 3 | 233 | 278539 | 1300.2 | 909 | 915 | 213.5 |
| C | 14 | 238 | 242054 | 1129.33 | 909 | 915 | 213.5 |
| C | 14 | 254 | 138013 | 642.07 | 909 | 915 | 213.5 |
| D | 8 | 195 | 8117882 | 42710.18 | 793 | 770 | 190.1 |
| D | 1 | 52 | 2179338 | 11463.07 | 793 | 770 | 190.1 |
| D | 7 | 223 | 1058692 | 5566.52 | 793 | 770 | 190.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

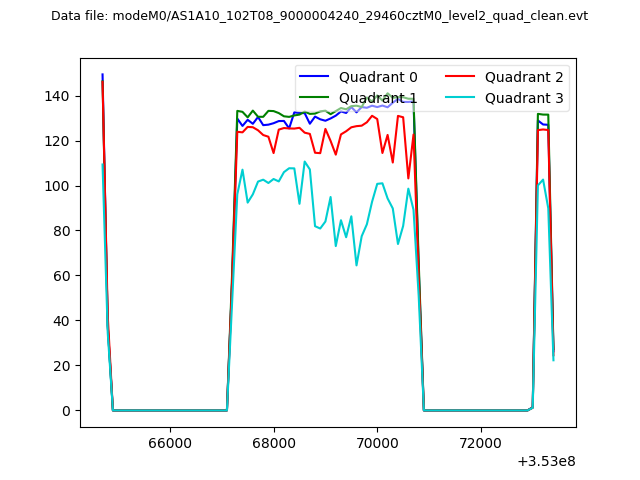

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

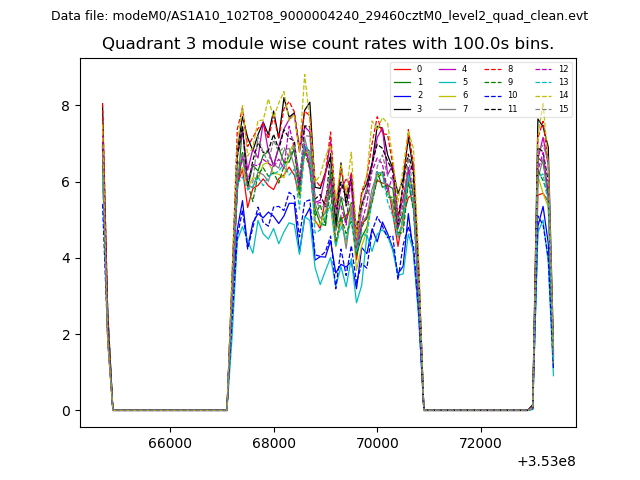

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

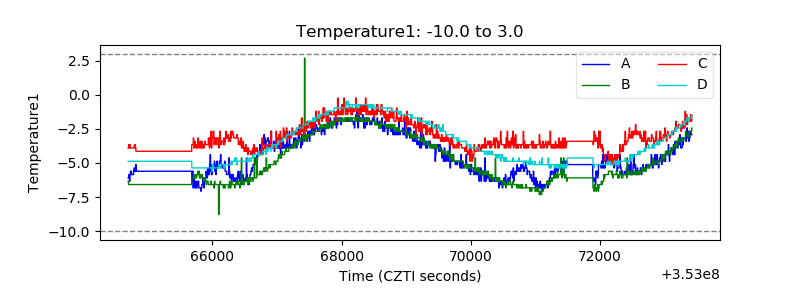

| Temperature 1 |  |

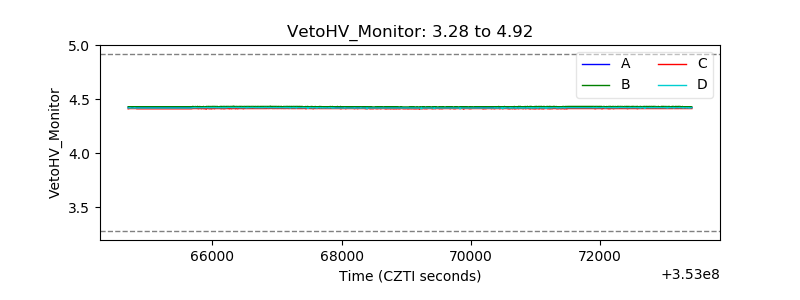

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

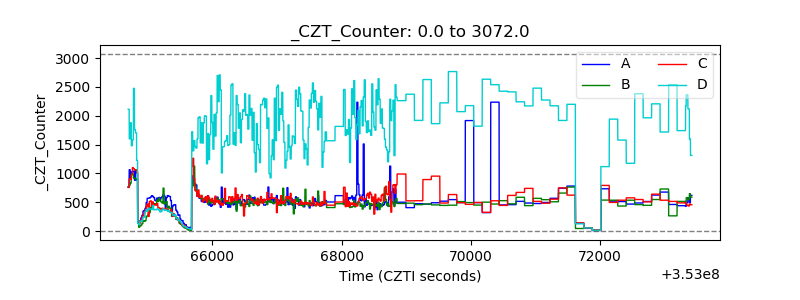

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

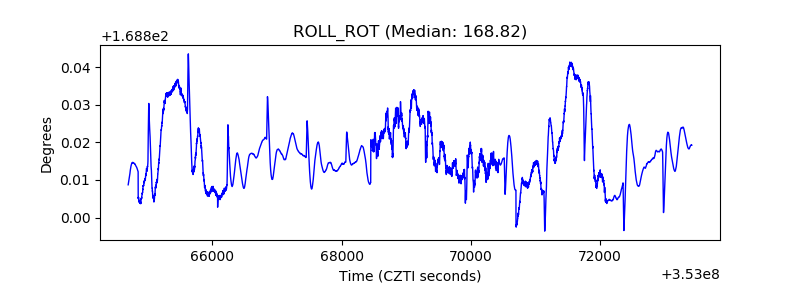

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
