| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_102T08_9000004240_29465cztM0_level2.evt | modeM0/AS1A10_102T08_9000004240_29465cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,435,993,920 | 132,252,480 |
| Size | 1.3 GB | 126.1 MB |
| Events in quadrant A | 5,588,653 | 884,739 |
| Events in quadrant B | 5,672,689 | 892,099 |
| Events in quadrant C | 5,801,675 | 846,633 |
| Events in quadrant D | 25,639,484 | 571,920 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 24173 | 5 |
| B | 0 | 24333 | 2 |
| C | 0 | 24554 | 2 |
| D | 0 | 84154 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 238 | 0 |
| B | 0 | 238 | 0 |
| C | 0 | 238 | 0 |
| D | 0 | 238 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 11670 | 197 | 1.688089% |
| B | 11671 | 233 | 1.996401% |
| C | 11671 | 384 | 3.290206% |
| D | 11671 | 7927 | 67.920487% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|

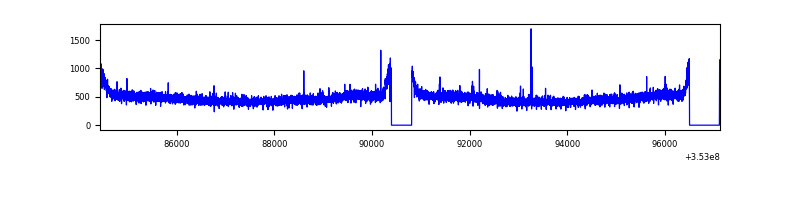

| A | 12700 | 11672 | 0 | 0 | 0.00% | 0.00% |  |

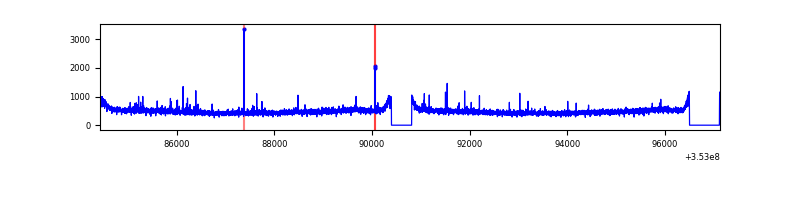

| B | 12701 | 11673 | 3 | 3 | 0.02% | 0.03% |  |
| C | 12701 | 11673 | 0 | 0 | 0.00% | 0.00% |  |

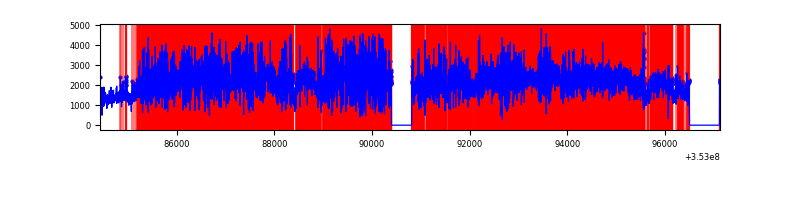

| D | 12701 | 11672 | 7587 | 7587 | 59.74% | 65.00% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 1 | 113 | 22688 | 72.91 | 1437 | 1406 | 291.9 |
| A | 13 | 254 | 22476 | 72.18 | 1437 | 1406 | 291.9 |
| A | 5 | 98 | 17914 | 56.55 | 1437 | 1406 | 291.9 |
| B | 12 | 111 | 34732 | 121.76 | 1423 | 1388 | 273.8 |
| B | 11 | 111 | 31708 | 110.72 | 1423 | 1388 | 273.8 |
| B | 14 | 111 | 28580 | 99.3 | 1423 | 1388 | 273.8 |
| C | 14 | 238 | 269256 | 833.73 | 1366 | 1378 | 321.3 |
| C | 3 | 233 | 100060 | 307.13 | 1366 | 1378 | 321.3 |
| C | 14 | 254 | 70764 | 215.95 | 1366 | 1378 | 321.3 |
| D | 8 | 195 | 11713804 | 47226.48 | 1032 | 1003 | 248.0 |
| D | 7 | 80 | 6455839 | 26026.16 | 1032 | 1003 | 248.0 |
| D | 1 | 52 | 1530621 | 6167.48 | 1032 | 1003 | 248.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |

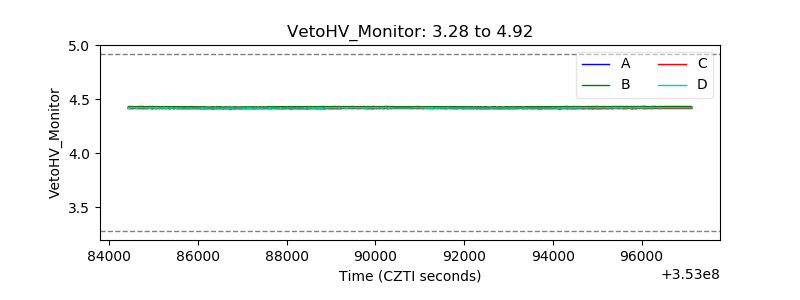

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

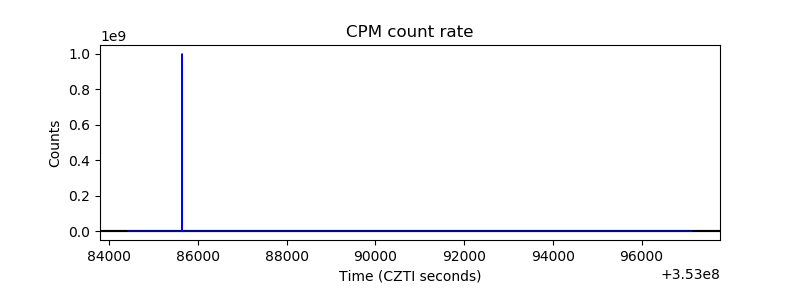

| _CPM_Rate |  |

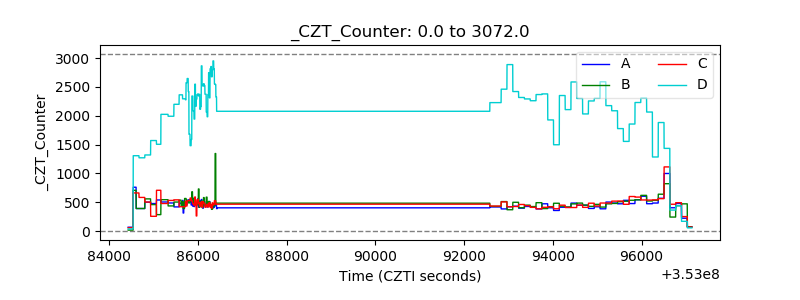

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

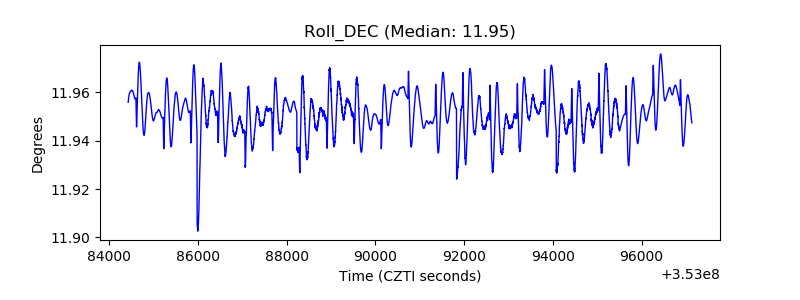

| _Roll_DEC |  |
| _Roll_RA |  |

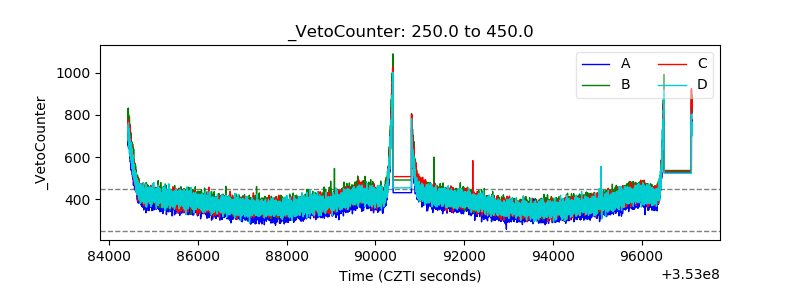

| Veto Counter |  |
