| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_102T09_9000004242_29468cztM0_level2.evt | modeM0/AS1A10_102T09_9000004242_29468cztM0_level2_quad_clean.evt |
| Size (bytes) | 719,533,440 | 90,887,040 |
| Size | 686.2 MB | 86.7 MB |
| Events in quadrant A | 3,328,980 | 607,304 |
| Events in quadrant B | 3,292,205 | 625,450 |
| Events in quadrant C | 4,512,202 | 581,725 |
| Events in quadrant D | 10,218,940 | 483,608 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13971 | 2 |
| B | 0 | 13762 | 2 |
| C | 0 | 18021 | 2 |
| D | 0 | 34887 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6498 | 55 | 0.846414% |
| B | 6498 | 51 | 0.784857% |
| C | 6498 | 142 | 2.185288% |
| D | 6498 | 1503 | 23.130194% |

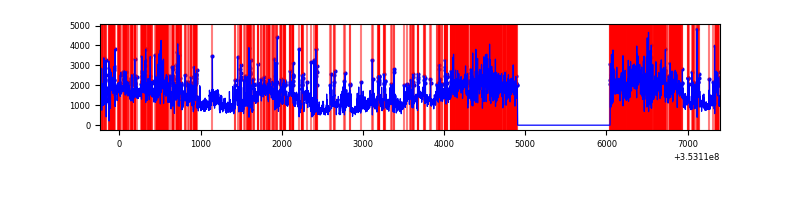

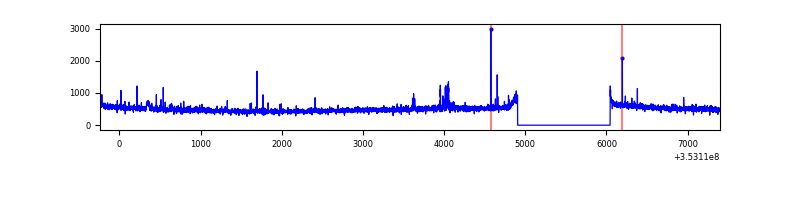

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7638 | 6499 | 20 | 20 | 0.26% | 0.31% |  |
| B | 7638 | 6499 | 2 | 2 | 0.03% | 0.03% |  |
| C | 7638 | 6499 | 9 | 9 | 0.12% | 0.14% |  |
| D | 7638 | 6499 | 1396 | 1396 | 18.28% | 21.48% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 13 | 148784 | 893.83 | 821 | 805 | 165.6 |
| A | 13 | 254 | 12251 | 69.14 | 821 | 805 | 165.6 |
| A | 14 | 31 | 9837 | 54.56 | 821 | 805 | 165.6 |
| B | 0 | 190 | 29051 | 181.18 | 824 | 804 | 155.9 |
| B | 12 | 111 | 18993 | 116.67 | 824 | 804 | 155.9 |
| B | 11 | 111 | 17340 | 106.07 | 824 | 804 | 155.9 |
| C | 3 | 233 | 1276663 | 6931.65 | 787 | 793 | 184.1 |
| C | 14 | 238 | 134191 | 724.74 | 787 | 793 | 184.1 |
| C | 2 | 114 | 15852 | 81.81 | 787 | 793 | 184.1 |
| D | 8 | 195 | 5863615 | 33840.45 | 733 | 717 | 173.3 |
| D | 1 | 52 | 1088714 | 6279.88 | 733 | 717 | 173.3 |
| D | 7 | 80 | 261404 | 1504.68 | 733 | 717 | 173.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

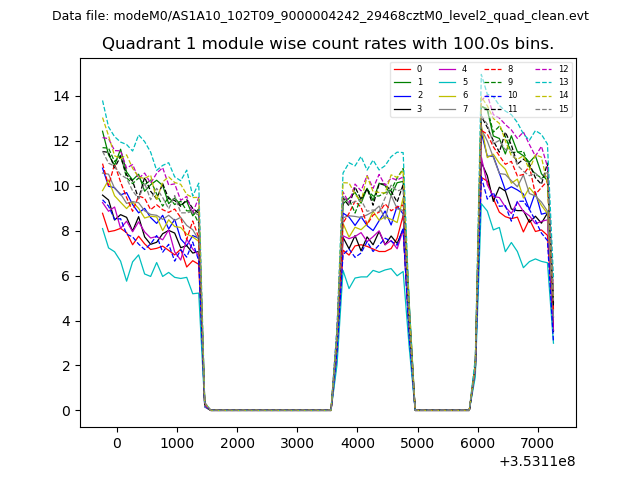

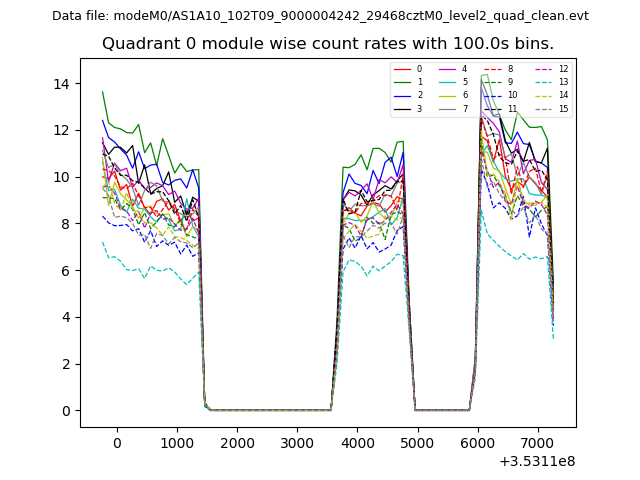

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |

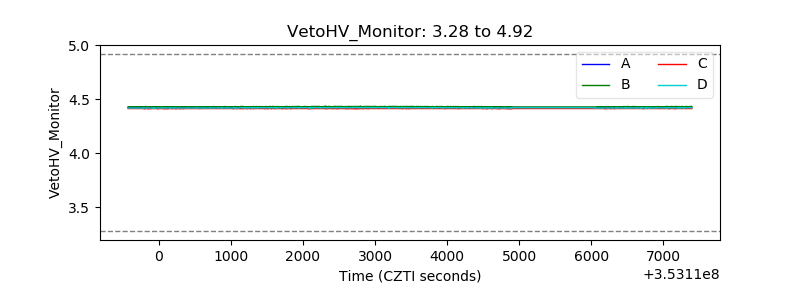

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

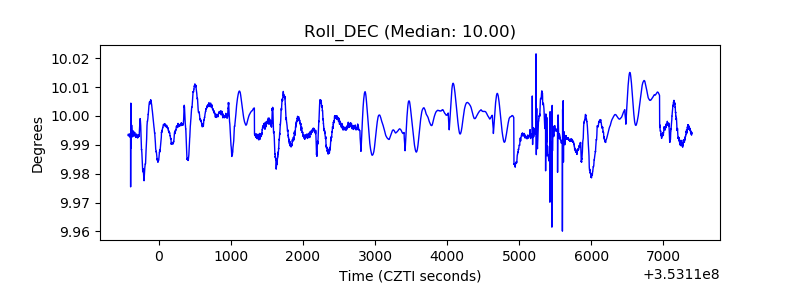

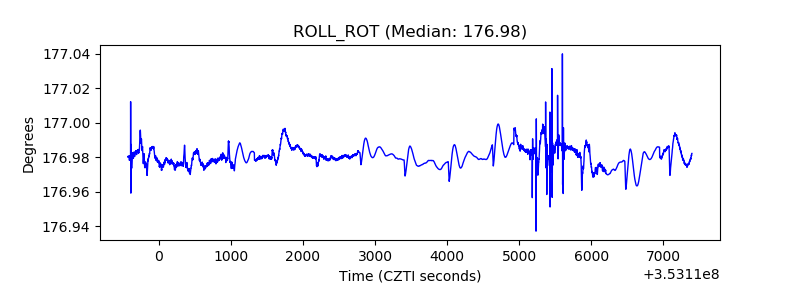

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

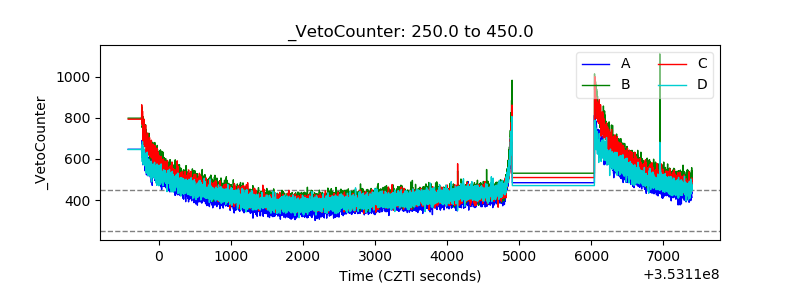

| Veto Counter |  |
