| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_064T03_9000004246_29483cztM0_level2.evt | modeM0/AS1A10_064T03_9000004246_29483cztM0_level2_quad_clean.evt |
| Size (bytes) | 734,083,200 | 124,191,360 |
| Size | 700.1 MB | 118.4 MB |
| Events in quadrant A | 3,197,733 | 880,905 |
| Events in quadrant B | 3,284,403 | 905,726 |
| Events in quadrant C | 4,232,193 | 844,318 |
| Events in quadrant D | 11,087,431 | 684,882 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13542 | 2 |
| B | 0 | 13819 | 2 |
| C | 0 | 16920 | 2 |
| D | 0 | 37369 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19 | 0 |
| B | 0 | 20 | 0 |
| C | 0 | 20 | 0 |
| D | 0 | 20 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6373 | 18 | 0.282442% |
| B | 6373 | 51 | 0.800251% |
| C | 6373 | 110 | 1.726032% |
| D | 6373 | 2239 | 35.132591% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7593 | 6374 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7593 | 6374 | 6 | 6 | 0.08% | 0.09% |  |
| C | 7593 | 6374 | 9 | 9 | 0.12% | 0.14% |  |
| D | 7593 | 6374 | 2024 | 2024 | 26.66% | 31.75% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 1 | 113 | 14218 | 81.86 | 820 | 805 | 163.9 |
| A | 13 | 254 | 12592 | 71.93 | 820 | 805 | 163.9 |
| A | 15 | 174 | 11908 | 67.76 | 820 | 805 | 163.9 |
| B | 0 | 190 | 37668 | 241.82 | 822 | 804 | 152.4 |
| B | 12 | 111 | 18295 | 114.73 | 822 | 804 | 152.4 |
| B | 11 | 111 | 16130 | 100.53 | 822 | 804 | 152.4 |
| C | 3 | 233 | 935322 | 5110.11 | 792 | 798 | 182.9 |
| C | 14 | 238 | 129873 | 705.8 | 792 | 798 | 182.9 |
| C | 7 | 247 | 62409 | 336.9 | 792 | 798 | 182.9 |
| D | 8 | 195 | 5101057 | 31279.76 | 696 | 677 | 163.1 |
| D | 1 | 52 | 1972976 | 12095.77 | 696 | 677 | 163.1 |
| D | 7 | 80 | 1139990 | 6987.21 | 696 | 677 | 163.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

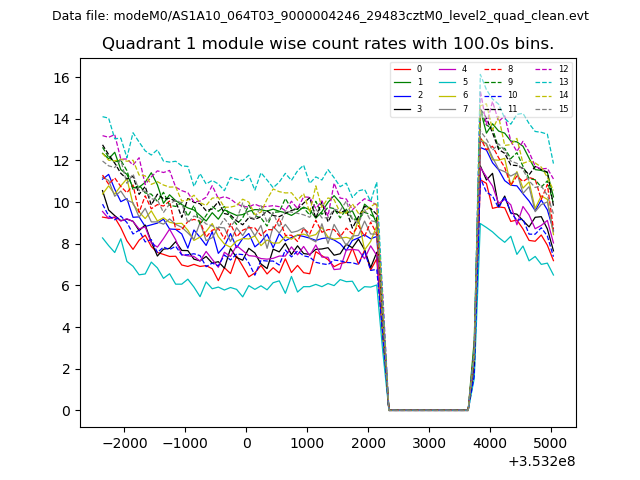

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

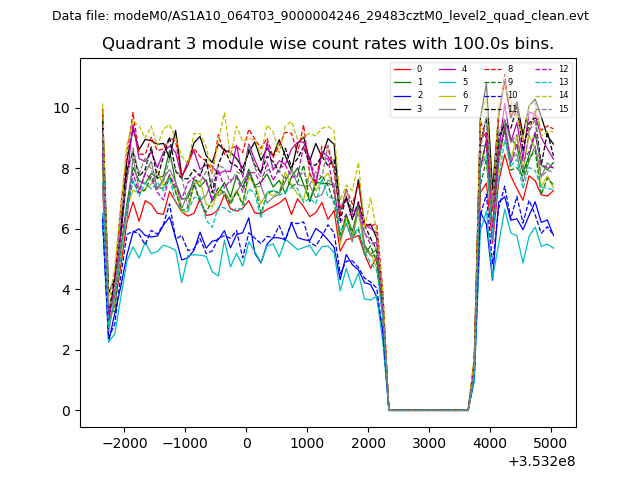

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

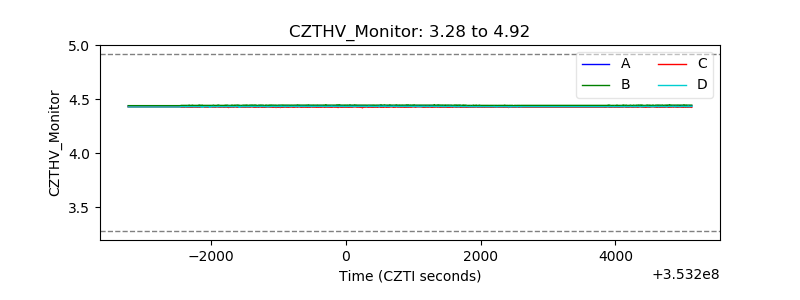

| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

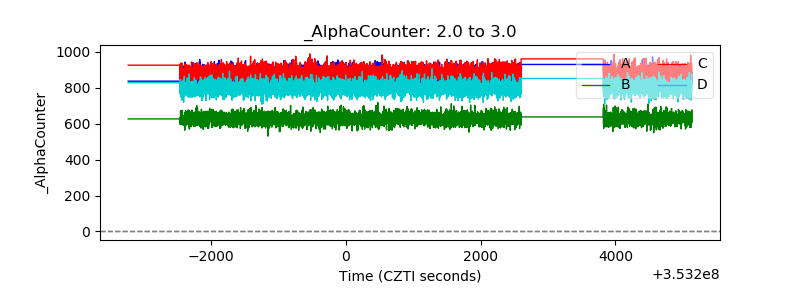

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

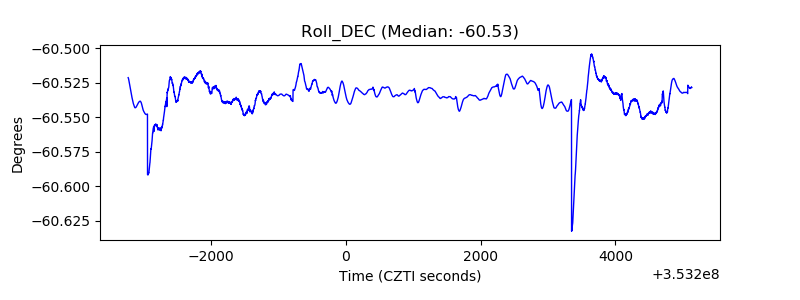

| _Roll_DEC |  |

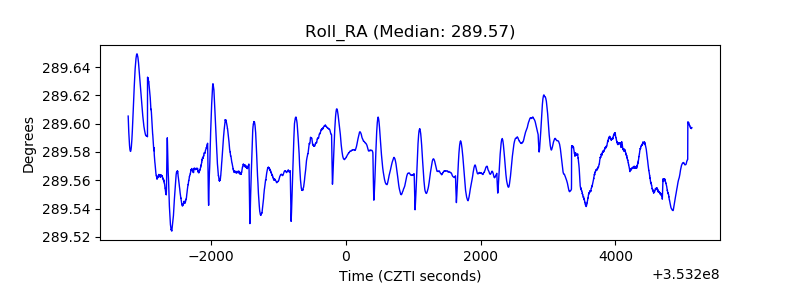

| _Roll_RA |  |
| Veto Counter |  |
