| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_094T05_9000004244_29481cztM0_level2.evt | modeM0/AS1A10_094T05_9000004244_29481cztM0_level2_quad_clean.evt |
| Size (bytes) | 406,255,680 | 61,176,960 |
| Size | 387.4 MB | 58.3 MB |
| Events in quadrant A | 1,760,025 | 424,707 |
| Events in quadrant B | 1,821,888 | 435,350 |
| Events in quadrant C | 1,906,235 | 413,419 |
| Events in quadrant D | 6,568,038 | 321,022 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 7385 | 1 |
| B | 0 | 7553 | 1 |
| C | 0 | 7754 | 1 |
| D | 0 | 22041 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9 | 0 |
| B | 0 | 9 | 0 |
| C | 0 | 9 | 0 |
| D | 0 | 9 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 76 | 0 |
| B | 0 | 76 | 0 |
| C | 0 | 76 | 0 |
| D | 0 | 76 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 3631 | 10 | 0.275406% |
| B | 3631 | 18 | 0.495731% |
| C | 3631 | 35 | 0.963922% |
| D | 3631 | 1449 | 39.906362% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 4566 | 3632 | 0 | 0 | 0.00% | 0.00% |  |
| B | 4566 | 3632 | 3 | 3 | 0.07% | 0.08% |  |
| C | 4566 | 3632 | 1 | 1 | 0.02% | 0.03% |  |
| D | 4566 | 3632 | 1276 | 1276 | 27.95% | 35.13% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 7064 | 71.44 | 454 | 444 | 92.7 |
| A | 3 | 137 | 4434 | 43.06 | 454 | 444 | 92.7 |
| A | 0 | 226 | 3815 | 36.38 | 454 | 444 | 92.7 |
| B | 0 | 190 | 32769 | 367.9 | 453 | 441 | 87.9 |
| B | 12 | 111 | 10962 | 119.73 | 453 | 441 | 87.9 |
| B | 11 | 111 | 9562 | 103.8 | 453 | 441 | 87.9 |
| C | 3 | 233 | 109441 | 1069.37 | 434 | 438 | 101.9 |
| C | 14 | 238 | 70424 | 686.6 | 434 | 438 | 101.9 |
| C | 7 | 247 | 26222 | 252.95 | 434 | 438 | 101.9 |
| D | 8 | 195 | 3282980 | 35744.24 | 381 | 368 | 91.8 |
| D | 1 | 52 | 1297471 | 14124.11 | 381 | 368 | 91.8 |
| D | 7 | 80 | 394506 | 4291.75 | 381 | 368 | 91.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

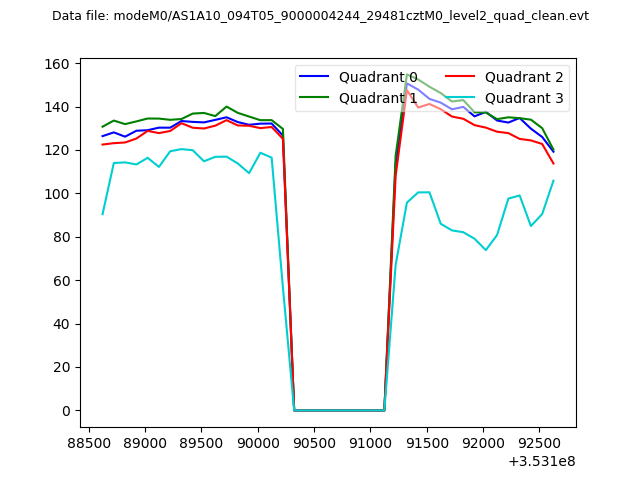

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

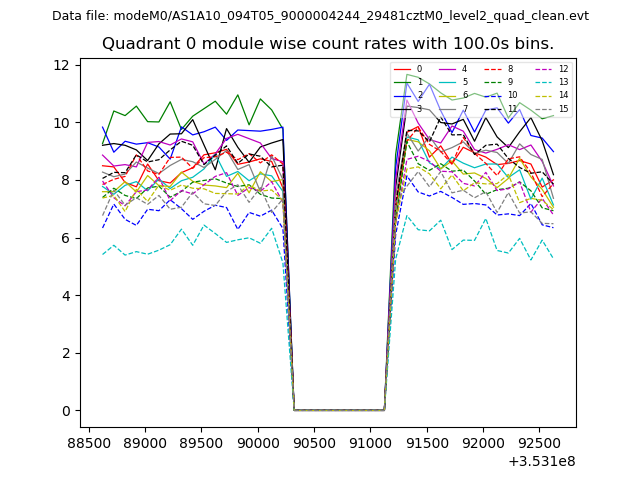

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

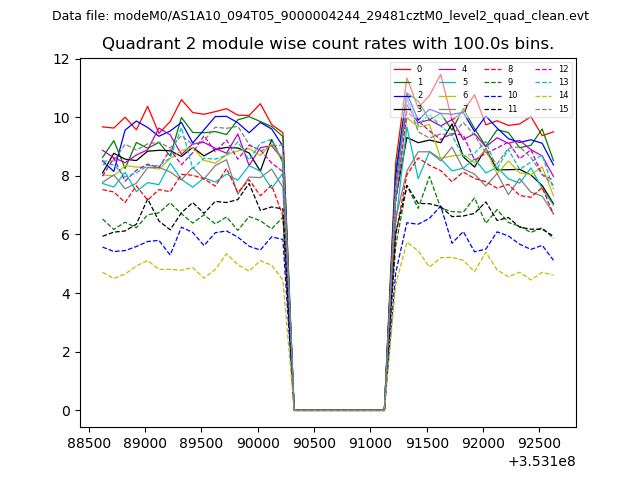

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

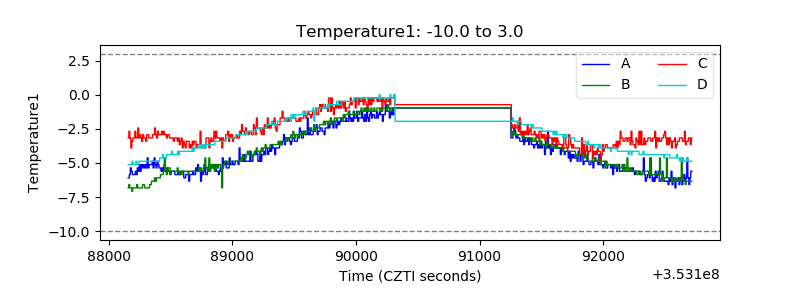

| Temperature 1 |  |
| Veto HV Monitor |  |

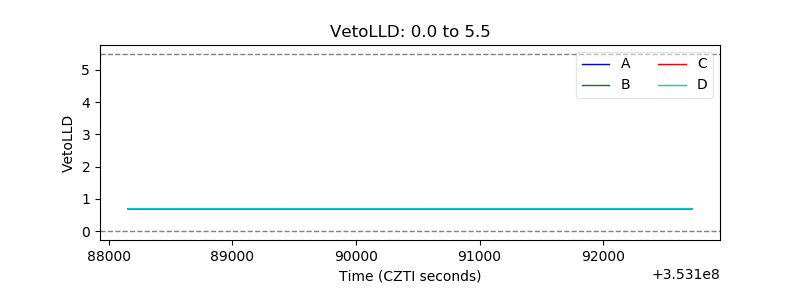

| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

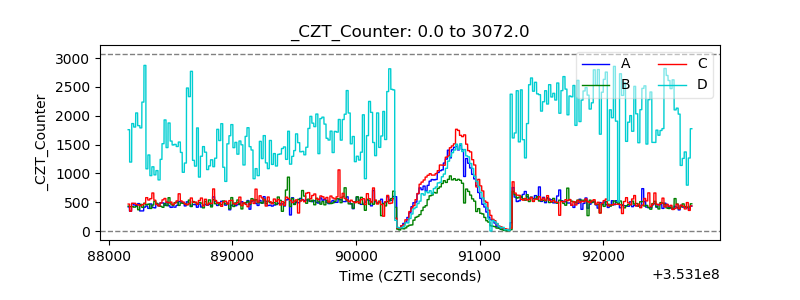

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

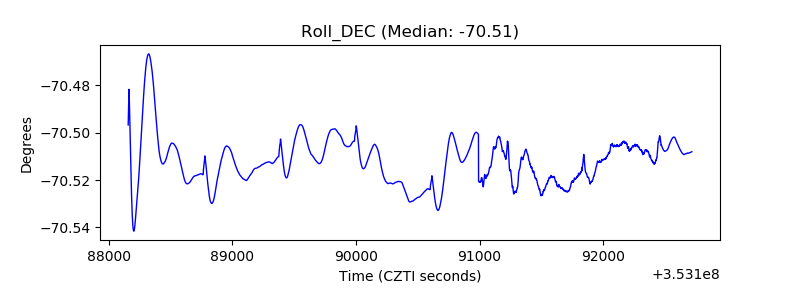

| _Roll_DEC |  |

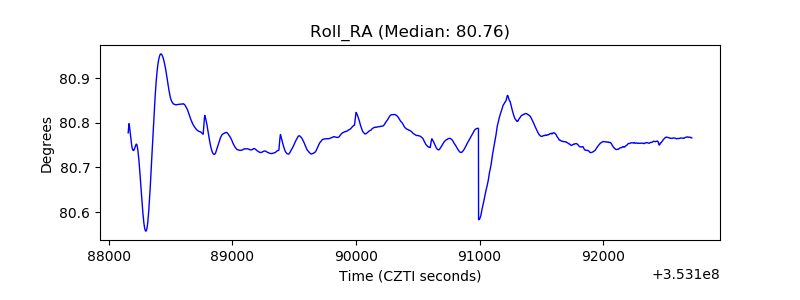

| _Roll_RA |  |
| Veto Counter |  |
