| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_048T05_9000004250_29513cztM0_level2.evt | modeM0/AS1A10_048T05_9000004250_29513cztM0_level2_quad_clean.evt |
| Size (bytes) | 738,241,920 | 105,439,680 |
| Size | 704.0 MB | 100.6 MB |
| Events in quadrant A | 3,311,426 | 700,580 |
| Events in quadrant B | 3,472,890 | 728,836 |
| Events in quadrant C | 3,570,453 | 700,323 |
| Events in quadrant D | 11,568,184 | 613,683 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13740 | 2 |
| B | 0 | 14205 | 2 |
| C | 0 | 14376 | 2 |
| D | 0 | 38821 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6442 | 25 | 0.388078% |
| B | 6443 | 47 | 0.729474% |
| C | 6443 | 69 | 1.070930% |
| D | 6443 | 2003 | 31.088002% |

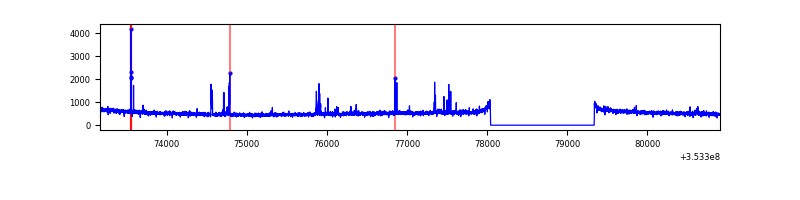

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7737 | 6443 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7738 | 6444 | 6 | 6 | 0.08% | 0.09% |  |
| C | 7738 | 6444 | 5 | 5 | 0.06% | 0.08% |  |
| D | 7738 | 6444 | 2382 | 2382 | 30.78% | 36.96% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 11 | 29 | 11991 | 65.29 | 854 | 839 | 170.8 |
| A | 13 | 254 | 11927 | 64.92 | 854 | 839 | 170.8 |
| A | 3 | 137 | 7738 | 40.39 | 854 | 839 | 170.8 |
| B | 15 | 222 | 48602 | 295.94 | 858 | 836 | 161.4 |
| B | 0 | 230 | 30656 | 184.76 | 858 | 836 | 161.4 |
| B | 0 | 156 | 26674 | 160.08 | 858 | 836 | 161.4 |
| C | 14 | 238 | 136453 | 701.67 | 836 | 845 | 193.3 |
| C | 3 | 233 | 119790 | 615.45 | 836 | 845 | 193.3 |
| C | 7 | 247 | 41821 | 212.02 | 836 | 845 | 193.3 |
| D | 8 | 195 | 7419663 | 41954.2 | 754 | 734 | 176.8 |
| D | 12 | 33 | 979541 | 5535.17 | 754 | 734 | 176.8 |
| D | 7 | 238 | 226959 | 1279.31 | 754 | 734 | 176.8 |

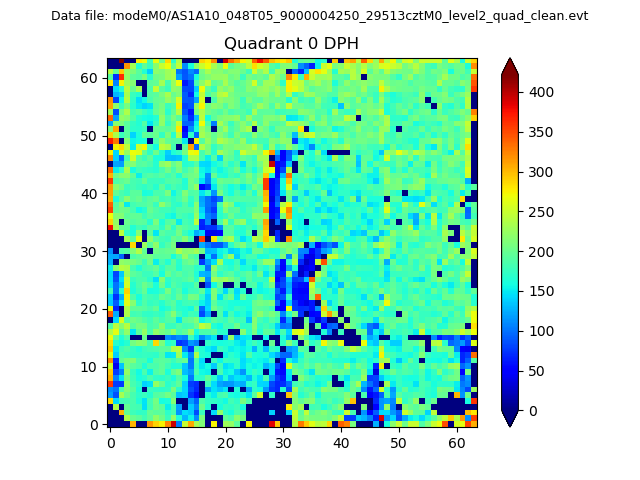

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

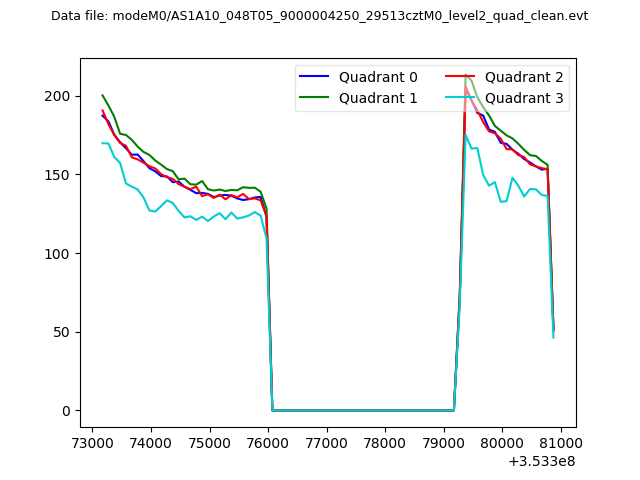

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

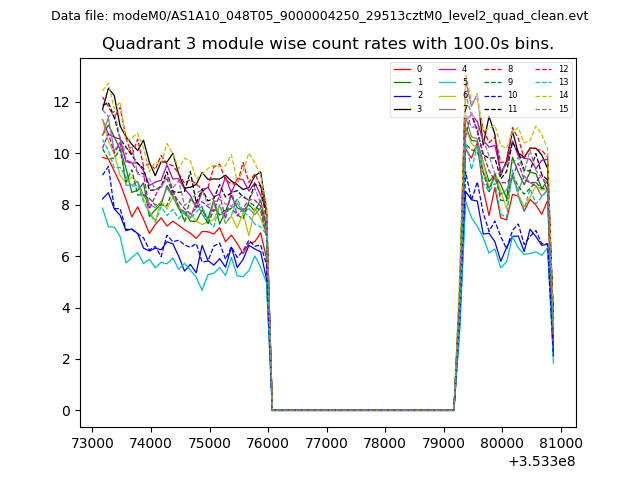

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

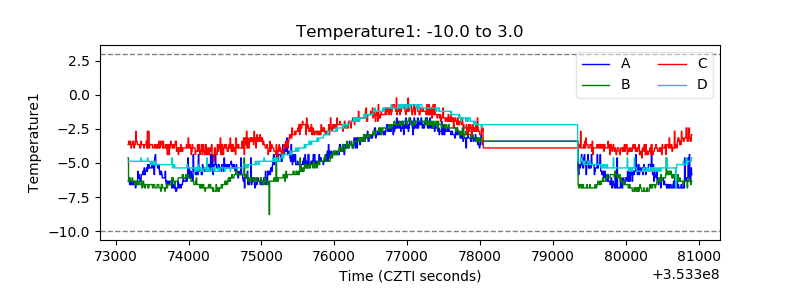

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

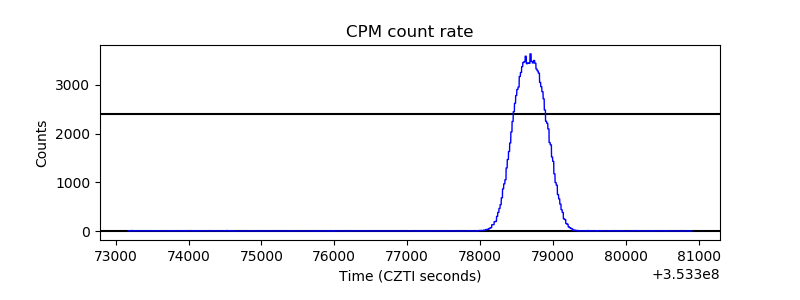

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

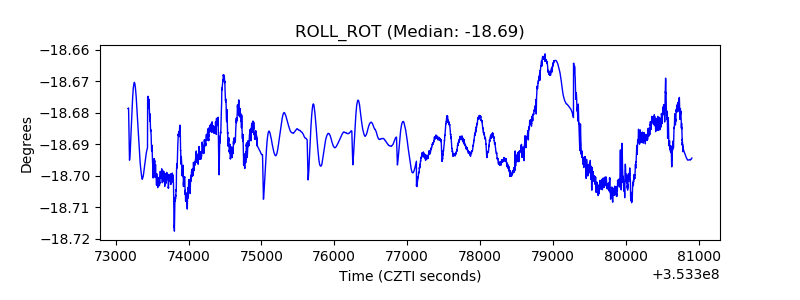

| _ROLL_ROT |  |

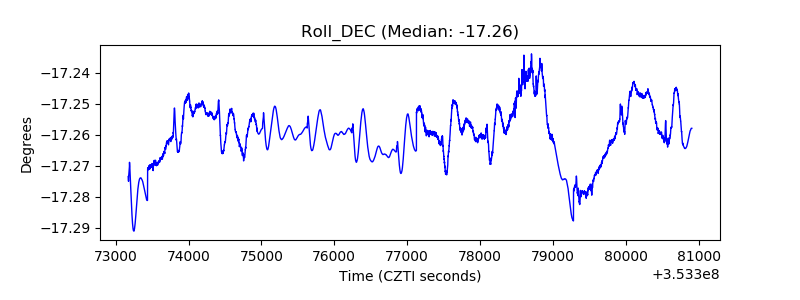

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
