| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_048T05_9000004250_29519cztM0_level2.evt | modeM0/AS1A10_048T05_9000004250_29519cztM0_level2_quad_clean.evt |
| Size (bytes) | 503,832,960 | 42,183,360 |
| Size | 480.5 MB | 40.2 MB |
| Events in quadrant A | 2,029,837 | 262,821 |
| Events in quadrant B | 2,058,774 | 268,665 |
| Events in quadrant C | 2,184,568 | 259,996 |
| Events in quadrant D | 8,696,585 | 185,026 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 84 | 0 |
| B | 0 | 84 | 0 |
| C | 0 | 84 | 0 |
| D | 0 | 84 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 1 | 140293093153576 | 46 |
| B | 1 | -1 | -1 |
| C | 1 | -1 | -1 |
| D | 1 | -1 | -1 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8780 | 1 |
| B | 0 | 8802 | 1 |
| C | 0 | 8942 | 1 |
| D | 0 | 28747 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4259 | 53 | 1.244424% |
| B | 4259 | 64 | 1.502700% |
| C | 4259 | 97 | 2.277530% |
| D | 4259 | 2286 | 53.674571% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 4259 | 4259 | 0 | 0 | 0.00% | 0.00% |  |
| B | 4259 | 4259 | 0 | 0 | 0.00% | 0.00% |  |
| C | 4259 | 4259 | 1 | 1 | 0.02% | 0.02% |  |
| D | 4259 | 4259 | 2425 | 2425 | 56.94% | 56.94% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 8111 | 70.31 | 526 | 516 | 108.0 |
| A | 3 | 137 | 5411 | 45.32 | 526 | 516 | 108.0 |
| A | 0 | 226 | 4336 | 35.37 | 526 | 516 | 108.0 |
| B | 0 | 190 | 13575 | 126.41 | 518 | 504 | 103.4 |
| B | 12 | 111 | 12423 | 115.27 | 518 | 504 | 103.4 |
| B | 11 | 111 | 11425 | 105.62 | 518 | 504 | 103.4 |
| C | 14 | 238 | 89317 | 732.58 | 505 | 509 | 121.2 |
| C | 3 | 233 | 80203 | 657.4 | 505 | 509 | 121.2 |
| C | 14 | 254 | 13239 | 105.01 | 505 | 509 | 121.2 |
| D | 8 | 195 | 4795165 | 46563.93 | 421 | 408 | 103.0 |
| D | 7 | 238 | 1265929 | 12290.01 | 421 | 408 | 103.0 |
| D | 7 | 223 | 640355 | 6214.8 | 421 | 408 | 103.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

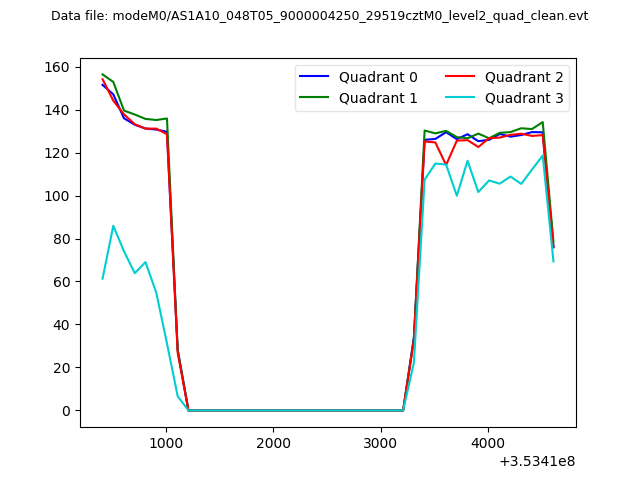

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

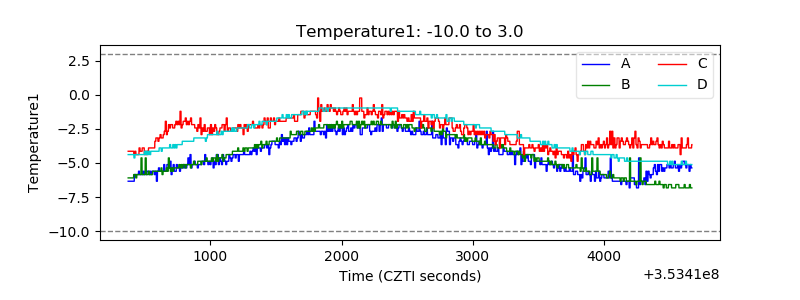

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

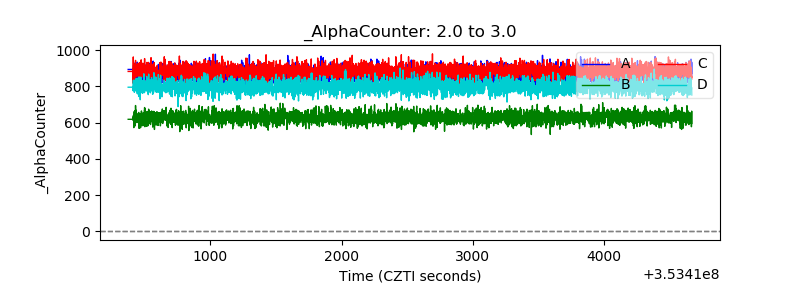

| Alpha Counter |  |
| _CPM_Rate |  |

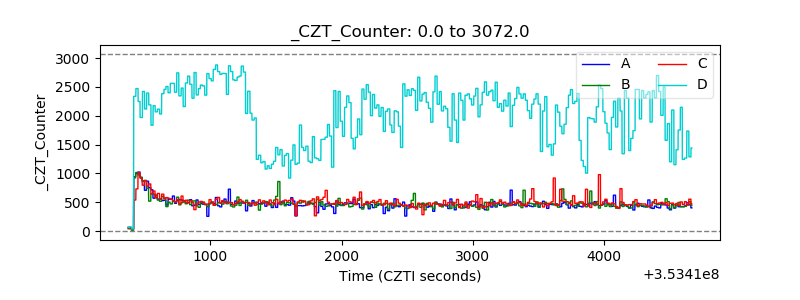

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

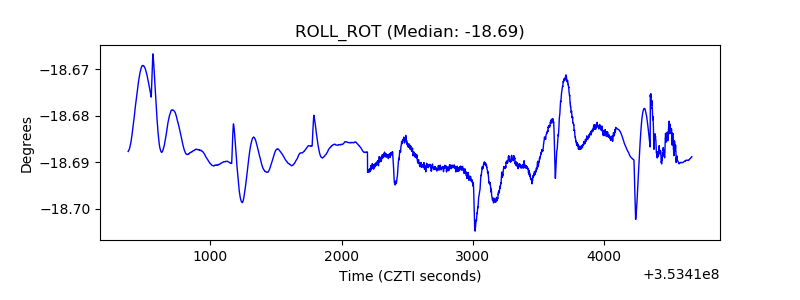

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
