| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_073T07_9000004254_29530cztM0_level2.evt | modeM0/AS1A10_073T07_9000004254_29530cztM0_level2_quad_clean.evt |
| Size (bytes) | 595,016,640 | 95,872,320 |
| Size | 567.5 MB | 91.4 MB |
| Events in quadrant A | 2,712,703 | 651,349 |
| Events in quadrant B | 2,768,613 | 675,278 |
| Events in quadrant C | 2,869,530 | 654,993 |
| Events in quadrant D | 9,318,546 | 557,946 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 117 | 9 |
| B | 0 | 117 | 9 |
| C | 0 | 112 | 6 |
| D | 0 | 116 | 8 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 14 | 2 |
| D | 0 | 12 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11910 | 783 |
| B | 0 | 12082 | 764 |
| C | 0 | 12367 | 839 |
| D | 0 | 33737 | 2502 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5196 | 43 | 0.827560% |
| B | 5197 | 84 | 1.616317% |
| C | 5191 | 104 | 2.003468% |
| D | 5150 | 1611 | 31.281553% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7872 | 5229 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7872 | 5234 | 1 | 1 | 0.01% | 0.02% |  |
| C | 7872 | 5214 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7872 | 5183 | 1955 | 1955 | 24.83% | 37.72% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 9727 | 64.17 | 701 | 689 | 140.8 |
| A | 0 | 13 | 6544 | 41.57 | 701 | 689 | 140.8 |
| A | 3 | 137 | 6106 | 38.46 | 701 | 689 | 140.8 |
| B | 12 | 111 | 15784 | 114.01 | 702 | 686 | 132.4 |
| B | 11 | 111 | 14006 | 100.59 | 702 | 686 | 132.4 |
| B | 14 | 111 | 13324 | 95.44 | 702 | 686 | 132.4 |
| C | 14 | 238 | 113328 | 703.32 | 688 | 697 | 160.1 |
| C | 3 | 233 | 59383 | 366.46 | 688 | 697 | 160.1 |
| C | 2 | 114 | 12487 | 73.62 | 688 | 697 | 160.1 |
| D | 8 | 195 | 5995080 | 40390.39 | 632 | 617 | 148.4 |
| D | 7 | 238 | 657044 | 4422.97 | 632 | 617 | 148.4 |
| D | 7 | 223 | 184348 | 1237.97 | 632 | 617 | 148.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

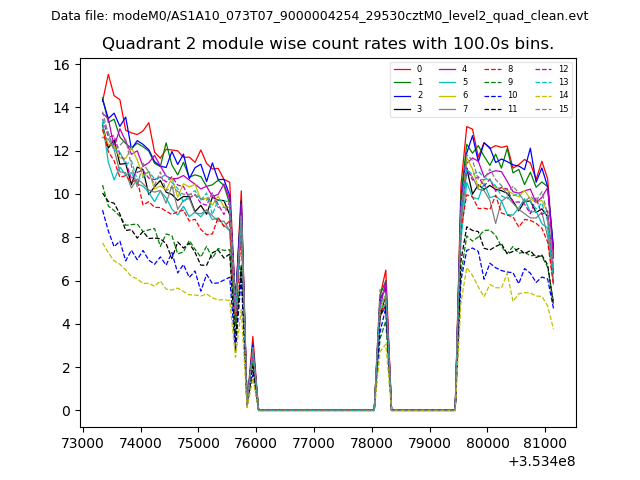

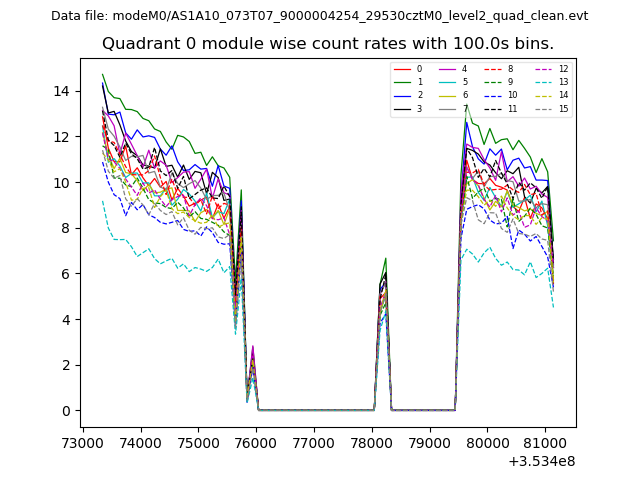

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

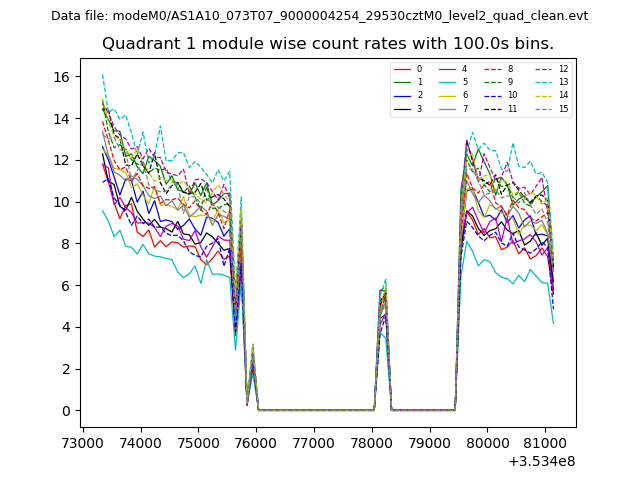

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

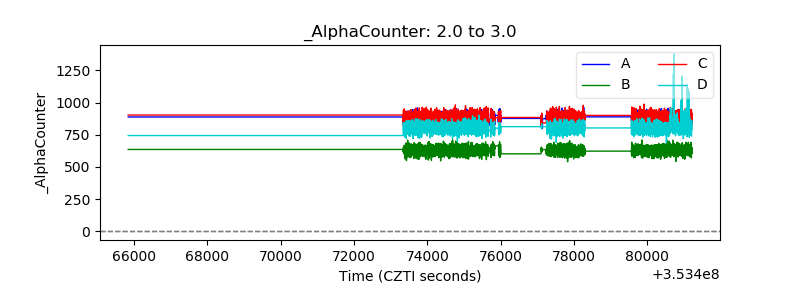

| Alpha Counter |  |

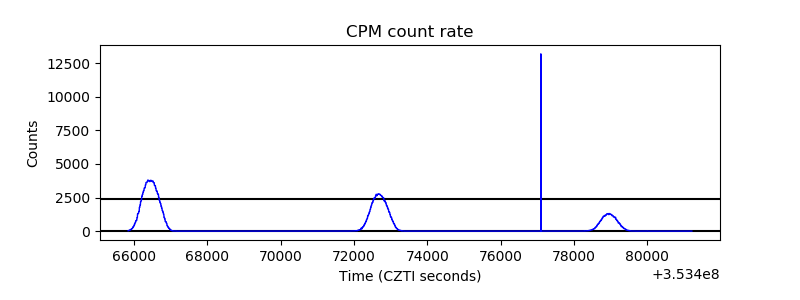

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

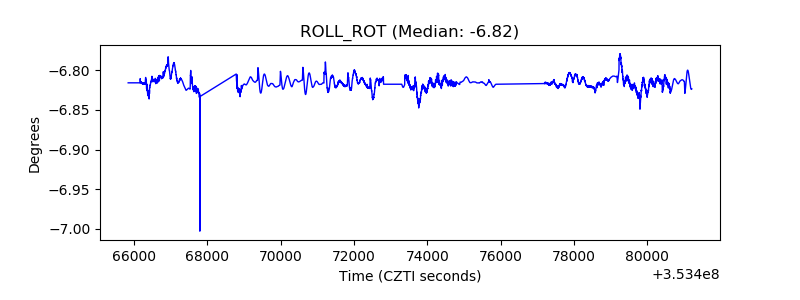

| _ROLL_ROT |  |
| _Roll_DEC |  |

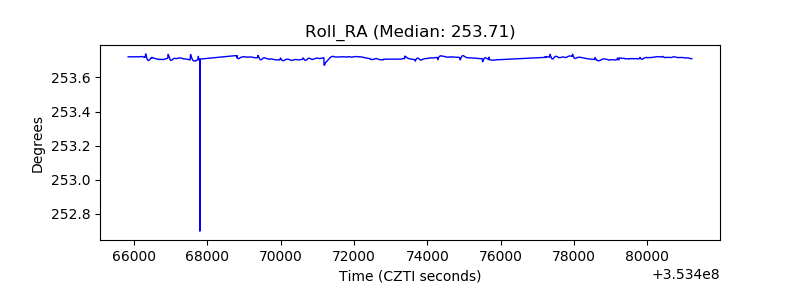

| _Roll_RA |  |
| Veto Counter |  |
