| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_073T07_9000004254_29537cztM0_level2.evt | modeM0/AS1A10_073T07_9000004254_29537cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,828,886,400 | 219,562,560 |
| Size | 1.7 GB | 209.4 MB |
| Events in quadrant A | 8,939,173 | 1,367,739 |
| Events in quadrant B | 9,667,150 | 1,402,801 |
| Events in quadrant C | 9,779,835 | 1,327,792 |
| Events in quadrant D | 25,743,318 | 1,261,207 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 380 | 0 |
| B | 0 | 380 | 0 |
| C | 0 | 380 | 0 |
| D | 0 | 380 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 16 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 38609 | 3 |
| B | 0 | 40560 | 3 |
| C | 0 | 40461 | 3 |
| D | 0 | 89725 | 3 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 18716 | 245 | 1.309040% |
| B | 18717 | 370 | 1.976813% |
| C | 18717 | 1099 | 5.871667% |
| D | 18716 | 2254 | 12.043172% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 20296 | 18719 | 12 | 12 | 0.06% | 0.06% |  |
| B | 20297 | 18720 | 60 | 60 | 0.30% | 0.32% |  |
| C | 20297 | 18718 | 5 | 5 | 0.02% | 0.03% |  |
| D | 20296 | 18718 | 2000 | 2000 | 9.85% | 10.68% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 13 | 86802 | 183.43 | 2284 | 2235 | 461.0 |
| A | 13 | 254 | 36334 | 73.96 | 2284 | 2235 | 461.0 |
| A | 3 | 137 | 23084 | 45.22 | 2284 | 2235 | 461.0 |
| B | 5 | 255 | 662879 | 1516.12 | 2266 | 2205 | 435.8 |
| B | 0 | 190 | 74981 | 167.01 | 2266 | 2205 | 435.8 |
| B | 12 | 111 | 55362 | 121.98 | 2266 | 2205 | 435.8 |
| C | 14 | 238 | 602690 | 1187.31 | 2162 | 2182 | 505.8 |
| C | 14 | 254 | 358747 | 704.99 | 2162 | 2182 | 505.8 |
| C | 3 | 233 | 326966 | 642.15 | 2162 | 2182 | 505.8 |
| D | 8 | 195 | 15992993 | 31046.06 | 2161 | 2104 | 515.1 |
| D | 7 | 238 | 561718 | 1086.48 | 2161 | 2104 | 515.1 |
| D | 12 | 33 | 410957 | 793.78 | 2161 | 2104 | 515.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

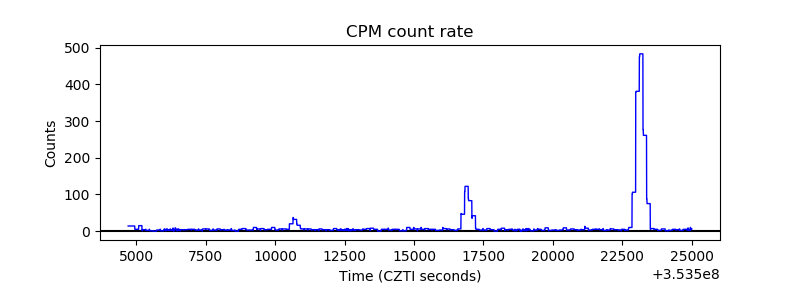

| _CPM_Rate |  |

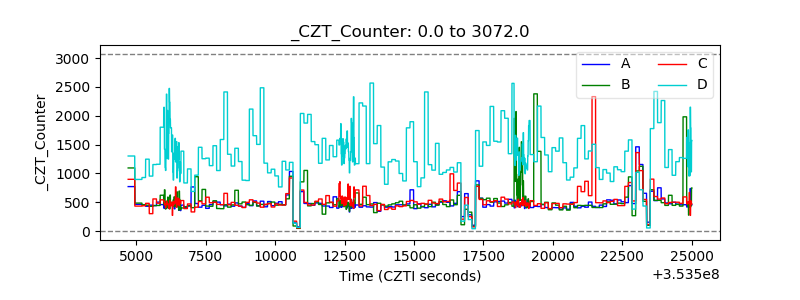

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

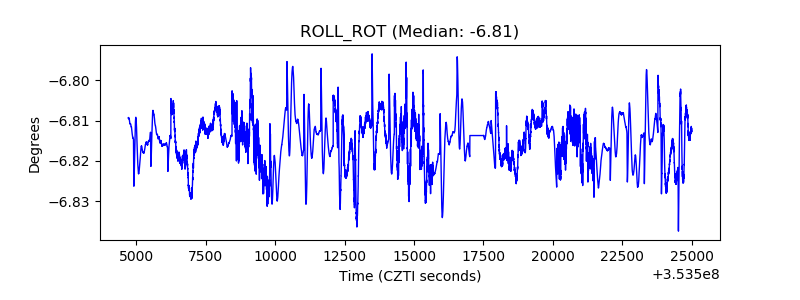

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

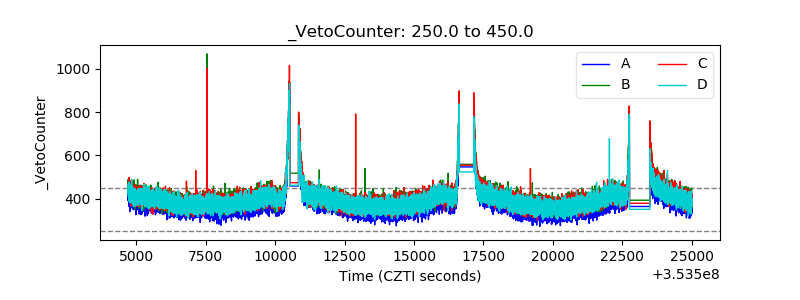

| Veto Counter |  |
