| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_073T07_9000004254_29544cztM0_level2.evt | modeM0/AS1A10_073T07_9000004254_29544cztM0_level2_quad_clean.evt |
| Size (bytes) | 763,822,080 | 107,599,680 |
| Size | 728.4 MB | 102.6 MB |
| Events in quadrant A | 3,434,771 | 717,968 |
| Events in quadrant B | 3,606,664 | 749,515 |
| Events in quadrant C | 3,815,195 | 721,898 |
| Events in quadrant D | 11,833,078 | 611,084 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 17 | 0 |
| C | 0 | 17 | 0 |
| D | 0 | 17 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14129 | 3 |
| B | 0 | 14666 | 2 |
| C | 0 | 15426 | 2 |
| D | 0 | 39695 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6568 | 46 | 0.700365% |
| B | 6568 | 93 | 1.415956% |
| C | 6568 | 117 | 1.781364% |
| D | 6568 | 2397 | 36.495128% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7898 | 6569 | 3 | 3 | 0.04% | 0.05% |  |
| B | 7898 | 6569 | 12 | 12 | 0.15% | 0.18% |  |
| C | 7898 | 6569 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7898 | 6568 | 2560 | 2560 | 32.41% | 38.98% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 13 | 46581 | 260.71 | 878 | 861 | 175.4 |
| A | 13 | 254 | 13064 | 69.59 | 878 | 861 | 175.4 |
| A | 3 | 137 | 7776 | 39.43 | 878 | 861 | 175.4 |
| B | 5 | 255 | 76278 | 461.44 | 882 | 865 | 163.4 |
| B | 0 | 190 | 40784 | 244.26 | 882 | 865 | 163.4 |
| B | 12 | 111 | 19499 | 114.02 | 882 | 865 | 163.4 |
| C | 3 | 233 | 281578 | 1397.16 | 862 | 871 | 200.9 |
| C | 14 | 238 | 145660 | 720.66 | 862 | 871 | 200.9 |
| C | 2 | 114 | 15482 | 72.72 | 862 | 871 | 200.9 |
| D | 8 | 195 | 7551376 | 40623.62 | 785 | 767 | 185.9 |
| D | 12 | 33 | 437977 | 2352.27 | 785 | 767 | 185.9 |
| D | 7 | 80 | 219206 | 1175.24 | 785 | 767 | 185.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

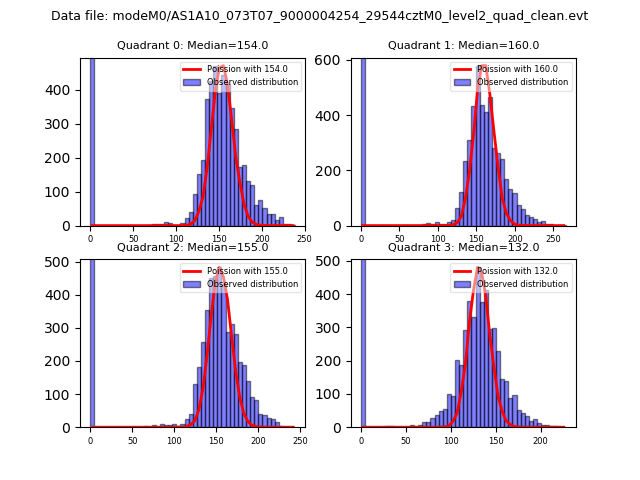

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

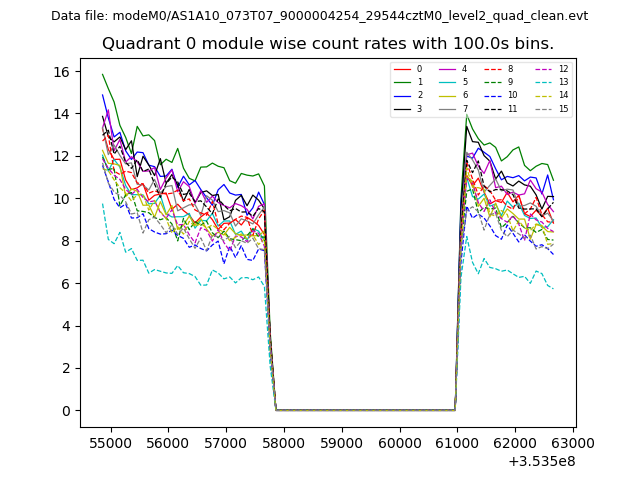

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
