| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C05_019T01_9000004264_29559cztM0_level2.evt | modeM0/AS1C05_019T01_9000004264_29559cztM0_level2_quad_clean.evt |
| Size (bytes) | 494,614,080 | 115,583,040 |
| Size | 471.7 MB | 110.2 MB |
| Events in quadrant A | 3,150,811 | 775,490 |
| Events in quadrant B | 3,247,205 | 804,785 |
| Events in quadrant C | 3,188,823 | 762,912 |
| Events in quadrant D | 4,956,340 | 709,095 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13424 | 2 |
| B | 0 | 13667 | 2 |
| C | 0 | 13529 | 2 |
| D | 0 | 19028 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17 | 0 |
| B | 0 | 18 | 0 |
| C | 0 | 18 | 0 |
| D | 0 | 18 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6421 | 16 | 0.249182% |
| B | 6421 | 29 | 0.451643% |
| C | 6421 | 103 | 1.604112% |
| D | 6421 | 391 | 6.089394% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7751 | 6422 | 4 | 4 | 0.05% | 0.06% |  |
| B | 7751 | 6422 | 2 | 2 | 0.03% | 0.03% |  |
| C | 7751 | 6422 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7751 | 6422 | 265 | 265 | 3.42% | 4.13% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 13 | 67476 | 422.55 | 799 | 788 | 157.8 |
| A | 13 | 254 | 11668 | 68.94 | 799 | 788 | 157.8 |
| A | 3 | 137 | 7224 | 40.78 | 799 | 788 | 157.8 |
| B | 0 | 156 | 33917 | 223.18 | 803 | 784 | 148.5 |
| B | 0 | 189 | 28240 | 184.94 | 803 | 784 | 148.5 |
| B | 12 | 111 | 17955 | 115.66 | 803 | 784 | 148.5 |
| C | 14 | 238 | 143622 | 815.92 | 764 | 770 | 175.1 |
| C | 14 | 254 | 25514 | 141.33 | 764 | 770 | 175.1 |
| C | 15 | 208 | 16934 | 92.32 | 764 | 770 | 175.1 |
| D | 13 | 172 | 824006 | 4661.28 | 745 | 724 | 176.6 |
| D | 8 | 195 | 381510 | 2155.94 | 745 | 724 | 176.6 |
| D | 12 | 33 | 329366 | 1860.71 | 745 | 724 | 176.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

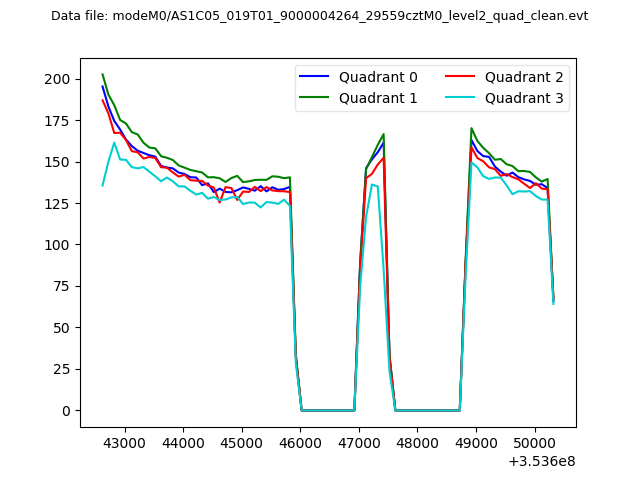

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

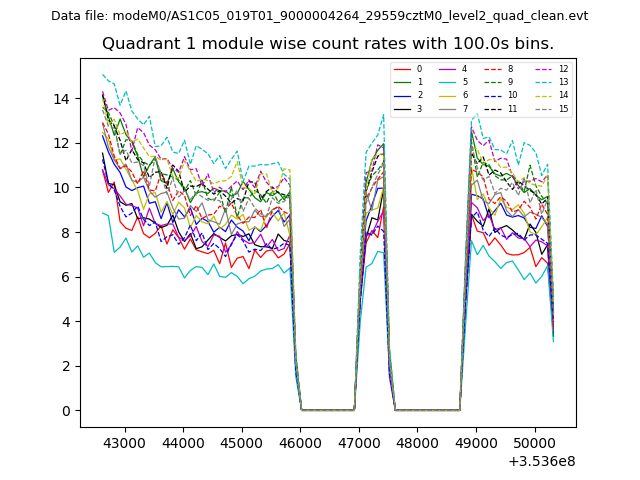

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

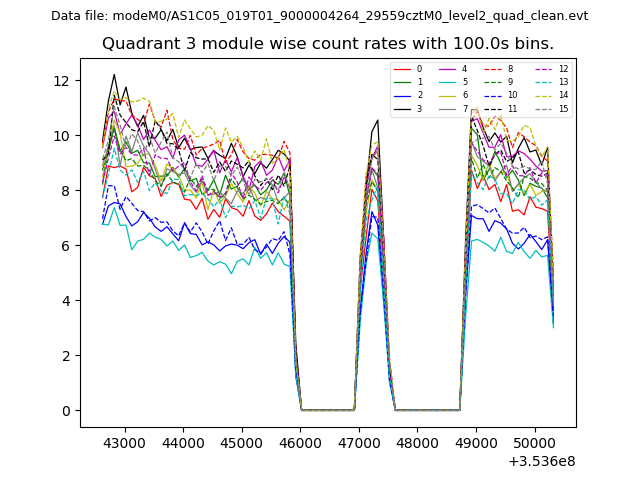

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

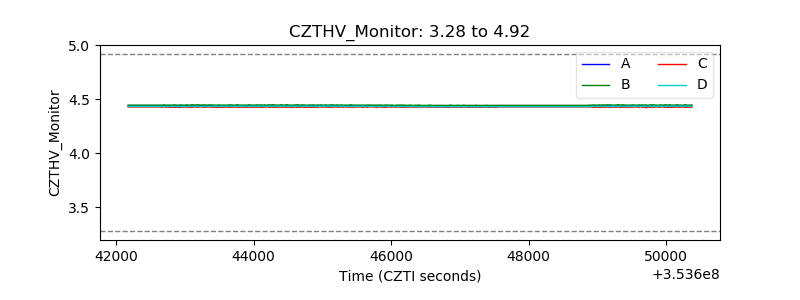

| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

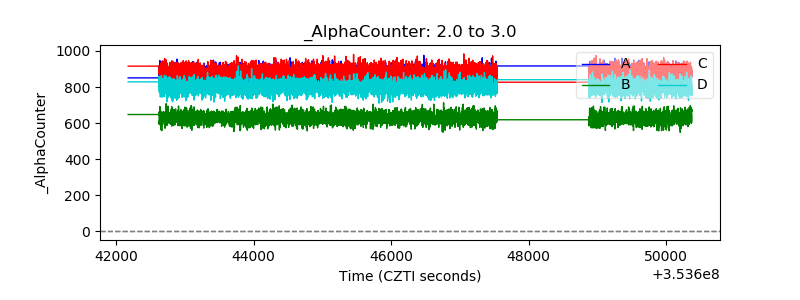

| Alpha Counter |  |
| _CPM_Rate |  |

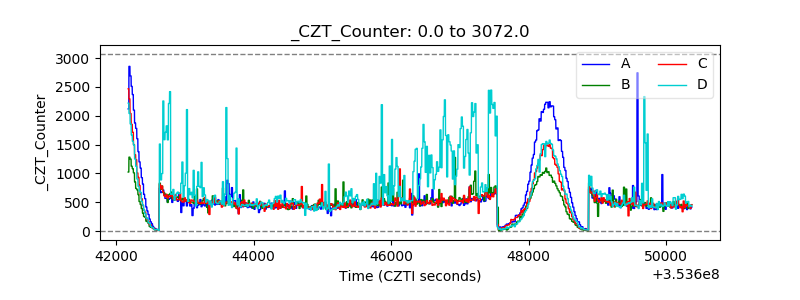

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

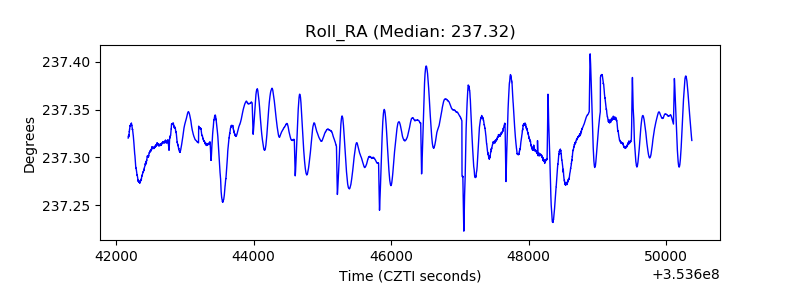

| _Roll_RA |  |
| Veto Counter |  |
