| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C05_019T01_9000004264_29572cztM0_level2.evt | modeM0/AS1C05_019T01_9000004264_29572cztM0_level2_quad_clean.evt |
| Size (bytes) | 494,343,360 | 116,654,400 |
| Size | 471.4 MB | 111.3 MB |
| Events in quadrant A | 2,986,508 | 779,452 |
| Events in quadrant B | 3,817,496 | 815,209 |
| Events in quadrant C | 3,150,968 | 784,287 |
| Events in quadrant D | 4,606,251 | 732,016 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 0 |
| B | 0 | 124 | 0 |
| C | 0 | 124 | 0 |
| D | 0 | 124 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12765 | 2 |
| B | 0 | 15320 | 2 |
| C | 0 | 13235 | 2 |
| D | 0 | 17998 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22 | 0 |
| B | 0 | 23 | 0 |
| C | 0 | 23 | 0 |
| D | 0 | 23 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6042 | 16 | 0.264813% |
| B | 6042 | 71 | 1.175108% |
| C | 6042 | 105 | 1.737835% |
| D | 6042 | 305 | 5.047997% |

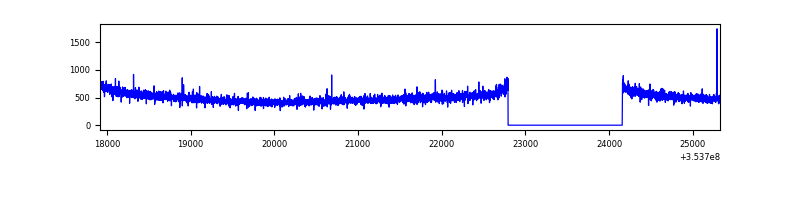

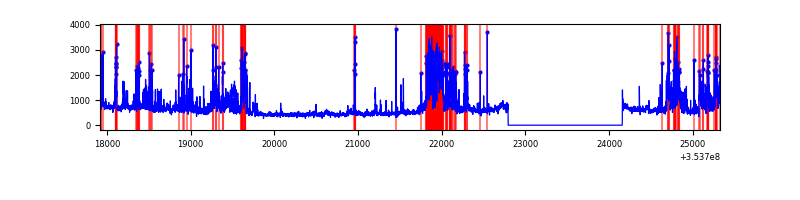

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7407 | 6043 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7407 | 6043 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7407 | 6043 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7407 | 6043 | 235 | 235 | 3.17% | 3.89% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 11642 | 71.75 | 773 | 759 | 151.7 |
| A | 3 | 137 | 7165 | 42.23 | 773 | 759 | 151.7 |
| A | 0 | 226 | 6517 | 37.96 | 773 | 759 | 151.7 |
| B | 0 | 189 | 700196 | 4836.26 | 784 | 767 | 144.6 |
| B | 0 | 190 | 41691 | 282.97 | 784 | 767 | 144.6 |
| B | 12 | 111 | 16803 | 110.88 | 784 | 767 | 144.6 |
| C | 14 | 238 | 142613 | 813.05 | 759 | 765 | 174.5 |
| C | 14 | 254 | 22006 | 121.75 | 759 | 765 | 174.5 |
| C | 2 | 114 | 13936 | 75.49 | 759 | 765 | 174.5 |
| D | 13 | 104 | 1099006 | 6370.32 | 737 | 717 | 172.4 |
| D | 8 | 195 | 270118 | 1562.58 | 737 | 717 | 172.4 |
| D | 13 | 153 | 175995 | 1016.65 | 737 | 717 | 172.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

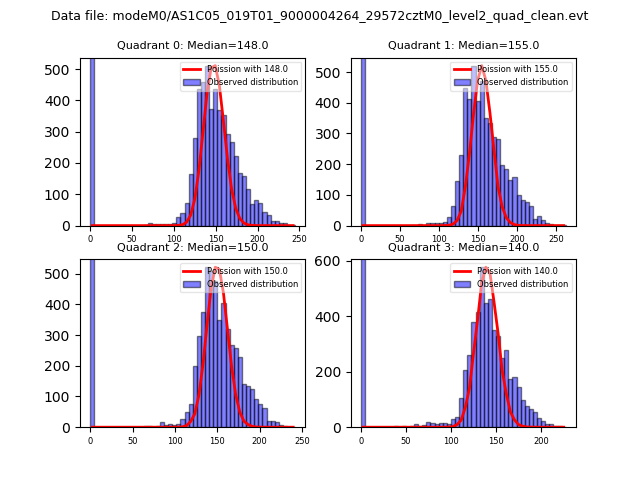

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

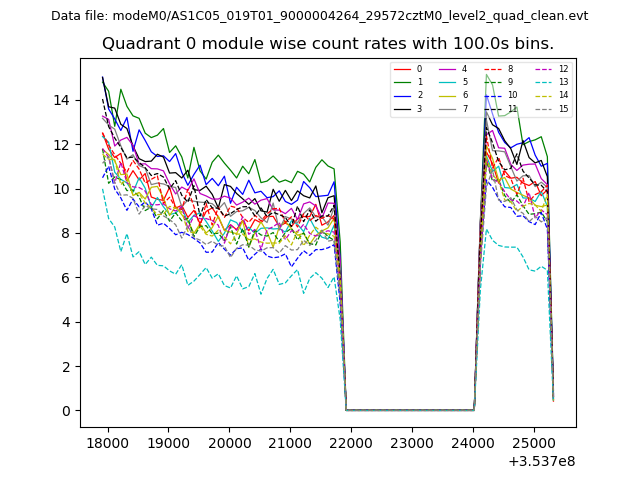

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

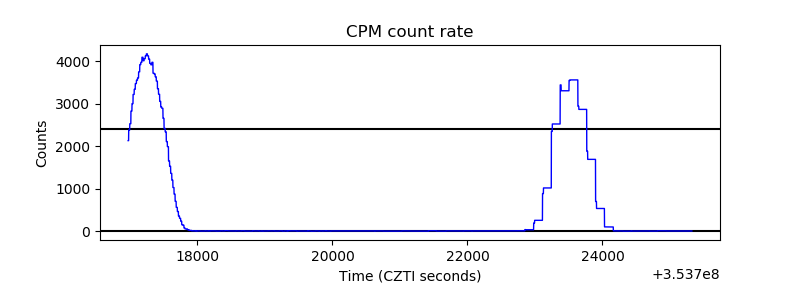

| _CPM_Rate |  |

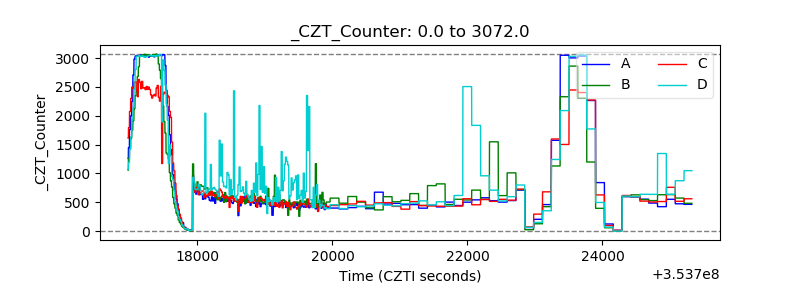

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

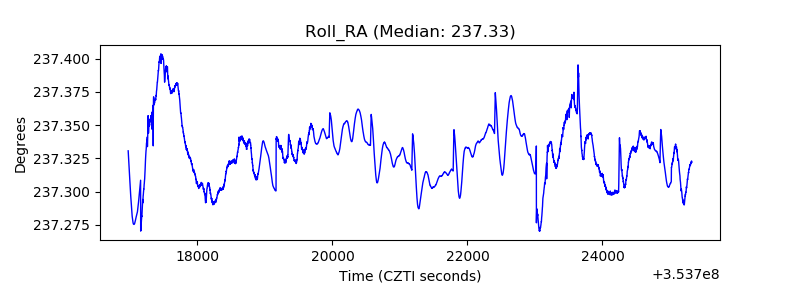

| _Roll_RA |  |

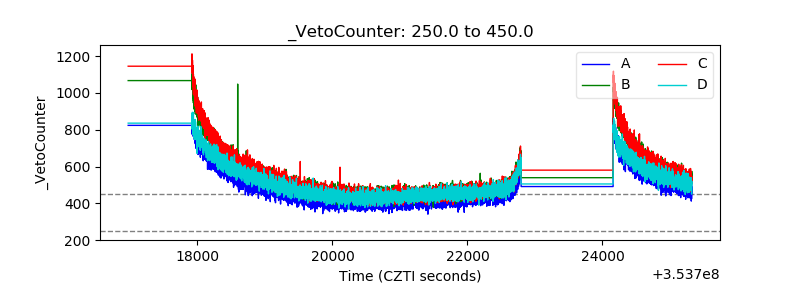

| Veto Counter |  |
