| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_093T01_9000004266_29578cztM0_level2.evt | modeM0/AS1A10_093T01_9000004266_29578cztM0_level2_quad_clean.evt |
| Size (bytes) | 630,855,360 | 106,902,720 |
| Size | 601.6 MB | 102.0 MB |
| Events in quadrant A | 3,554,951 | 716,660 |
| Events in quadrant B | 5,535,841 | 715,160 |
| Events in quadrant C | 4,042,215 | 631,728 |
| Events in quadrant D | 5,463,400 | 651,186 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 2 | 0 |
| B | 0 | 2 | 0 |
| C | 0 | 2 | 0 |
| D | 0 | 2 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15431 | 1 |
| B | 0 | 21487 | 1 |
| C | 0 | 16776 | 1 |
| D | 0 | 21101 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 152 | 0 |
| B | 0 | 152 | 0 |
| C | 0 | 152 | 0 |
| D | 0 | 152 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7510 | 144 | 1.917443% |
| B | 7510 | 310 | 4.127830% |
| C | 7510 | 1022 | 13.608522% |
| D | 7510 | 187 | 2.490013% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7715 | 7512 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7715 | 7512 | 114 | 114 | 1.48% | 1.52% |  |
| C | 7715 | 7512 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7715 | 7512 | 83 | 83 | 1.08% | 1.10% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 13157 | 65.64 | 913 | 894 | 186.8 |
| A | 13 | 254 | 13112 | 65.4 | 913 | 894 | 186.8 |
| A | 3 | 137 | 9290 | 44.94 | 913 | 894 | 186.8 |
| B | 0 | 189 | 1685119 | 9795.74 | 898 | 875 | 171.9 |
| B | 4 | 171 | 98774 | 569.39 | 898 | 875 | 171.9 |
| B | 0 | 156 | 72741 | 417.98 | 898 | 875 | 171.9 |
| C | 14 | 238 | 409194 | 2108.42 | 821 | 827 | 193.7 |
| C | 14 | 254 | 393717 | 2028.52 | 821 | 827 | 193.7 |
| C | 2 | 114 | 17070 | 83.86 | 821 | 827 | 193.7 |
| D | 12 | 33 | 1363758 | 6517.66 | 878 | 853 | 209.1 |
| D | 8 | 195 | 307436 | 1466.14 | 878 | 853 | 209.1 |
| D | 13 | 104 | 156362 | 743.67 | 878 | 853 | 209.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

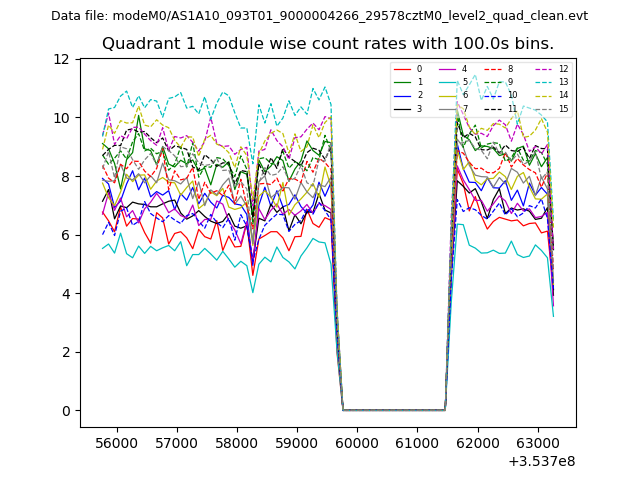

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

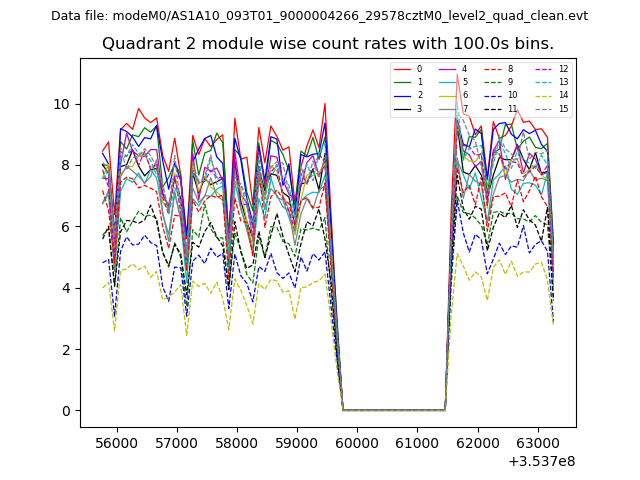

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

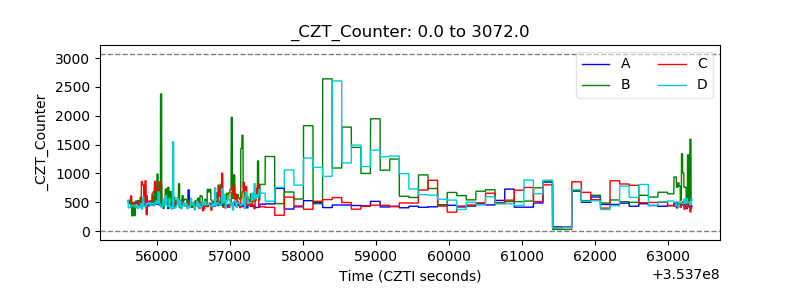

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

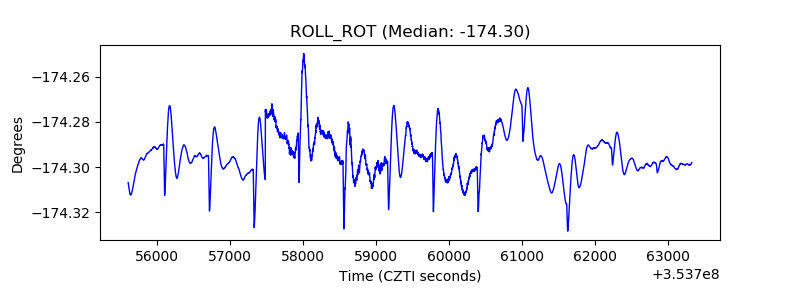

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

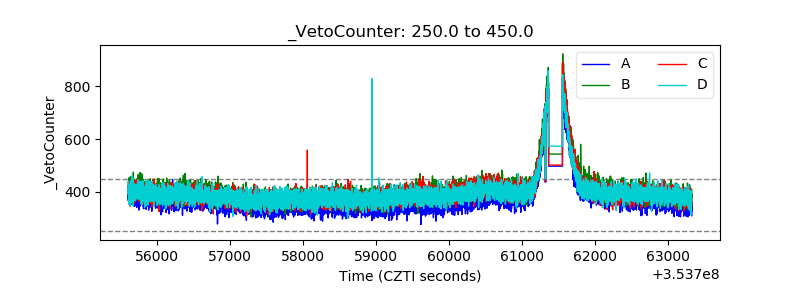

| Veto Counter |  |
