| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_093T01_9000004266_29588cztM0_level2.evt | modeM0/AS1A10_093T01_9000004266_29588cztM0_level2_quad_clean.evt |
| Size (bytes) | 574,104,960 | 71,809,920 |
| Size | 547.5 MB | 68.5 MB |
| Events in quadrant A | 3,366,771 | 461,128 |
| Events in quadrant B | 4,084,593 | 472,687 |
| Events in quadrant C | 3,443,504 | 388,784 |
| Events in quadrant D | 6,049,836 | 396,430 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19 | 0 |
| B | 0 | 20 | 0 |
| C | 0 | 20 | 0 |
| D | 0 | 20 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13844 | 2 |
| B | 0 | 16296 | 2 |
| C | 0 | 14126 | 2 |
| D | 0 | 22440 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6524 | 83 | 1.272226% |
| B | 6523 | 213 | 3.265369% |
| C | 6523 | 525 | 8.048444% |
| D | 6523 | 704 | 10.792580% |

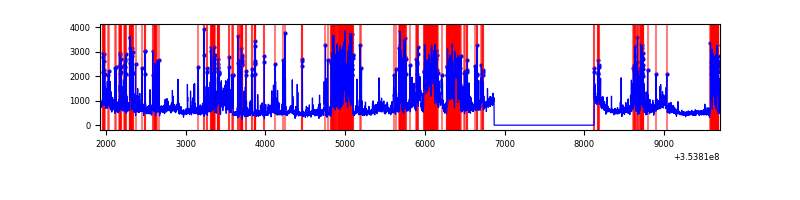

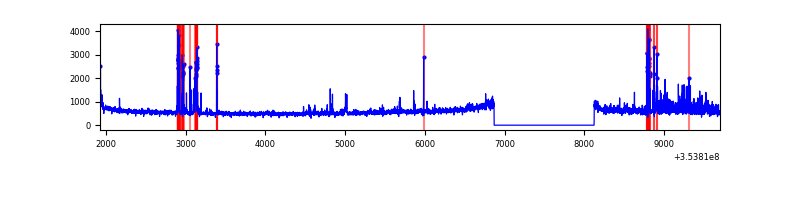

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7779 | 6524 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7778 | 6524 | 69 | 69 | 0.89% | 1.06% |  |
| C | 7778 | 6523 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7778 | 6524 | 553 | 553 | 7.11% | 8.48% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 13 | 31075 | 178.06 | 862 | 846 | 169.8 |
| A | 13 | 254 | 12792 | 70.37 | 862 | 846 | 169.8 |
| A | 12 | 189 | 9016 | 48.12 | 862 | 846 | 169.8 |
| B | 0 | 189 | 408444 | 2556.03 | 858 | 838 | 159.5 |
| B | 15 | 33 | 257288 | 1608.15 | 858 | 838 | 159.5 |
| B | 0 | 230 | 24680 | 149.51 | 858 | 838 | 159.5 |
| C | 14 | 238 | 231767 | 1303.35 | 771 | 778 | 177.2 |
| C | 14 | 254 | 153926 | 864.14 | 771 | 778 | 177.2 |
| C | 3 | 233 | 18916 | 102.34 | 771 | 778 | 177.2 |
| D | 7 | 80 | 1229102 | 6546.42 | 796 | 775 | 187.6 |
| D | 13 | 153 | 444505 | 2364.88 | 796 | 775 | 187.6 |
| D | 12 | 33 | 409960 | 2180.77 | 796 | 775 | 187.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

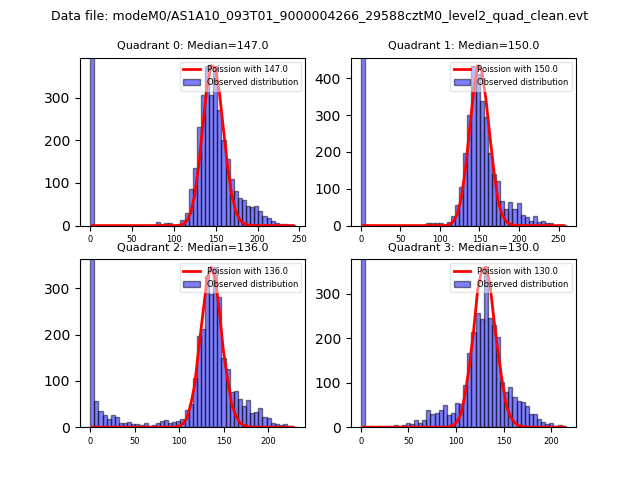

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

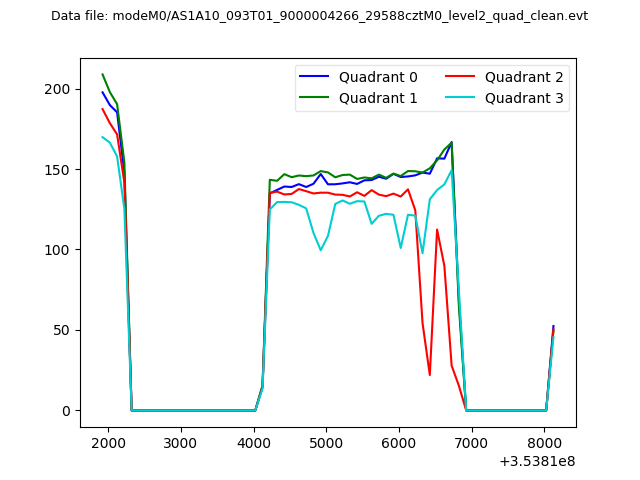

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

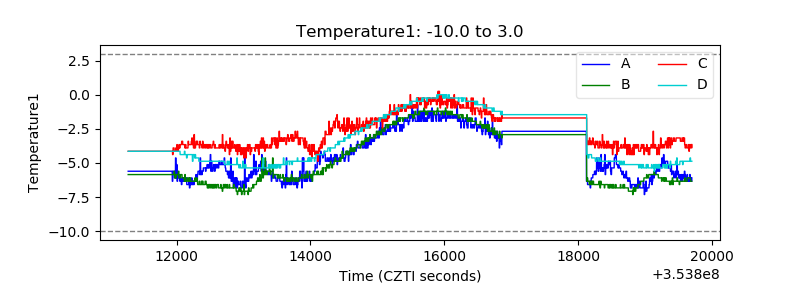

| Temperature 1 |  |

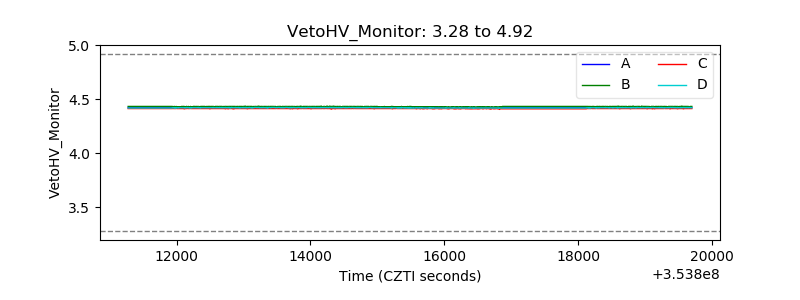

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

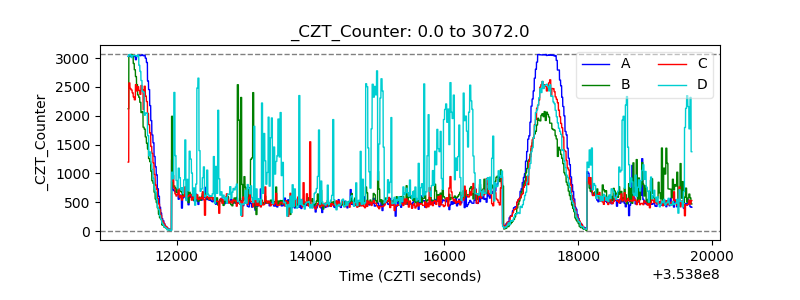

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

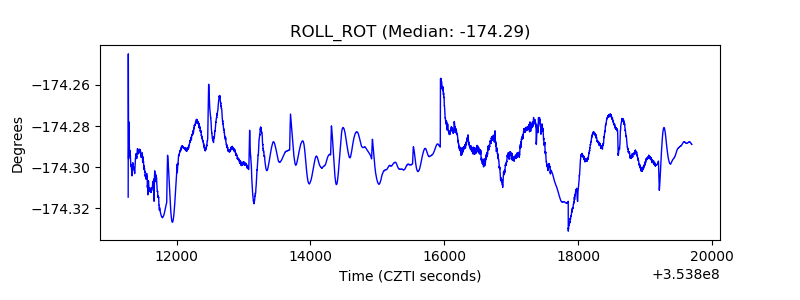

| _ROLL_ROT |  |
