| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_286T01_9000004268_29596cztM0_level2.evt | modeM0/AS1T03_286T01_9000004268_29596cztM0_level2_quad_clean.evt |
| Size (bytes) | 455,567,040 | 105,736,320 |
| Size | 434.5 MB | 100.8 MB |
| Events in quadrant A | 2,962,849 | 709,841 |
| Events in quadrant B | 3,053,917 | 723,247 |
| Events in quadrant C | 3,345,307 | 654,448 |
| Events in quadrant D | 4,001,205 | 669,790 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9 | 0 |
| B | 0 | 9 | 0 |
| C | 0 | 9 | 0 |
| D | 0 | 9 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13058 | 1 |
| B | 0 | 13272 | 1 |
| C | 0 | 13961 | 2 |
| D | 0 | 16381 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6372 | 36 | 0.564972% |
| B | 6373 | 46 | 0.721795% |
| C | 6372 | 652 | 10.232266% |
| D | 6372 | 186 | 2.919021% |

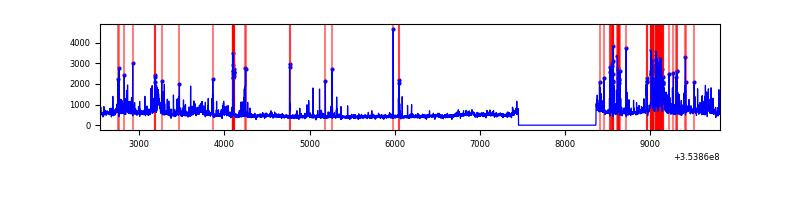

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7282 | 6372 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7283 | 6373 | 4 | 4 | 0.05% | 0.06% |  |
| C | 7282 | 6372 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7282 | 6373 | 114 | 114 | 1.57% | 1.79% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 11692 | 70.71 | 766 | 749 | 154.8 |
| A | 3 | 137 | 7651 | 44.6 | 766 | 749 | 154.8 |
| A | 0 | 226 | 6427 | 36.69 | 766 | 749 | 154.8 |
| B | 0 | 190 | 35204 | 236.95 | 764 | 743 | 145.4 |
| B | 12 | 111 | 17864 | 117.72 | 764 | 743 | 145.4 |
| B | 11 | 111 | 16100 | 105.59 | 764 | 743 | 145.4 |
| C | 14 | 238 | 284545 | 1713.71 | 709 | 713 | 165.6 |
| C | 14 | 254 | 242992 | 1462.82 | 709 | 713 | 165.6 |
| C | 3 | 233 | 31628 | 186.66 | 709 | 713 | 165.6 |
| D | 8 | 195 | 339327 | 1948.53 | 740 | 721 | 173.8 |
| D | 7 | 80 | 328017 | 1883.45 | 740 | 721 | 173.8 |
| D | 13 | 153 | 311397 | 1787.81 | 740 | 721 | 173.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

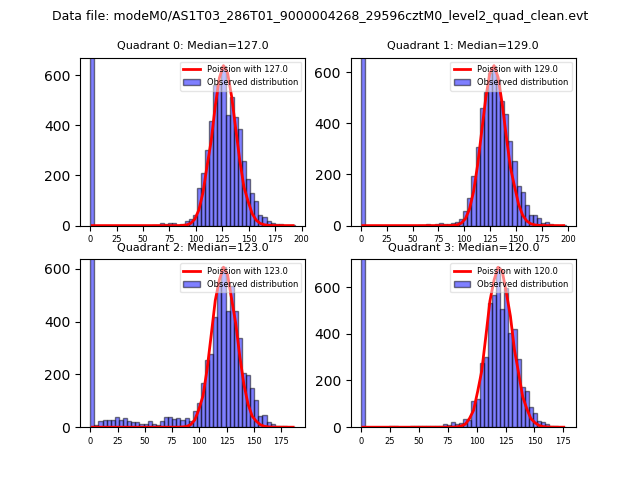

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

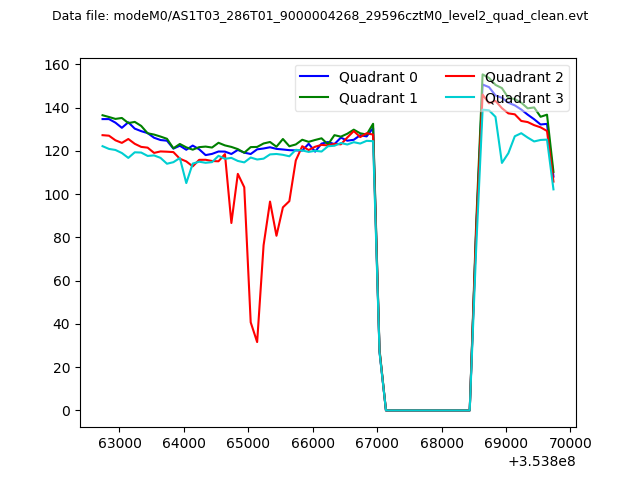

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

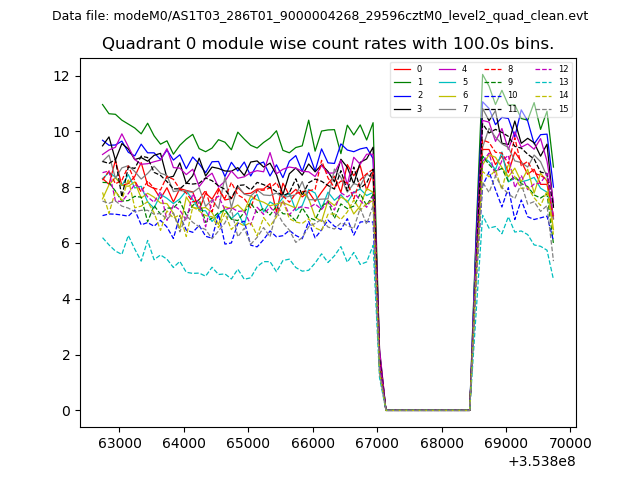

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

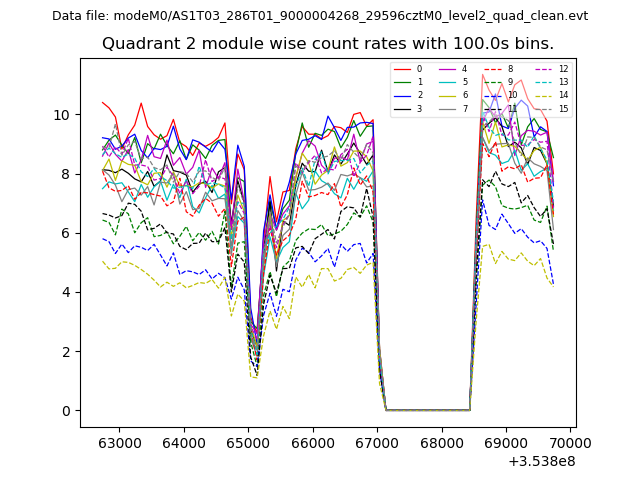

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

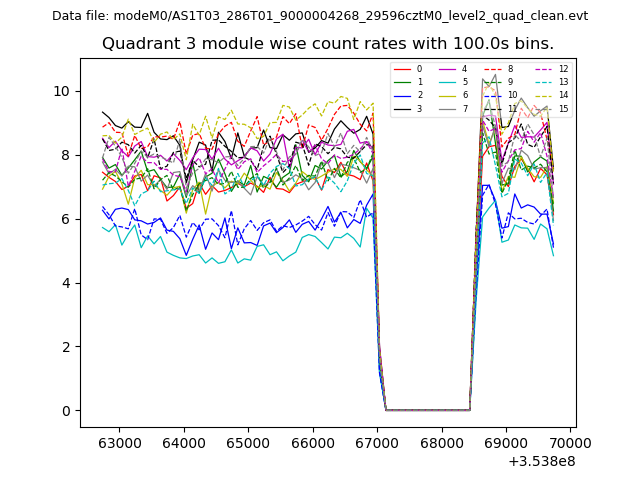

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

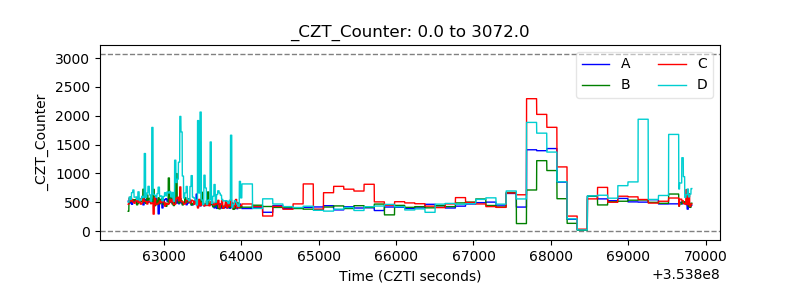

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

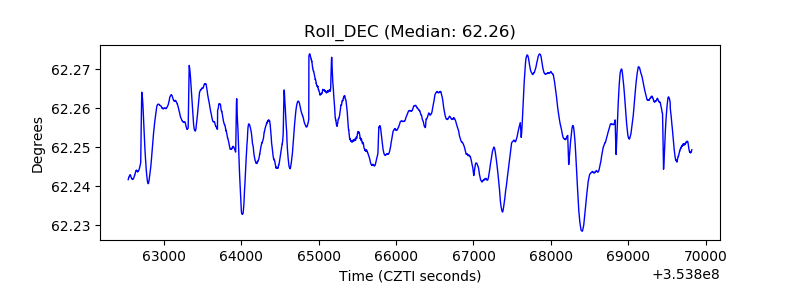

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
