| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_286T01_9000004268_29602cztM0_level2.evt | modeM0/AS1T03_286T01_9000004268_29602cztM0_level2_quad_clean.evt |
| Size (bytes) | 455,325,120 | 107,671,680 |
| Size | 434.2 MB | 102.7 MB |
| Events in quadrant A | 3,052,770 | 709,410 |
| Events in quadrant B | 3,167,043 | 745,126 |
| Events in quadrant C | 3,190,601 | 706,561 |
| Events in quadrant D | 3,956,128 | 665,181 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 25 | 0 |
| B | 0 | 26 | 0 |
| C | 0 | 26 | 0 |
| D | 0 | 26 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13007 | 2 |
| B | 0 | 13177 | 2 |
| C | 0 | 13324 | 2 |
| D | 0 | 15833 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6223 | 34 | 0.546360% |
| B | 6223 | 55 | 0.883818% |
| C | 6223 | 109 | 1.751567% |
| D | 6223 | 116 | 1.864053% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

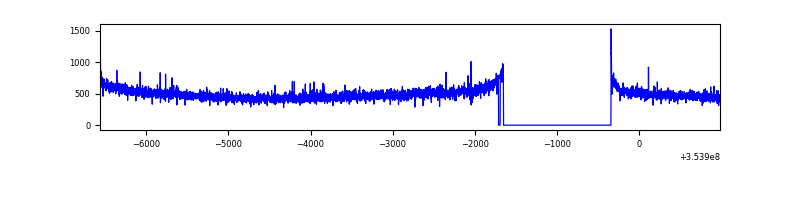

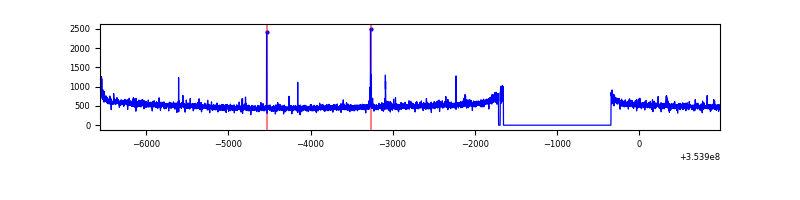

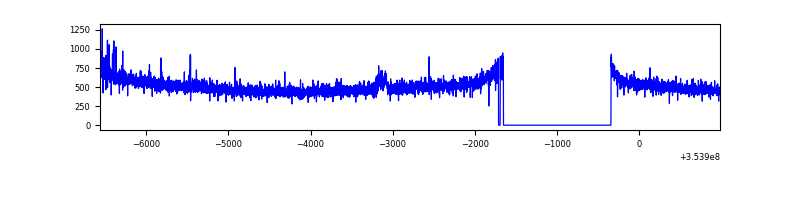

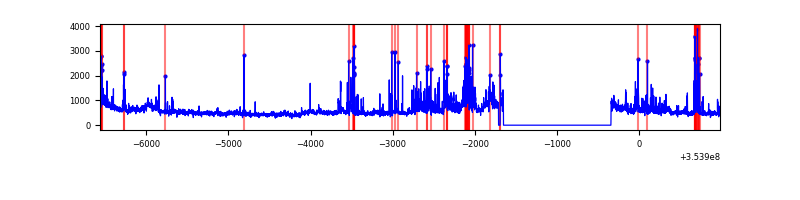

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7553 | 6225 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7553 | 6224 | 2 | 2 | 0.03% | 0.03% |  |
| C | 7553 | 6225 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7553 | 6225 | 67 | 67 | 0.89% | 1.08% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 10207 | 60.57 | 787 | 772 | 155.8 |
| A | 12 | 96 | 9928 | 58.78 | 787 | 772 | 155.8 |
| A | 3 | 137 | 7283 | 41.8 | 787 | 772 | 155.8 |
| B | 0 | 230 | 24755 | 162.51 | 799 | 781 | 147.5 |
| B | 12 | 111 | 17422 | 112.8 | 799 | 781 | 147.5 |
| B | 11 | 111 | 15717 | 101.24 | 799 | 781 | 147.5 |
| C | 14 | 238 | 133225 | 746.28 | 768 | 775 | 177.5 |
| C | 3 | 233 | 39355 | 217.38 | 768 | 775 | 177.5 |
| C | 2 | 114 | 14177 | 75.51 | 768 | 775 | 177.5 |
| D | 8 | 195 | 448901 | 2535.07 | 753 | 733 | 176.8 |
| D | 7 | 80 | 299813 | 1691.75 | 753 | 733 | 176.8 |
| D | 7 | 238 | 157258 | 885.39 | 753 | 733 | 176.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

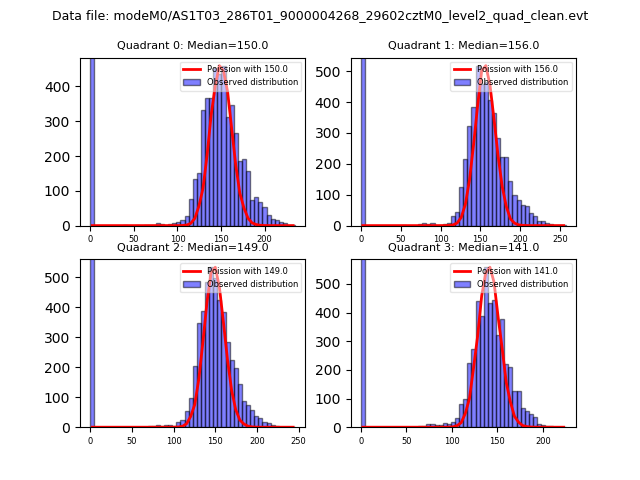

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

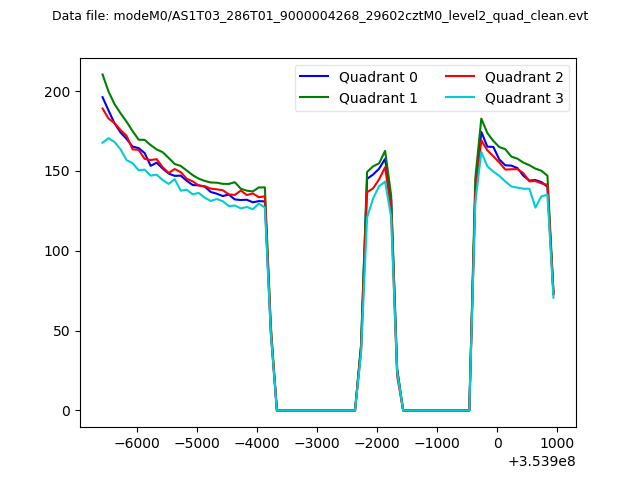

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

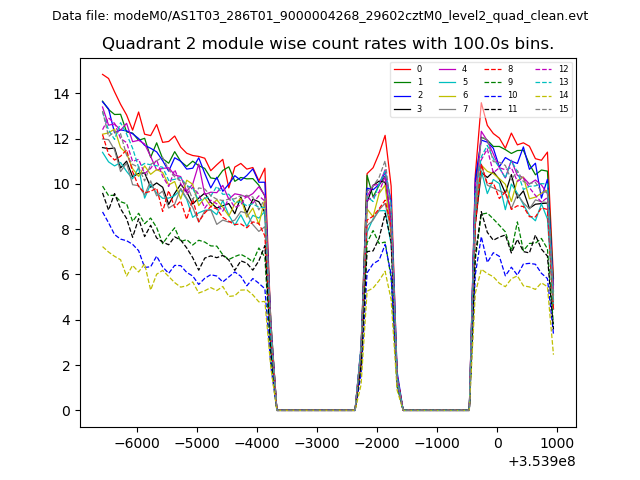

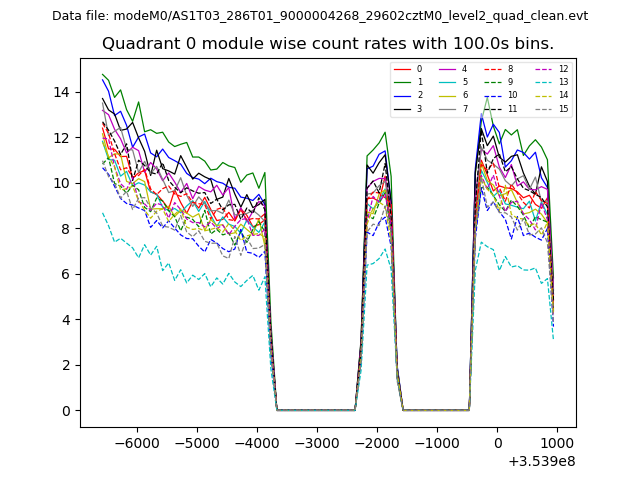

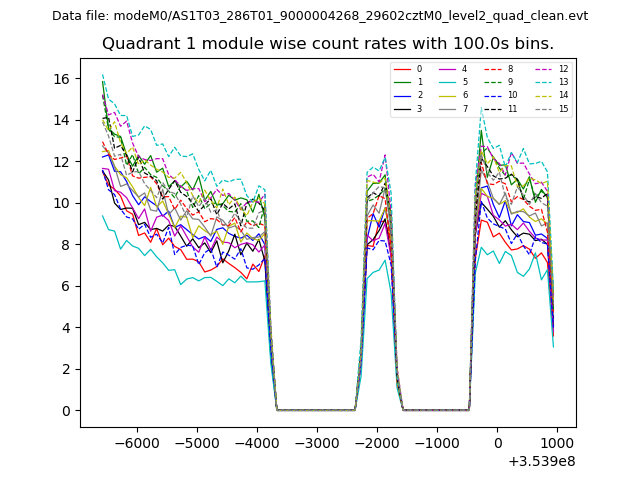

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

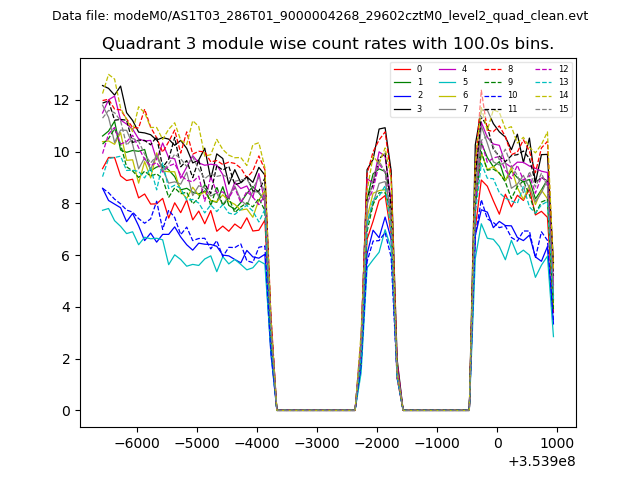

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

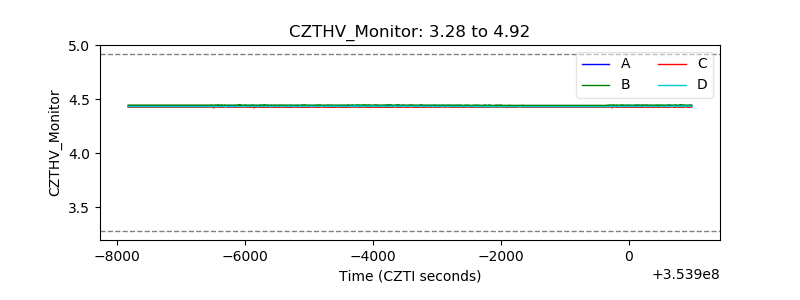

| CZT HV Monitor |  |

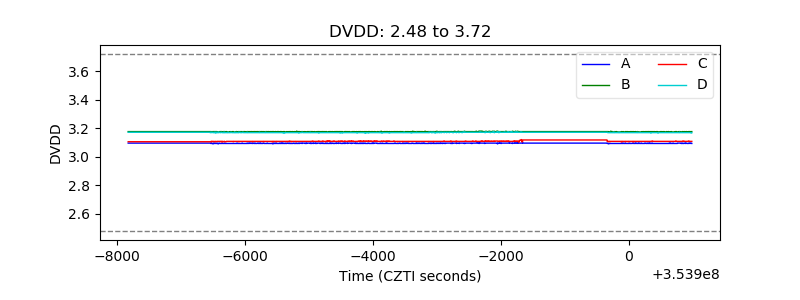

| D_VDD |  |

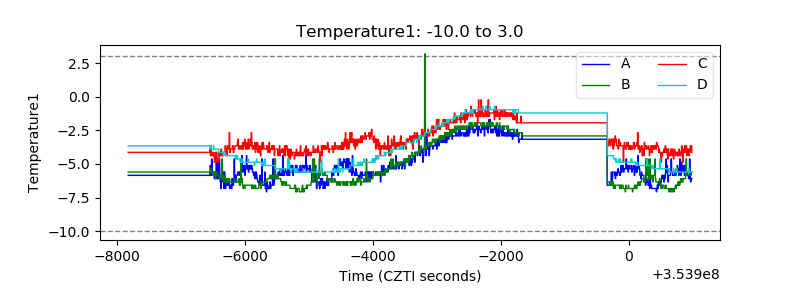

| Temperature 1 |  |

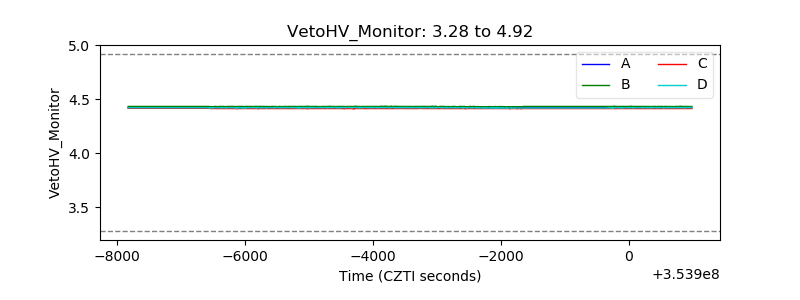

| Veto HV Monitor |  |

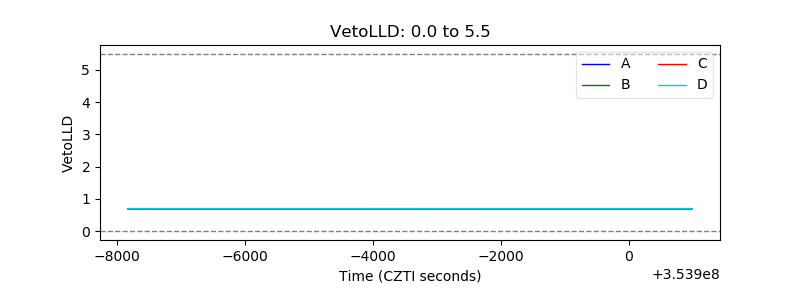

| Veto LLD |  |

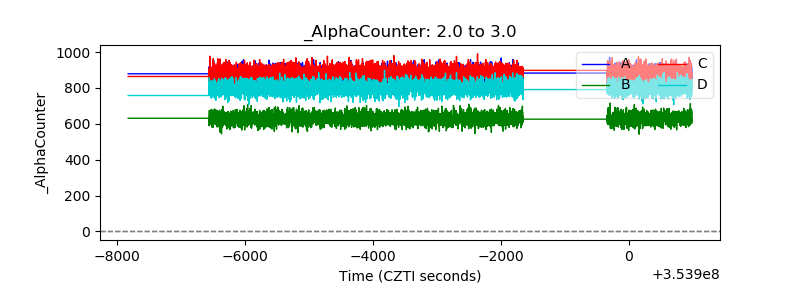

| Alpha Counter |  |

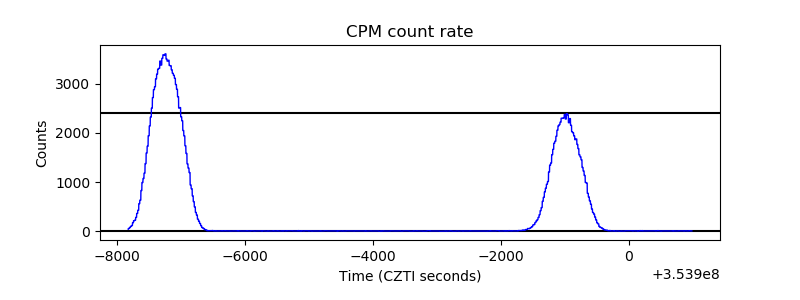

| _CPM_Rate |  |

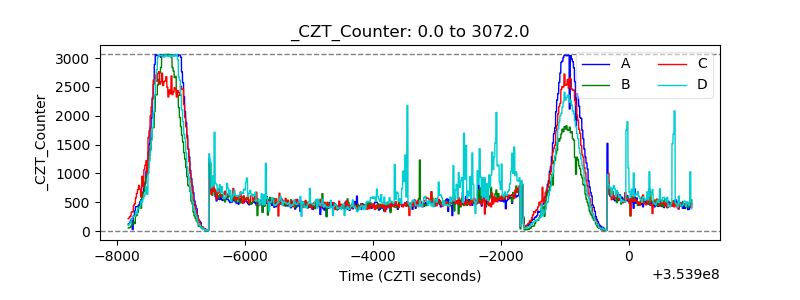

| CZT Counter |  |

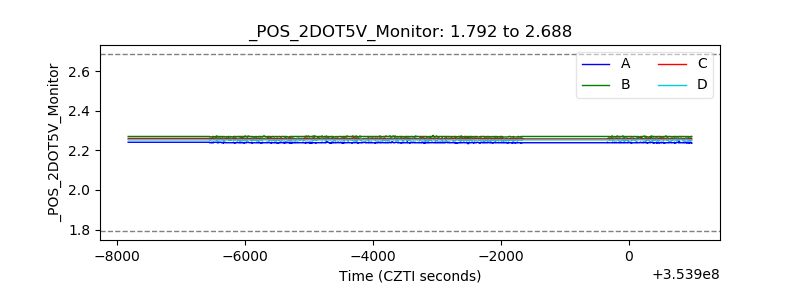

| +2.5 Volts monitor |  |

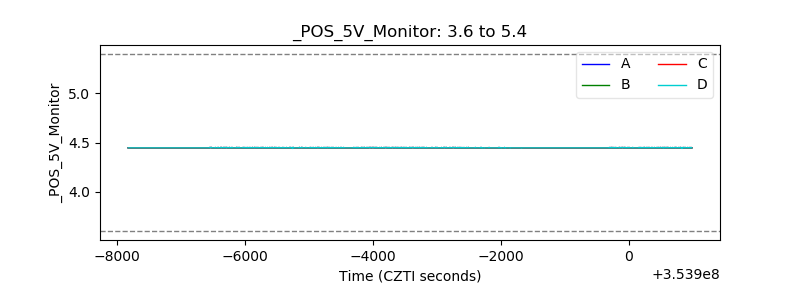

| +5 Volts monitor |  |

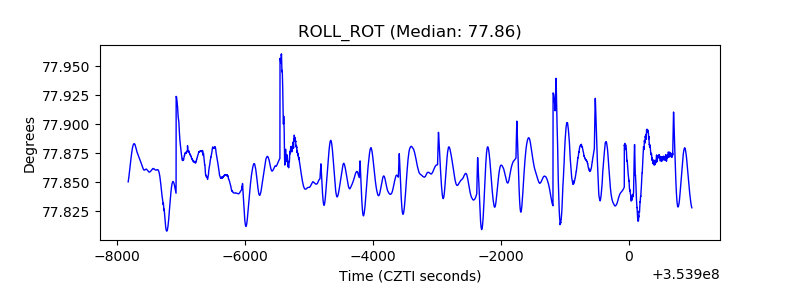

| _ROLL_ROT |  |

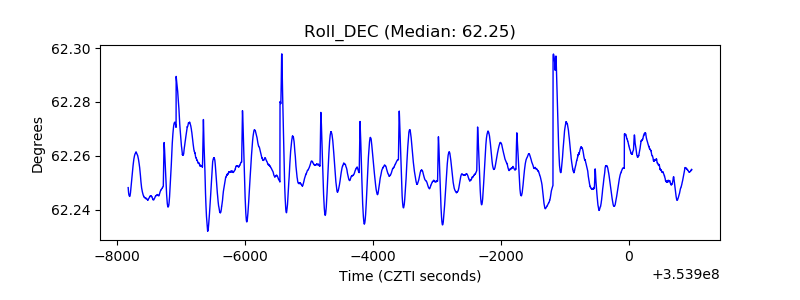

| _Roll_DEC |  |

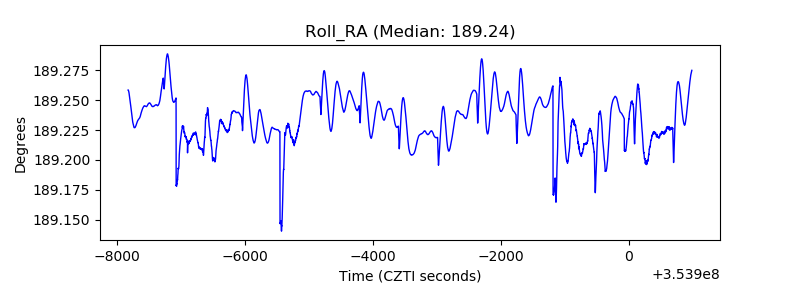

| _Roll_RA |  |

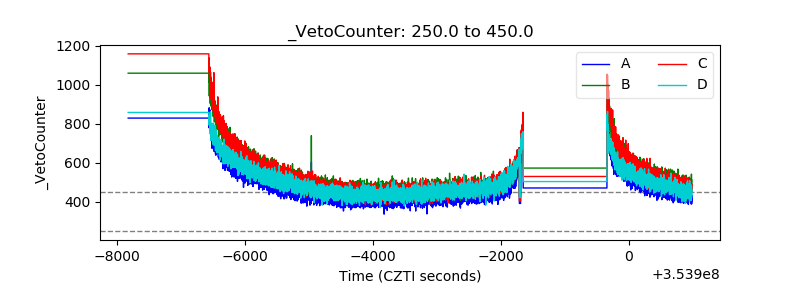

| Veto Counter |  |
