| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_286T01_9000004268_29609cztM0_level2.evt | modeM0/AS1T03_286T01_9000004268_29609cztM0_level2_quad_clean.evt |
| Size (bytes) | 567,699,840 | 91,540,800 |
| Size | 541.4 MB | 87.3 MB |
| Events in quadrant A | 3,536,914 | 570,646 |
| Events in quadrant B | 3,596,828 | 581,733 |
| Events in quadrant C | 3,772,858 | 555,191 |
| Events in quadrant D | 5,768,821 | 534,140 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 7 | 0 |
| B | 0 | 8 | 0 |
| C | 0 | 8 | 0 |
| D | 0 | 8 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 154 | 0 |
| B | 0 | 154 | 0 |
| C | 0 | 154 | 0 |
| D | 0 | 154 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15563 | 2 |
| B | 0 | 15611 | 2 |
| C | 0 | 16183 | 2 |
| D | 0 | 22108 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7632 | 102 | 1.336478% |
| B | 7632 | 119 | 1.559224% |
| C | 7632 | 305 | 3.996331% |
| D | 7632 | 427 | 5.594864% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8082 | 7632 | 1 | 1 | 0.01% | 0.01% |  |
| B | 8082 | 7632 | 0 | 0 | 0.00% | 0.00% |  |
| C | 8082 | 7632 | 3 | 3 | 0.04% | 0.04% |  |
| D | 8082 | 7632 | 342 | 342 | 4.23% | 4.48% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 96 | 19748 | 102.1 | 910 | 890 | 184.7 |
| A | 13 | 254 | 13189 | 66.59 | 910 | 890 | 184.7 |
| A | 3 | 137 | 9478 | 46.5 | 910 | 890 | 184.7 |
| B | 0 | 190 | 37295 | 207.02 | 902 | 876 | 175.9 |
| B | 12 | 111 | 22515 | 123.01 | 902 | 876 | 175.9 |
| B | 11 | 111 | 20132 | 109.46 | 902 | 876 | 175.9 |
| C | 14 | 238 | 197352 | 970.16 | 863 | 866 | 202.5 |
| C | 10 | 22 | 107231 | 525.18 | 863 | 866 | 202.5 |
| C | 14 | 254 | 79789 | 389.69 | 863 | 866 | 202.5 |
| D | 7 | 80 | 1342790 | 6599.23 | 862 | 835 | 203.4 |
| D | 8 | 195 | 513057 | 2518.91 | 862 | 835 | 203.4 |
| D | 7 | 238 | 375454 | 1842.23 | 862 | 835 | 203.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

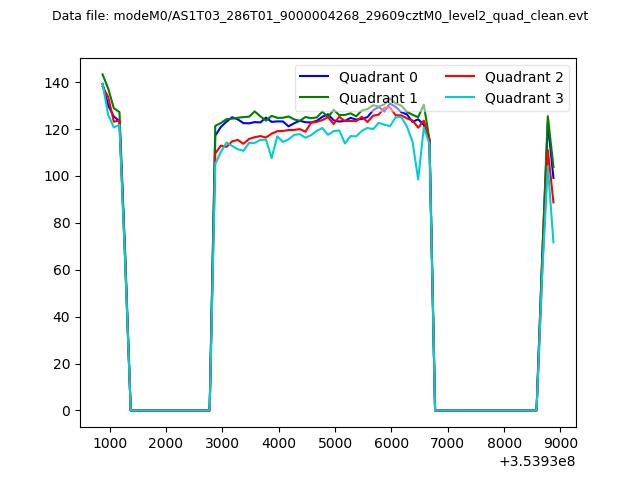

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

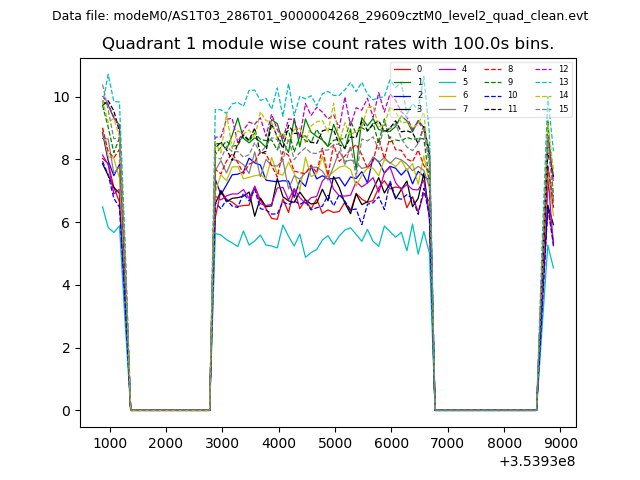

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

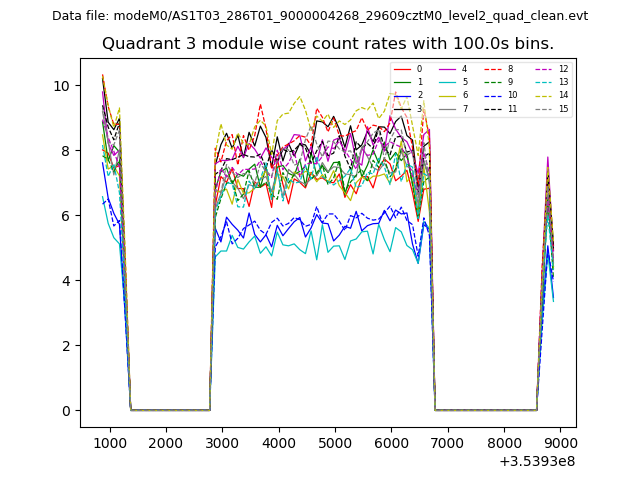

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

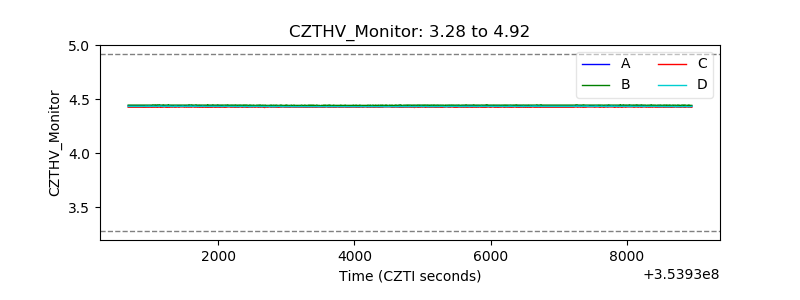

| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

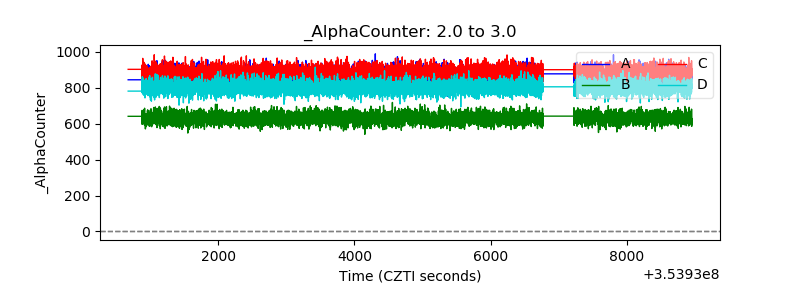

| Alpha Counter |  |

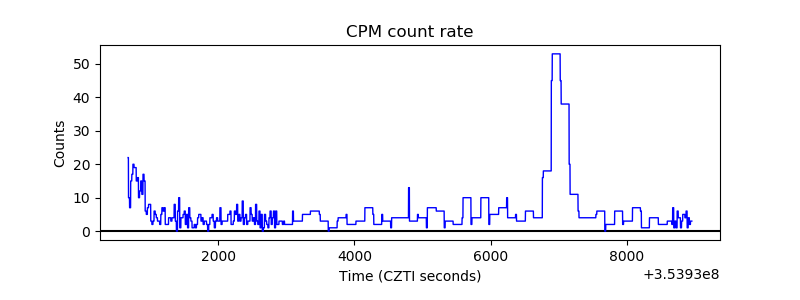

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

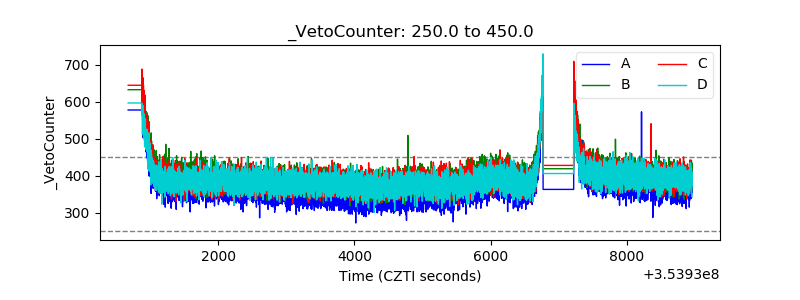

| Veto Counter |  |
