| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_286T01_9000004268_29614cztM0_level2.evt | modeM0/AS1T03_286T01_9000004268_29614cztM0_level2_quad_clean.evt |
| Size (bytes) | 498,453,120 | 118,984,320 |
| Size | 475.4 MB | 113.5 MB |
| Events in quadrant A | 3,182,770 | 789,698 |
| Events in quadrant B | 3,321,761 | 823,717 |
| Events in quadrant C | 3,383,652 | 796,621 |
| Events in quadrant D | 4,770,777 | 744,922 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18 | 0 |
| B | 0 | 19 | 0 |
| C | 0 | 19 | 0 |
| D | 0 | 19 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13821 | 2 |
| B | 0 | 14161 | 2 |
| C | 0 | 14323 | 2 |
| D | 0 | 18588 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6435 | 30 | 0.466200% |
| B | 6435 | 54 | 0.839161% |
| C | 6435 | 151 | 2.346542% |
| D | 6435 | 394 | 6.122766% |

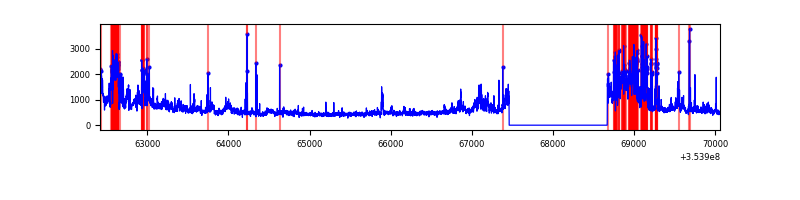

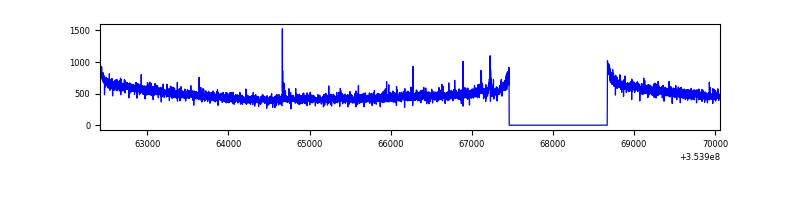

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7645 | 6436 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7645 | 6436 | 1 | 1 | 0.01% | 0.02% |  |
| C | 7645 | 6435 | 1 | 1 | 0.01% | 0.02% |  |
| D | 7645 | 6435 | 205 | 205 | 2.68% | 3.19% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 20494 | 121.6 | 816 | 800 | 162.0 |
| A | 0 | 13 | 13659 | 79.4 | 816 | 800 | 162.0 |
| A | 13 | 254 | 11494 | 66.03 | 816 | 800 | 162.0 |
| B | 0 | 229 | 27579 | 174.95 | 827 | 805 | 153.0 |
| B | 0 | 230 | 22369 | 140.9 | 827 | 805 | 153.0 |
| B | 0 | 190 | 22036 | 138.73 | 827 | 805 | 153.0 |
| C | 14 | 238 | 148229 | 790.39 | 809 | 817 | 186.5 |
| C | 10 | 22 | 38701 | 203.13 | 809 | 817 | 186.5 |
| C | 14 | 254 | 21295 | 109.8 | 809 | 817 | 186.5 |
| D | 12 | 227 | 992862 | 5297.61 | 792 | 771 | 187.3 |
| D | 8 | 195 | 297537 | 1584.68 | 792 | 771 | 187.3 |
| D | 7 | 80 | 212096 | 1128.44 | 792 | 771 | 187.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

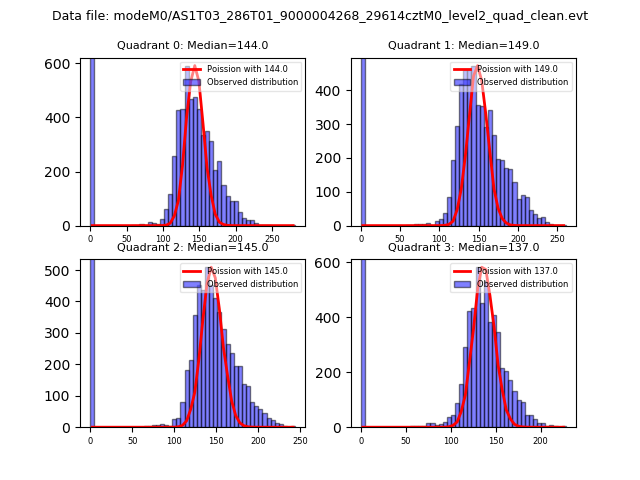

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

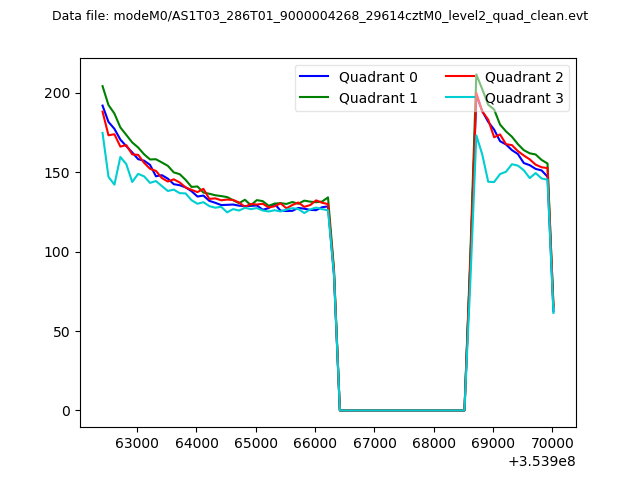

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

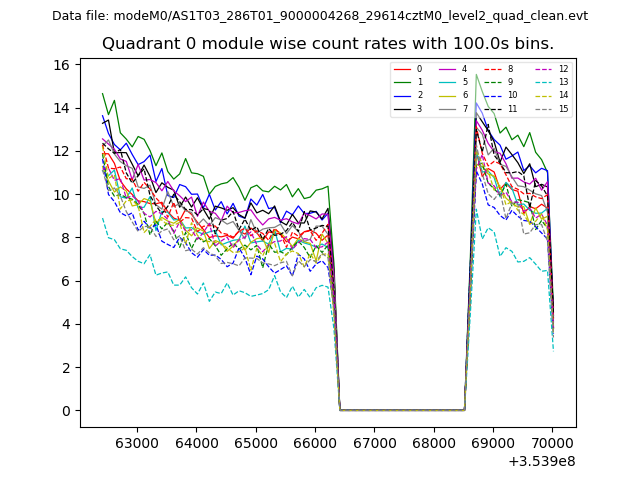

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

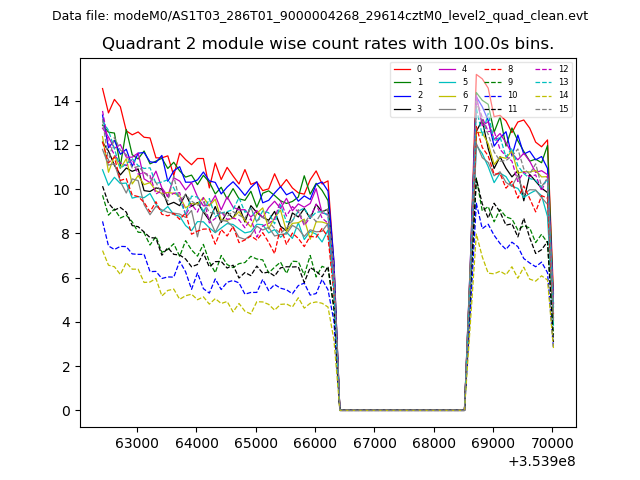

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

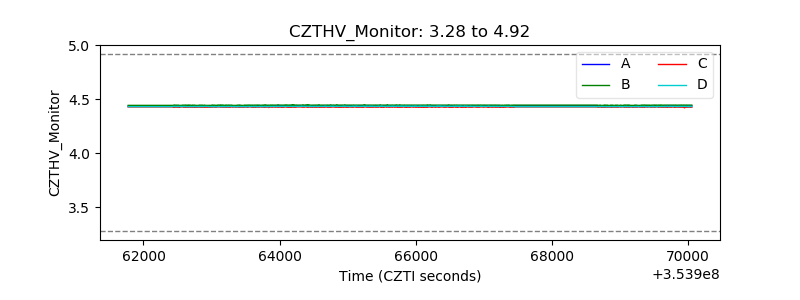

| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

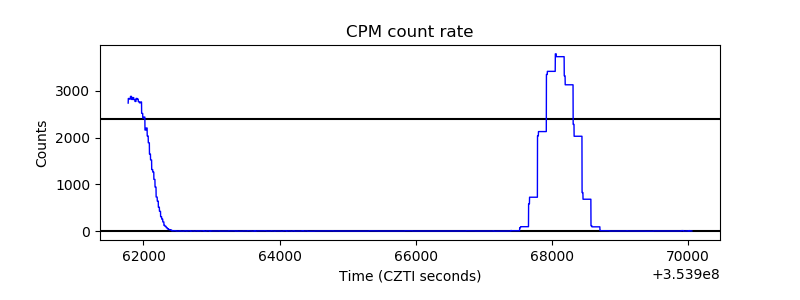

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
