| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_286T01_9000004268_29621cztM0_level2.evt | modeM0/AS1T03_286T01_9000004268_29621cztM0_level2_quad_clean.evt |
| Size (bytes) | 510,848,640 | 99,593,280 |
| Size | 487.2 MB | 95.0 MB |
| Events in quadrant A | 3,382,258 | 632,289 |
| Events in quadrant B | 3,482,985 | 648,082 |
| Events in quadrant C | 3,562,486 | 619,015 |
| Events in quadrant D | 4,534,694 | 595,929 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 1 | 0 |
| B | 0 | 1 | 0 |
| C | 0 | 1 | 0 |
| D | 0 | 1 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 152 | 0 |
| B | 0 | 152 | 0 |
| C | 0 | 152 | 0 |
| D | 0 | 152 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15238 | 1 |
| B | 0 | 15334 | 1 |
| C | 0 | 15571 | 1 |
| D | 0 | 18531 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7479 | 175 | 2.339885% |
| B | 7479 | 217 | 2.901457% |
| C | 7479 | 302 | 4.037973% |
| D | 7480 | 278 | 3.716578% |

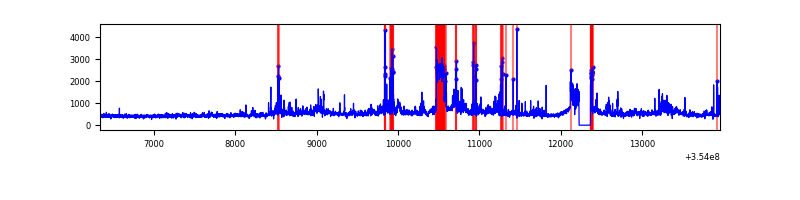

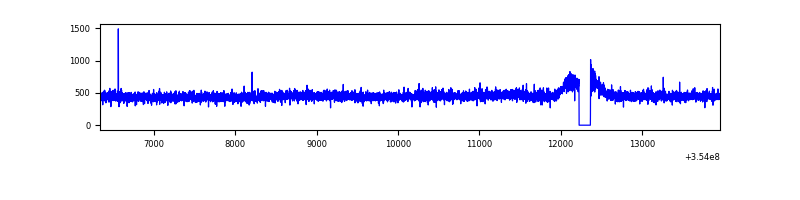

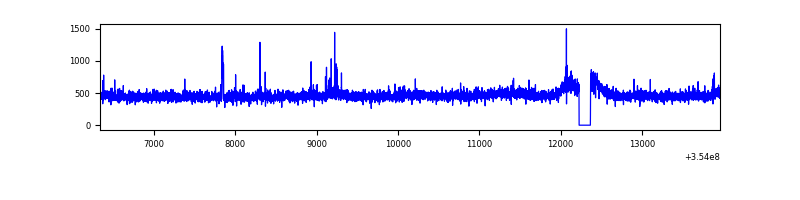

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7619 | 7479 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7619 | 7479 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7619 | 7480 | 1 | 1 | 0.01% | 0.01% |  |
| D | 7620 | 7480 | 142 | 142 | 1.86% | 1.90% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 12155 | 63.4 | 875 | 854 | 178.2 |
| A | 3 | 137 | 9173 | 46.67 | 875 | 854 | 178.2 |
| A | 0 | 226 | 7253 | 35.9 | 875 | 854 | 178.2 |
| B | 0 | 190 | 24926 | 143.36 | 873 | 849 | 167.9 |
| B | 12 | 111 | 21361 | 122.14 | 873 | 849 | 167.9 |
| B | 11 | 111 | 19708 | 112.29 | 873 | 849 | 167.9 |
| C | 14 | 238 | 169559 | 861.17 | 839 | 842 | 195.9 |
| C | 14 | 254 | 51029 | 256.17 | 839 | 842 | 195.9 |
| C | 10 | 22 | 37629 | 187.77 | 839 | 842 | 195.9 |
| D | 7 | 238 | 670168 | 3321.7 | 834 | 808 | 201.5 |
| D | 8 | 195 | 294594 | 1457.91 | 834 | 808 | 201.5 |
| D | 12 | 227 | 137950 | 680.57 | 834 | 808 | 201.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

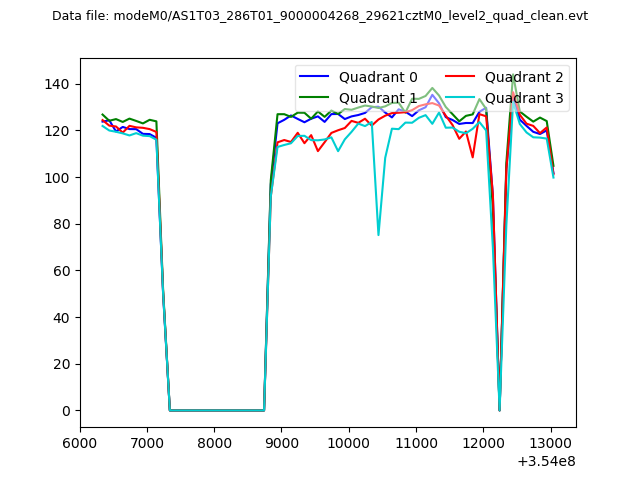

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

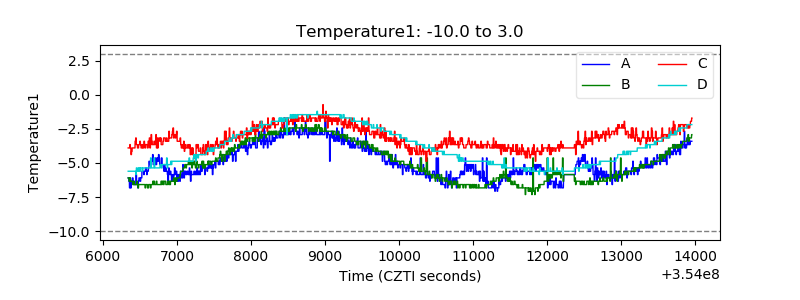

| Temperature 1 |  |

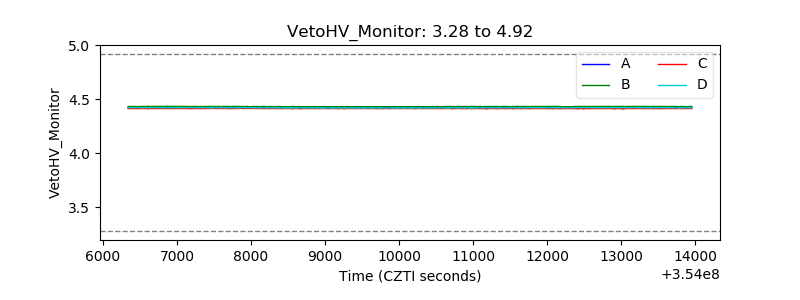

| Veto HV Monitor |  |
| Veto LLD |  |

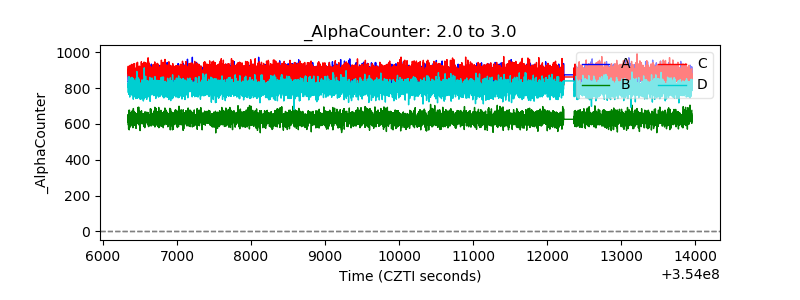

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

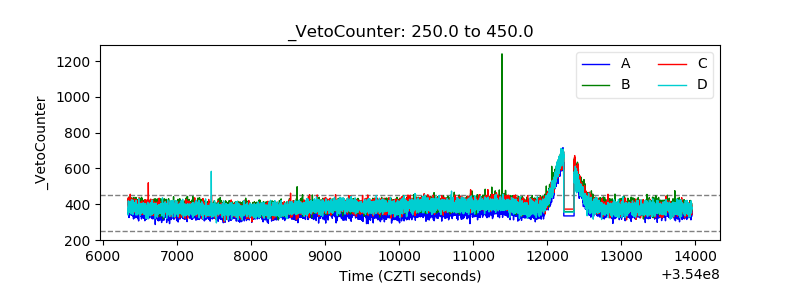

| Veto Counter |  |
