| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_286T01_9000004268_29627cztM0_level2.evt | modeM0/AS1T03_286T01_9000004268_29627cztM0_level2_quad_clean.evt |
| Size (bytes) | 507,159,360 | 108,336,960 |
| Size | 483.7 MB | 103.3 MB |
| Events in quadrant A | 2,826,499 | 728,520 |
| Events in quadrant B | 2,920,448 | 750,110 |
| Events in quadrant C | 3,081,547 | 719,656 |
| Events in quadrant D | 6,122,098 | 661,764 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 122 | 0 |
| B | 0 | 122 | 0 |
| C | 0 | 122 | 0 |
| D | 0 | 122 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12559 | 1 |
| B | 0 | 12783 | 1 |
| C | 0 | 13170 | 1 |
| D | 0 | 22407 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6027 | 42 | 0.696864% |
| B | 6027 | 68 | 1.128256% |
| C | 6027 | 179 | 2.969968% |
| D | 6027 | 660 | 10.950722% |

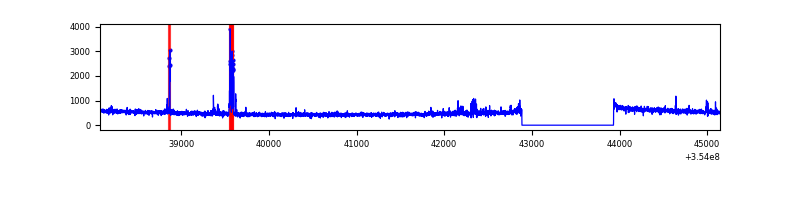

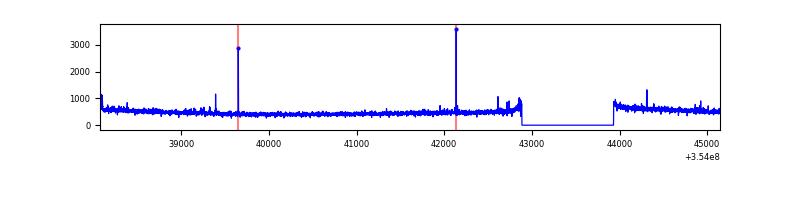

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7073 | 6028 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7073 | 6027 | 2 | 2 | 0.03% | 0.03% |  |
| C | 7073 | 6027 | 19 | 19 | 0.27% | 0.32% |  |
| D | 7073 | 6027 | 540 | 540 | 7.63% | 8.96% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 9815 | 61.66 | 732 | 716 | 147.6 |
| A | 3 | 137 | 7143 | 43.55 | 732 | 716 | 147.6 |
| A | 0 | 226 | 6058 | 36.2 | 732 | 716 | 147.6 |
| B | 0 | 229 | 22338 | 156.38 | 730 | 711 | 138.3 |
| B | 0 | 190 | 18274 | 127.0 | 730 | 711 | 138.3 |
| B | 12 | 111 | 16930 | 117.28 | 730 | 711 | 138.3 |
| C | 14 | 238 | 133742 | 802.1 | 711 | 717 | 165.8 |
| C | 10 | 22 | 85356 | 510.35 | 711 | 717 | 165.8 |
| C | 3 | 233 | 33072 | 195.09 | 711 | 717 | 165.8 |
| D | 7 | 80 | 1560403 | 9446.51 | 692 | 672 | 165.1 |
| D | 7 | 238 | 1204388 | 7290.3 | 692 | 672 | 165.1 |
| D | 8 | 195 | 454551 | 2748.92 | 692 | 672 | 165.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

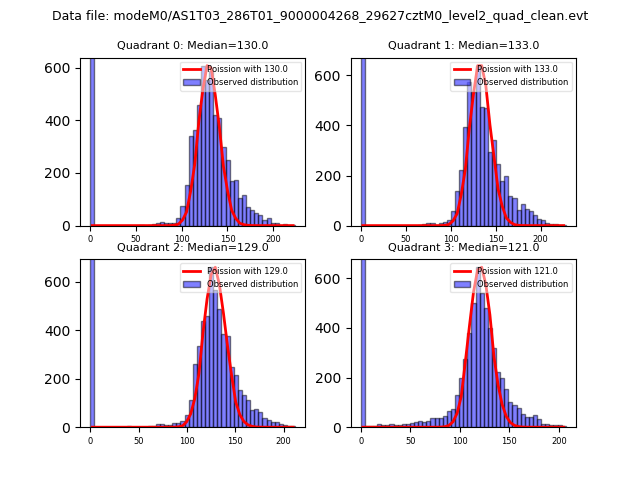

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

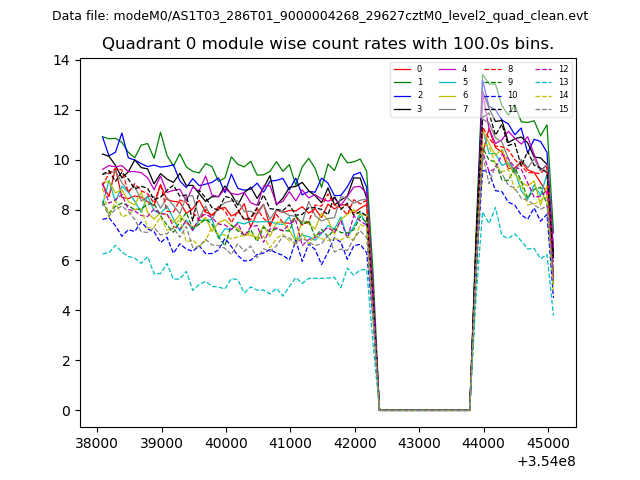

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

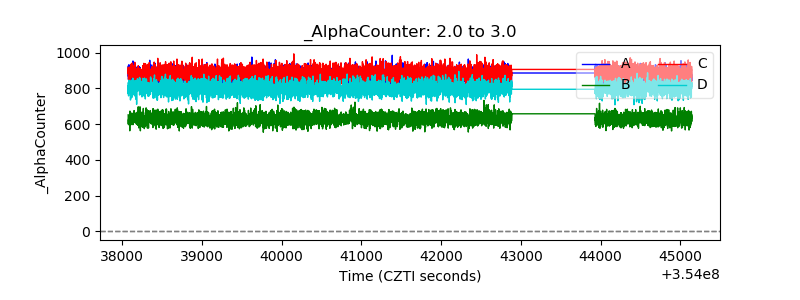

| Alpha Counter |  |
| _CPM_Rate |  |

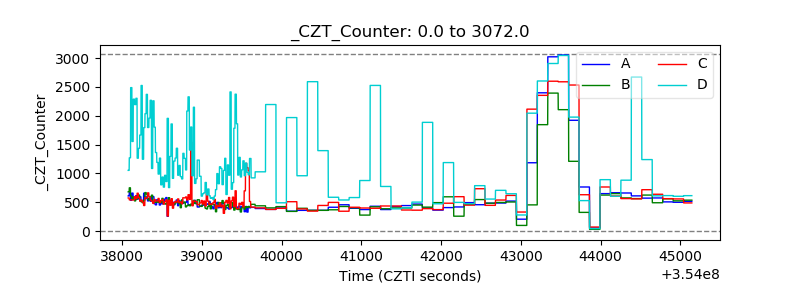

| CZT Counter |  |
| +2.5 Volts monitor |  |

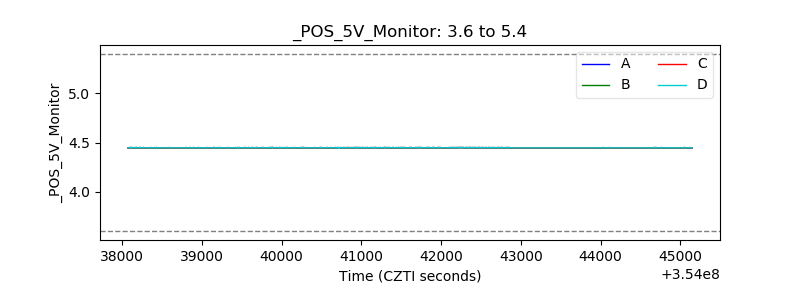

| +5 Volts monitor |  |
| _ROLL_ROT |  |

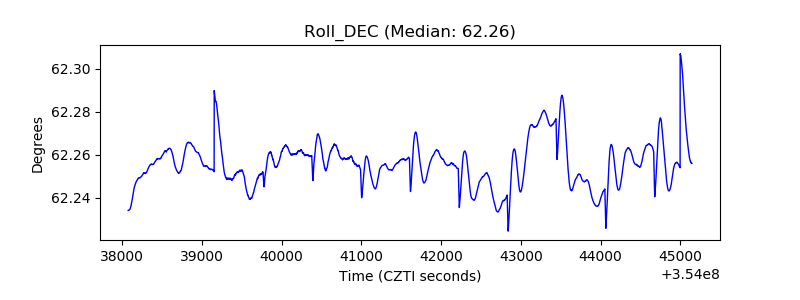

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
